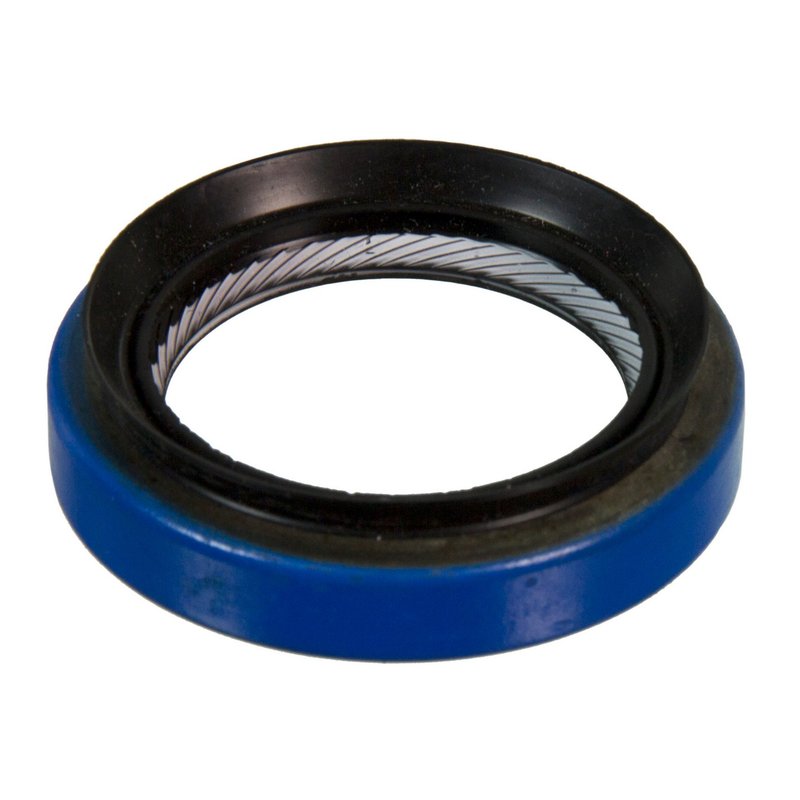

National 710835 Transfer Case Output Shaft Seal - Front or Rear
OE Quality 60-Day Returns
National

National 710835 Transfer Case Output Shaft Seal - Front or Rear

Brand National 710835
Position Rear
Helix Type Counter-Clockwise-Spiral Lip Design
Housing Bore (Inch) 2.756
Housing Bore (MM) 70.000
Inside Diameter 1.969
Inside Diameter 50.000
Material Fluoro-Elastomer
Outside Diameter 2.764
Outside Diameter 70.200
Outside Diameter (Inch) 2.764
Outside Diameter (mm) 70.200
Overall Width with Side Lip (MM) 17.400
Overall Width with Side Lip (Inch) 0.685
Part Description Oil Seal
Sealing Material Fluoro-Elastomer
Series 710800
Shaft (Inch) 1.969
Shaft (MM) 50.000
Thickness 0.453
Thickness 11.500
Type 47
Unit of Dimension Metric
Width (Inch) 0.453
Width (mm) 11.500
Fits Jeep and Dodge · 32 vehicles

Fluoro-elastomer seal. Helps resist heat and wear for dependable sealing performance.

Counter-clockwise spiral lip. Promotes effective oil control in rotating applications.

Oil seal. A transfer case sealing solution from National.

Cross-references National 710835, 5013019AA and 05013019AA for the same application. See all 5.

$18.70Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $18.70
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Transfer Case Output Shaft Seal options

Transfer Case Output Shaft Seal for Jeep and Dodge

The National 710835 transfer case output shaft seal is a metric oil seal built for rear and front transfer case applications where a precise sealing surface is critical. It uses a fluoro-elastomer sealing material and a counter-clockwise spiral lip design to help maintain a consistent seal in demanding 4WD driveline service.

National has supplied sealing solutions for more than 75 years, and this seal reflects that focus on fit, material selection, and application coverage. The 710835 is a direct-fit style replacement for select Jeep Grand Cherokee, Jeep Commander, Jeep Liberty, and Dodge Ram transfer case applications.

Key Features

  • Part number: National 710835
  • Transfer case output shaft seal / oil seal
  • Fluoro-elastomer sealing material for driveline sealing applications
  • Counter-clockwise spiral lip design
  • Metric dimensions for accurate housing and shaft fit
  • Outside diameter: 2.764 in. / 70.200 mm
  • Inside diameter: 1.969 in. / 50.000 mm
  • Width: 0.453 in. / 11.500 mm
  • Overall width with side lip: 0.685 in. / 17.400 mm
  • Housing bore: 2.756 in. / 70.000 mm

Detailed Description

The National 710835 is a transfer case output shaft seal engineered for vehicles using Magna and New Process transfer case designs. Its fluoro-elastomer construction is selected for sealing performance in drivetrain environments, while the spiral lip profile supports controlled sealing at the output shaft interface. This seal is specified for rear applications on 2005-2010 Jeep Grand Cherokee, 2006-2010 Jeep Commander, and 2008-2012 Jeep Liberty, plus front applications on the 2004 Jeep Grand Cherokee and 1999-2004 Jeep Grand Cherokee. It also applies to select Dodge Ram 1500 and Ram 2500 transfer case setups.

This part cross-references Mopar 5013019AA and 05013019AA for the same application.

What This Seal Helps Address

  • Transfer case fluid seepage at the output shaft
  • Oil leakage around the transfer case housing bore
  • Seal wear from driveline rotation and heat exposure
  • Loss of sealing integrity in 4WD transfer case service
  • Maintenance replacement for worn Jeep Grand Cherokee, Jeep Commander, Jeep Liberty, and Dodge Ram transfer case seals

Installation Notes and Tips

Verify the transfer case type, shaft diameter, housing bore, and position before installation. This seal is listed for rear and front positions depending on the vehicle and transfer case configuration, including New Process 245J, 247J, 241, and 147J applications. Clean the bore and shaft sealing surface thoroughly, and inspect for grooves, corrosion, or damage that could affect sealing performance. Confirm the part number 710835 against the original seal dimensions before assembly.

Quality Assurance

National has a long history in sealing technology and continues to develop sealing solutions for modern vehicles. The 710835 is built as a metric oil seal with application-specific dimensions and material selection for transfer case service.

This part fits 32 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypePositionNotes
2012JeepLiberty4WDRearFull Time 4WD; with Magna 1522 Transfer Case; 2 Speed
2012JeepLiberty4WDRearFull Time 4WD; with Magna 3022 Transfer Case; 2 Speed
2011JeepLiberty4WDRearFull Time 4WD; with Magna 1522 Transfer Case; 2 Speed
2011JeepLiberty4WDRearFull Time 4WD; with Magna 3022 Transfer Case; 2 Speed
2010JeepCommander4WDRearFull Time 4WD with New Process 245J 2 Speed Transfer Case
2010JeepGrand CherokeeAWDRearFull Time 4WD with New Process 245J 2 Speed Transfer Case
2010JeepLiberty4WDRearFull Time 4WD; with Magna 1522 Transfer Case; 2 Speed
2010JeepLiberty4WDRearFull Time 4WD; with Magna 3022 Transfer Case; 2 Speed
2009JeepCommander4WDRearFull Time 4WD with New Process 245J 2 Speed Transfer Case
2009JeepGrand CherokeeAWDRearFull Time 4WD with New Process 245J 2 Speed Transfer Case
2009JeepLiberty4WDRearFull Time 4WD; with Magna 1522 Transfer Case; 2 Speed
2009JeepLiberty4WDRearFull Time 4WD; with Magna 3022 Transfer Case; 2 Speed
2008JeepCommander4WDRearFull Time 4WD with New Process 245J 2 Speed Transfer Case
2008JeepGrand CherokeeAWDRearFull Time 4WD with New Process 245J 2 Speed Transfer Case
2008JeepLiberty4WDRearFull Time 4WD; with Magna 1522 Transfer Case; 2 Speed
2008JeepLiberty4WDRearFull Time 4WD; with Magna 3022 Transfer Case; 2 Speed
2007JeepCommander4WDRearFull Time 4WD with New Process 245J 2 Speed Transfer Case
2007JeepGrand CherokeeAWDRearFull Time 4WD with New Process 245J 2 Speed Transfer Case
2006JeepCommander4WDRearFull Time 4WD with New Process 245J 2 Speed Transfer Case
2006JeepGrand CherokeeAWDRearFull Time 4WD with New Process 245J 2 Speed Transfer Case
2005DodgeRam 15004WDRearCompatible with New Process 241 Transfer Case Part Time 4WD 2 Speed.
2005JeepGrand CherokeeAWDRearFull Time 4WD with New Process 245J 2 Speed Transfer Case
2004DodgeRam 15004WDRearCompatible with New Process 241 Transfer Case Part Time 4WD 2 Speed.
2004JeepGrand CherokeeAWDFrontFits Full Time 4WD vehicles with New Process 147J Transfer Case and 1 Speed.
2004JeepGrand CherokeeAWDFrontFull Time 4WD with New Process 247J Transfer Case 2 Speed
2003JeepGrand CherokeeAWDFrontFull Time 4WD with New Process 247J Transfer Case 2 Speed
2002JeepGrand CherokeeAWDFrontFull Time 4WD with New Process 247J Transfer Case 2 Speed
2001JeepGrand CherokeeAWDFrontFull Time 4WD with New Process 247J Transfer Case 2 Speed
2000DodgeRam 25004WDRearwith New Process 241 Transfer Case; with Part Time 4WD; without Boot; 2 Speed
2000JeepGrand CherokeeAWDFrontFull Time 4WD with New Process 247J Transfer Case 2 Speed
1999DodgeRam 25004WDRearwith New Process 241 Transfer Case; with Part Time 4WD; without Boot; 2 Speed
1999JeepGrand CherokeeAWDFrontFull Time 4WD with New Process 247J Transfer Case 2 Speed
Directly replaces or cross-references 5 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
National — 7108355013019AA05013019AA05013019AB5013019AB
