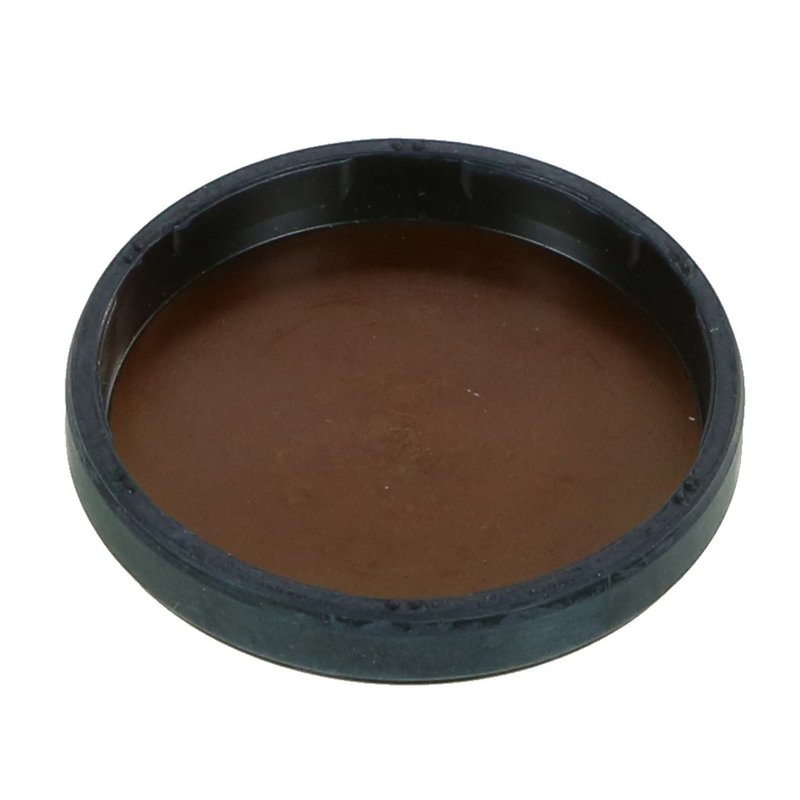

National 710861 Engine Camshaft Plug - Rear

Engine Camshaft Plug for Toyota and Lexus

National 710861 is a metric camshaft end cap oil seal built with fluoro-elastomer material for sealing performance in rear camshaft applications. It is specified for a range of Toyota and Lexus engines, including Tacoma, Tundra, 4Runner, T100, LS400, GS400, and SC400 applications.

Key Features

• Part number 710861 for direct reference and ordering
• Camshaft end cap / oil seal design
• Fluoro-elastomer construction for sealing durability
• Metric dimensions: 50.200 mm outside diameter and 8.000 mm width
• Housing bore: 50.000 mm
• Rear position fitment for listed Toyota and Lexus vehicles
• Cross-reference part numbers: 052-4018, 11188-62010

Detailed Description

National 710861 is an engine camshaft plug identified as a camshaft end cap oil seal. The seal measures 50.200 mm outside diameter, 8.000 mm width, and fits a 50.000 mm housing bore. Its fluoro-elastomer material is selected for sealing applications where resistance to heat and engine oil exposure matters. This part number 710861 is listed for rear camshaft positions on 1990-2004 Toyota and Lexus vehicles, including Toyota Tacoma, Toyota Tundra, Toyota 4Runner, Toyota T100, Lexus LS400, Lexus GS400, and Lexus SC400.

Common Uses

• Replacing a leaking rear camshaft end cap seal
• Addressing oil seepage at the back of the cylinder head
• Restoring proper sealing after camshaft service
• Correcting oil residue around the rear camshaft area
• Supporting maintenance on Toyota Tacoma, Tundra, and 4Runner engines

Installation Notes and Tips

Verify the housing bore and outside diameter before installation to confirm the seal matches the engine opening. Clean the sealing surface thoroughly and inspect the camshaft end area for wear, scoring, or debris that could affect sealing. Confirm rear-position application and compare the old seal to part number 710861 before installation. For fitment verification, match the vehicle year, make, model, and rear camshaft location exactly as listed.

Quality Assurance

National has a long history in sealing solutions and develops components for modern vehicle service needs. This part cross-references 052-4018 and 11188-62010 for the same application.
