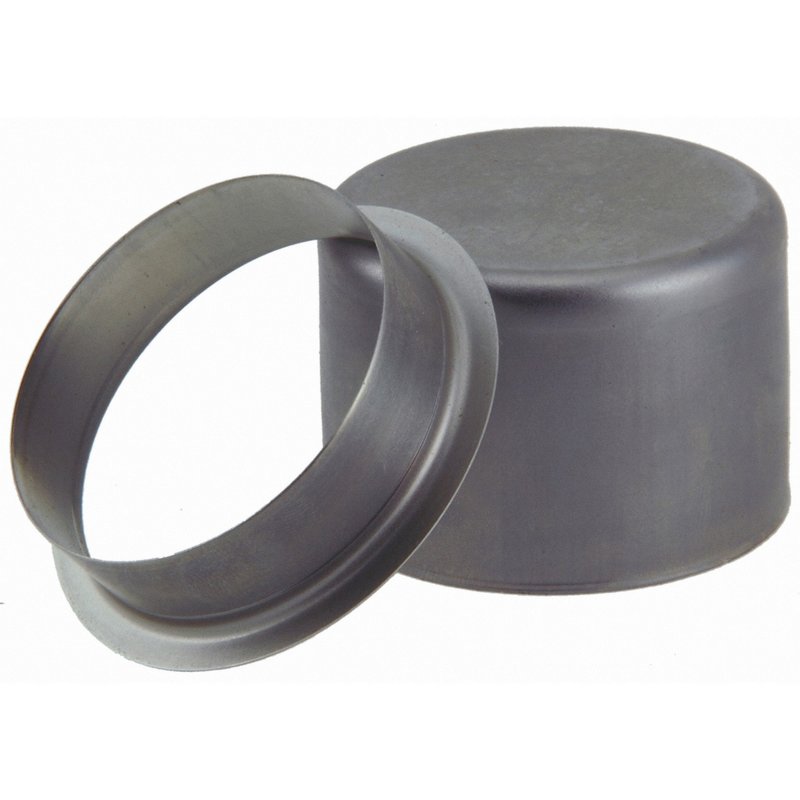

National 99138 Differential Pinion Repair Sleeve - Front Outer or Rear Outer

National 99138 Differential Pinion Repair Sleeve Overview

The National 99138 differential pinion repair sleeve is engineered to restore the integrity of worn or damaged pinion shafts in a variety of vehicles. Crafted from durable stainless steel, this repair sleeve is designed for precise fitment and long-lasting performance in driveline and axle applications.

• Flanged outside diameter: 1.638 inches (41.610 mm)
• Installation depth: 0.813 inches (20.650 mm)
• Overall width: 0.625 inches (15.880 mm)
• Shaft size compatibility: 1.371 to 1.377 inches (34.820 to 34.980 mm)
• Width on shaft: 0.500 inches (12.700 mm)
• Material: corrosion-resistant stainless steel

Precision Engineering and Material Specifications

The National 99138 repair sleeve is manufactured from stainless steel to provide resistance against corrosion and wear in demanding driveline environments. Its flanged outside diameter of 1.638 inches ensures a secure fit, while the installation depth of 0.813 inches allows for proper seating on the pinion shaft. The sleeve accommodates shaft sizes ranging from 1.371 to 1.377 inches, making it suitable for precise repair applications. With an overall width of 0.625 inches and a width on shaft of 0.500 inches, this sleeve maintains the correct alignment and support needed for differential pinion shafts.

Compatible Vehicles and Applications

This differential pinion repair sleeve is compatible with a wide range of vehicles, including Chevrolet, Dodge, Ford, GMC, Isuzu, Jeep, Mercury, Pontiac, Saab, and Saturn models. It fits specific models such as the Chevrolet Blazer, C1500, C2500, C3500, and Silverado 1500, as well as Ford F-100, F-150, F-250, F-350, and Mustang. Other compatible vehicles include the Dodge Dakota and Ram 1500, Jeep Liberty and K5 Blazer, Pontiac Pursuit, Saab 9-3 and 9-5, and Saturn Ion and LS. The National 99138 is designed to meet the repair needs of these vehicles’ driveline and axle systems.

Common Repair Uses for the National 99138 Sleeve

• Restoring worn or damaged differential pinion shafts
• Correcting shaft wear that causes improper gear alignment
• Eliminating pinion shaft play or looseness
• Extending the service life of differential components
• Preventing further damage to axle and driveline parts

Installation Notes and Tips

Ensure the pinion shaft is clean and free of debris before installing the repair sleeve. The installation depth of 0.813 inches should be carefully observed to achieve proper seating. Use appropriate tools to press the sleeve onto the shaft without causing damage. Verify shaft size compatibility within the 1.371 to 1.377 inch range to ensure a secure fit. Proper installation will help maintain differential performance and reduce the risk of premature wear.

Quality Assurance and Warranty Information

National manufactures the 99138 differential pinion repair sleeve to meet industry standards for durability and precision. Constructed from stainless steel, this sleeve offers corrosion resistance and reliable performance in demanding automotive applications. While specific warranty details are not provided, National products are generally backed by quality control processes to ensure consistent fit and function.
