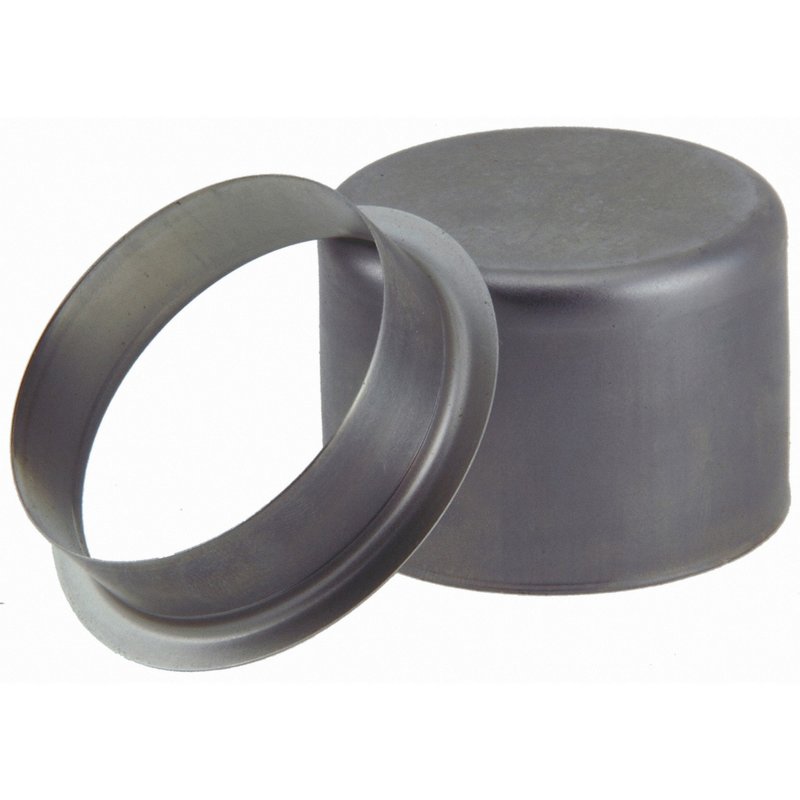

National 99193 Differential Pinion Repair Sleeve - Front, Front Outer or Rear Outer

National 99193 Differential Pinion Repair Sleeve Overview

The National 99193 Differential Pinion Repair Sleeve is engineered for precision fitment and durability in driveline applications. Designed to restore proper shaft dimensions, this stainless steel repair sleeve is compatible with a wide range of vehicles including Chevrolet, Ford, GMC, Jeep, and Cadillac models.

• Flanged outside diameter: 2.219 inches (56.360 mm)
• Installation depth: 1.000 inch (25.400 mm)
• Overall width: 0.688 inch (17.480 mm)
• Width on shaft: 0.563 inch (14.300 mm)
• Fits shaft sizes between 1.934 and 1.940 inches (49.120 - 49.280 mm)
• Constructed from corrosion-resistant stainless steel

Durable Stainless Steel Construction and Precise Dimensions

This repair sleeve is manufactured from high-quality stainless steel to provide long-lasting resistance against wear and corrosion in demanding driveline environments. The flanged outside diameter of 2.219 inches ensures a secure fit, while the 1-inch installation depth allows for proper seating on the differential pinion shaft. With an overall width of 0.688 inches and a shaft width of 0.563 inches, the sleeve maintains the correct shaft geometry to restore optimal differential performance.

Compatible Vehicle Applications

The National 99193 repair sleeve is compatible with a broad range of makes and models, including Buick, Cadillac, Chevrolet, Dodge, Ford, GMC, Hummer, Isuzu, Jaguar, Jeep, Lincoln, Mercury, Oldsmobile, and Pontiac. It fits specific models such as the Chevrolet Silverado 1500, Ford F-150, Jeep Wrangler, Cadillac Escalade, and GMC Sierra 2500, among others. This part is ideal for vehicles requiring a precise differential pinion shaft repair sleeve within the specified shaft size range.

Common Uses and Repair Applications

• Restoring worn or damaged differential pinion shafts
• Correcting shaft diameter to prevent differential gear misalignment
• Eliminating excessive play or vibration in the driveline
• Extending the service life of differential components
• Facilitating proper bearing and seal fitment on the pinion shaft

Installation Notes and Tips

Ensure the differential pinion shaft is clean and free of debris before installation. The sleeve should be pressed onto the shaft to the specified installation depth of 1 inch for optimal fit. Verify shaft diameter compatibility within the 1.934 to 1.940 inch range to avoid improper fitment. Use appropriate tools to avoid damaging the sleeve or shaft during installation.

Quality Assurance and Warranty

National manufactures the 99193 Differential Pinion Repair Sleeve to meet stringent quality standards for driveline components. Constructed from stainless steel, this part offers reliable corrosion resistance and dimensional stability. While specific warranty details are not provided, National products typically adhere to industry standards for durability and performance in automotive repair applications.
