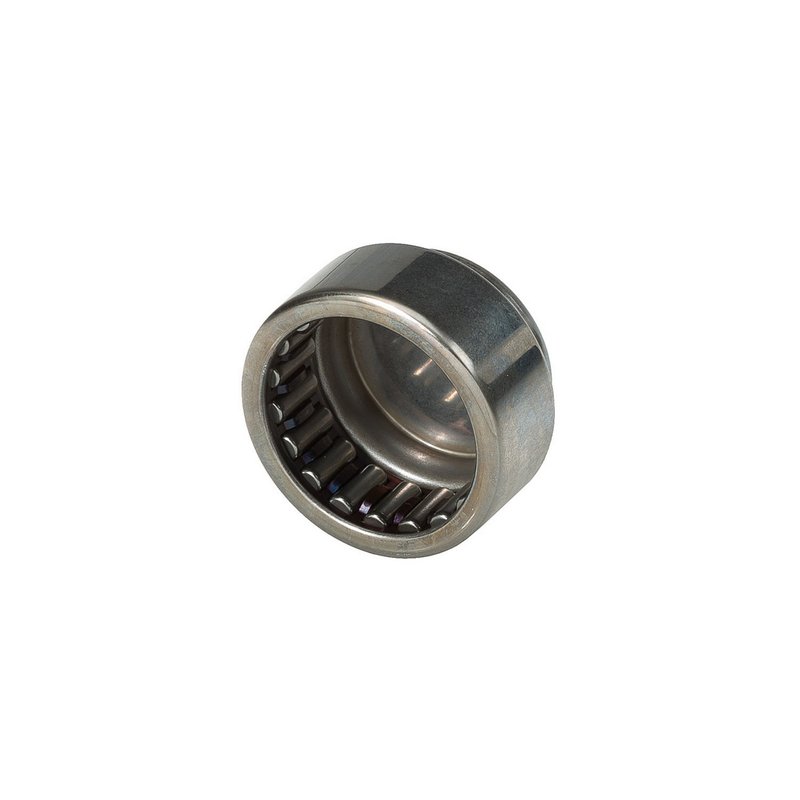

National FC-66561 Transfer Case Input Shaft Pilot Bearing

Overview of National FC-66561 Transfer Case Input Shaft Pilot Bearing

The National FC-66561 is a precision-engineered transfer case input shaft pilot bearing designed for a range of GM and other popular truck and SUV models. This needle bearing ensures smooth operation and reliable support for the input shaft, contributing to the overall durability of your vehicle's transfer case system.

• Needle bearing type for reduced friction and enhanced durability
• Bore diameter of 1.1250 inches (28.575 mm) for precise shaft fitment
• Outside diameter of 1.5000 inches (38.1 mm) with tight housing diameter tolerances
• Width of 0.8700 inches (22.098 mm) for optimal load distribution
• Compatible with multiple makes and models including Chevrolet Silverado, GMC Sierra, Jeep Grand Cherokee, and Dodge Ram

Detailed Product Description and Specifications

The National FC-66561 transfer case input shaft pilot bearing is manufactured to exacting standards, featuring a bore diameter of 1.1250 inches (28.575 mm) that fits shafts with diameters ranging from 1.1245 to 1.1250 inches. The outside diameter measures 1.5000 inches (38.1 mm), with housing diameter tolerances between 1.4995 and 1.5005 inches (38.0873 to 38.1127 mm), ensuring a secure and stable fit within the transfer case housing. The bearing width of 0.8700 inches (22.098 mm) provides sufficient surface area to support the input shaft under various load conditions. This needle bearing type is designed to reduce friction and wear, improving the longevity and performance of the transfer case assembly.

Compatible Vehicles and Applications

This transfer case input shaft pilot bearing is compatible with a wide range of vehicles, including but not limited to:

• Chevrolet Silverado 1500, 2500, and 2500 HD
• GMC Sierra 1500, 2500, and 2500 HD
• Jeep Grand Cherokee, Wrangler, and Liberty
• Dodge Ram 1500 and 2500
• Buick, Cadillac, Chrysler, Hummer, Isuzu, Mitsubishi, Oldsmobile, Saab models as listed

It is specifically designed for transfer case applications requiring a durable input shaft pilot bearing to maintain proper shaft alignment and reduce wear.

Common Issues Addressed by the FC-66561 Bearing

• Excessive input shaft play causing transfer case noise or vibration
• Premature bearing wear leading to transfer case input shaft misalignment
• Increased friction resulting in transfer case overheating or reduced efficiency
• Transfer case input shaft binding or rough operation
• Failure of original pilot bearing due to contamination or fatigue

Installation Notes and Tips

• Ensure the transfer case housing bore is clean and free of debris before installation
• Verify shaft and housing dimensions to confirm compatibility with the FC-66561 bearing
• Use appropriate tools to press the bearing evenly into the housing without damage
• Apply recommended lubrication to the bearing and shaft during assembly
• Inspect the transfer case input shaft for wear or damage prior to bearing installation

Quality Assurance and Warranty Information

National bearings are manufactured to meet industry standards for durability and performance. The FC-66561 transfer case input shaft pilot bearing undergoes rigorous quality control to ensure dimensional accuracy and material integrity. While specific warranty details may vary, National typically offers coverage against manufacturing defects to provide confidence in the product's reliability.
