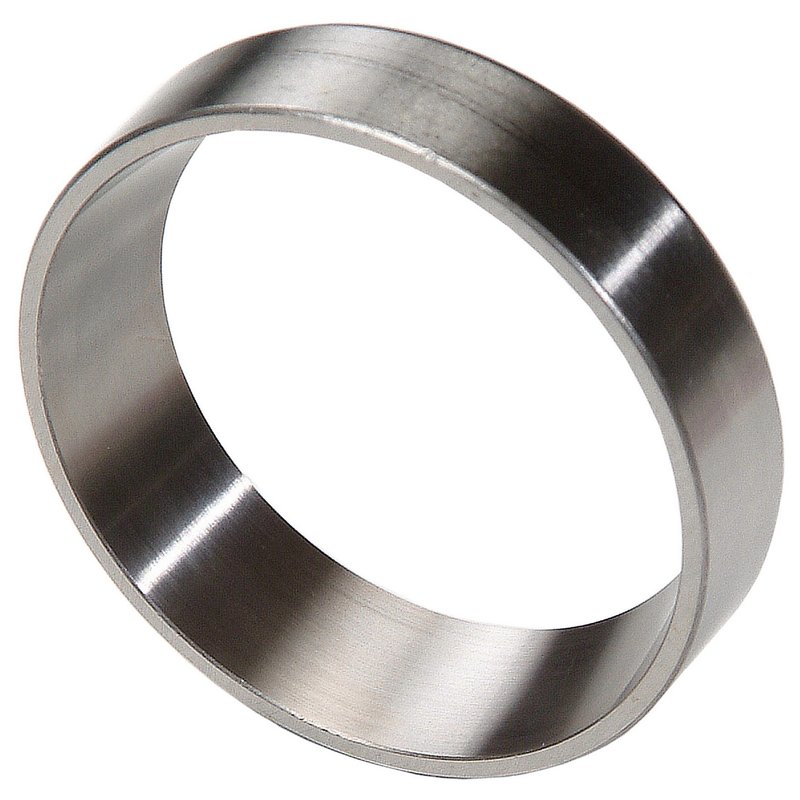

National JL69310 Automatic Transmission Output Shaft Race

Overview of National JL69310 Automatic Transmission Output Shaft Race

The National JL69310 is a precision-engineered automatic transmission output shaft race designed to meet the demanding requirements of various vehicle makes and models. This taper bearing cup ensures reliable performance and durability in transmission systems for vehicles such as Buick, Chevrolet, Ford, and Toyota.

• Cup Bore Diameter: 2.4803 inches (63.0000 mm)
• Cup Length: 0.5315 inches (13.5000 mm)
• Cup Radius: 0.0500 inches (1.2700 mm)
• Part Type: Taper bearing cup
• Part Number: JL69310

Detailed Product Description

The National JL69310 automatic transmission output shaft race is manufactured to precise specifications, featuring a cup bore diameter of 2.4803 inches (63 mm) and a cup length of 0.5315 inches (13.5 mm). The taper bearing cup design supports smooth rotation and reduces wear on the transmission output shaft, contributing to the overall longevity and efficiency of the transmission assembly. The cup radius of 0.0500 inches (1.27 mm) is engineered to provide optimal seating and load distribution within the transmission system.

Compatible Vehicles and Applications

This transmission bearing race is compatible with a wide range of vehicles, including but not limited to Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GMC, Isuzu, Jeep, Kia, Lincoln, Maserati, Mazda, Mercedes-Benz, Mercury, Mitsubishi, Oldsmobile, Plymouth, Pontiac, Ram, Saab, Saturn, Suzuki, and Toyota models. It is suitable for use in models such as the Chevrolet Blazer, Ford F-150, Jeep Wrangler, Toyota Camry, and many others requiring a 2.48-inch bore taper bearing cup.

Common Issues Addressed by JL69310

• Wear and tear on the automatic transmission output shaft bearing surface
• Excessive play or looseness in the transmission output shaft assembly
• Noise or vibration caused by worn or damaged bearing cups
• Transmission shifting problems related to bearing failure
• Preventing premature transmission component failure due to bearing degradation

Installation Notes and Tips

When installing the National JL69310 bearing cup, ensure the transmission output shaft and surrounding components are clean and free of debris. Proper seating of the taper bearing cup is critical to avoid misalignment and premature wear. Use appropriate tools to press the cup into place without damaging the bearing surface. Refer to the vehicle’s service manual for torque specifications and installation procedures specific to the make and model.

Quality Assurance and Warranty

National manufactures the JL69310 to meet industry standards for durability and performance. While specific warranty details are not provided, National parts are generally backed by quality control processes to ensure fitment and function. For warranty information, consult the original equipment manufacturer or authorized distributor.
