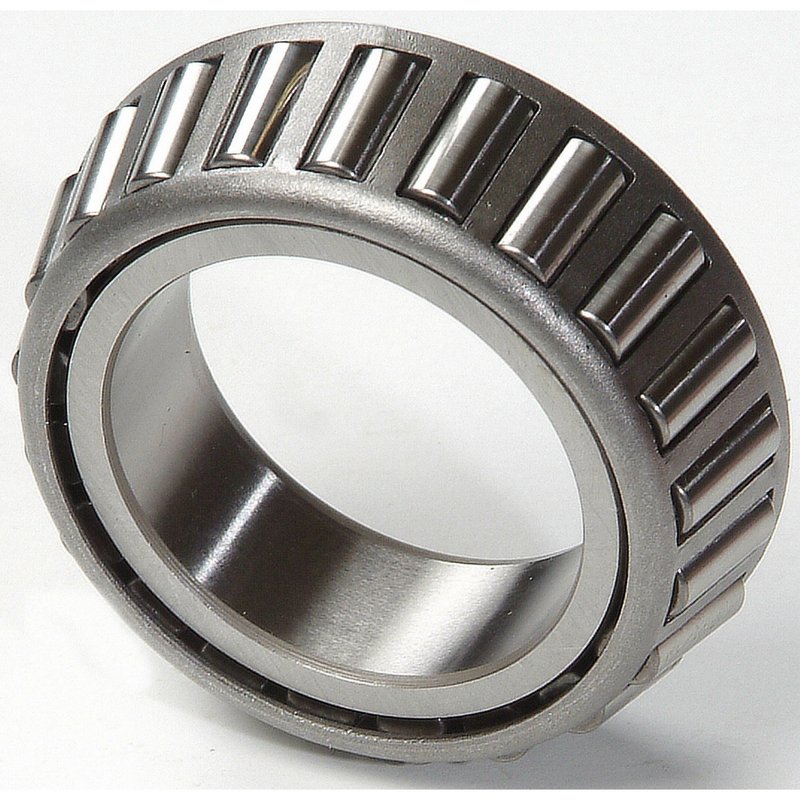

National M86649 Transfer Case Output Shaft Bearing

Transfer Case Output Shaft Bearing for OE-Style Repair

National M86649 is a taper bearing cone built for transfer case output shaft service and other drivetrain applications that call for this size. It uses premium-grade steel with crowned raceways and rollers to promote even load distribution under operating load.

Fits 1980-2018 vehicle applications across Mercedes-Benz G-Class, Hyundai Santa Fe, Chevrolet Camaro, Ford Ranger, Jeep Wrangler, and many others where the listed bearing dimensions and position match.

Key Features

• Taper bearing cone for transfer case output shaft and related drivetrain positions
• Premium-grade steel construction for strength and wear resistance
• Crowned raceways and rollers for more even load distribution
• Cone bore: 1.1875 in. / 30.1630 mm
• Cone length: 0.8438 in. / 21.4330 mm
• Cone radius: 0.0620 in. / 1.5750 mm
• National part number M86649 for direct catalog lookup

Detailed Description

National M86649 is a taper bearing cone used in transfer case output shaft bearing applications and other drivetrain assemblies that require the same dimensions. The bearing is manufactured from premium-grade steel and features crowned raceways and rollers to help distribute load evenly across the contact surfaces. That construction supports consistent operation in applications such as Mercedes-Benz G550 front outer, Hyundai Santa Fe rear outer, Chevrolet Camaro rear outer, and Ford Ranger front outer fitments listed in the catalog.

This part cross-references FM86649 and Y86649 for the same application. Use the part number M86649 when verifying catalog match, and confirm the bearing dimensions, position, and axle or transmission notes before installation.

What It Helps Address

• Noise from a worn or rough transfer case output shaft bearing
• Excessive play at the bearing location
• Heat and wear caused by damaged rollers or raceways
• Drivetrain vibration related to bearing deterioration
• Service replacement for specified front outer and rear outer applications

Installation Notes and Tips

Verify the cone bore, cone length, and cone radius against the original bearing before installation. Match the vehicle year, make, model, and position exactly, since this bearing is used in multiple drivetrain locations including front outer, rear outer, front, rear, and rear inner applications. Clean the housing and inspect the mating race, shaft, and seals for wear before assembly. Proper bearing preload and lubrication are important for long service life.

Quality Assurance

National manufactures this taper bearing cone with premium-grade steel and crowned raceways and rollers to support even load distribution. Part number M86649 is cataloged for a wide range of OE-style drivetrain applications.
