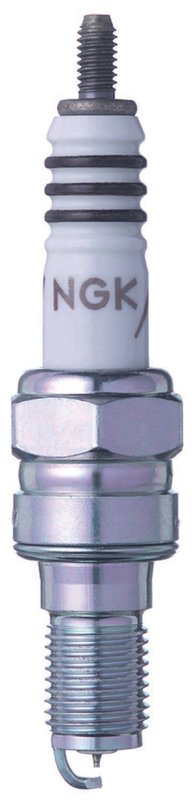

NGK 3797 Spark Plug

NGK Iridium IX Spark Plug Overview

The NGK Iridium IX Spark Plug 3797 is engineered for reliable ignition performance and durability. Designed with advanced materials and precise specifications, this spark plug supports efficient combustion in a variety of vehicle applications.

• Iridium center electrode tip for enhanced durability and consistent spark
• Taper cut ground electrode tip for improved ignitability
• Copper core center electrode for optimal conductivity
• Standard ground configuration with nickel ground electrode core
• Pre-gap size of 0.036 inches for precise spark gap
• Flat seat type with 0.75 inch reach and 10 mm thread diameter
• Electrical terminal type: stud with 5/8 inch hex size
• Manufacturer heat range rating of 8 for balanced heat dissipation
• Resistance value of 5000 ohms to reduce electrical noise

Iridium IX Spark Plug Product Line Details

The NGK Iridium IX Spark Plug line is designed to provide improved ignition performance and longer service life compared to conventional spark plugs. Featuring an iridium center electrode tip, these plugs offer enhanced wear resistance and stable spark delivery. The 3797 part number is part of this line, combining iridium technology with a copper core electrode to optimize conductivity and combustion efficiency.

Technical Description and Specifications

This NGK spark plug features a copper core center electrode with an iridium tip, which ensures a strong and consistent spark while maintaining durability under high temperatures. The taper cut ground electrode tip improves ignitability by focusing the spark energy. The single ground electrode is made from nickel, providing a balance of strength and conductivity. With a pre-gap size of 0.036 inches and a flat seat design, the plug fits securely and maintains optimal spark gap for efficient combustion. The 0.75 inch reach and 10 mm thread diameter make it compatible with various vehicle engines requiring these specifications. The stud-type electrical terminal and 5/8 inch hex size facilitate straightforward installation and removal.

Common Applications and Problem Solving

• Helps resolve misfires caused by worn or fouled spark plugs
• Improves cold start performance in vehicles with ignition issues
• Reduces engine hesitation and rough idling
• Supports fuel efficiency by ensuring complete combustion
• Minimizes electrical interference with a 5000 ohm resistance rating

Installation Notes and Tips

Before installation, verify the spark plug gap matches the vehicle manufacturer’s specifications, although this plug comes pre-gapped at 0.036 inches. Use a torque wrench to tighten the spark plug to the recommended torque to avoid damage to the threads or seat. The 5/8 inch hex size allows compatibility with standard spark plug sockets. Ensure the spark plug is properly seated with the flat seat to maintain a secure fit and optimal sealing.

Quality Assurance and Warranty

NGK spark plugs are manufactured to meet strict quality standards, ensuring consistent performance and reliability. The Iridium IX Spark Plug 3797 undergoes rigorous testing for heat range, electrode wear, and electrical resistance. While specific warranty details are not provided here, NGK typically offers coverage against manufacturing defects. Refer to NGK’s official documentation for warranty terms applicable to this part.
