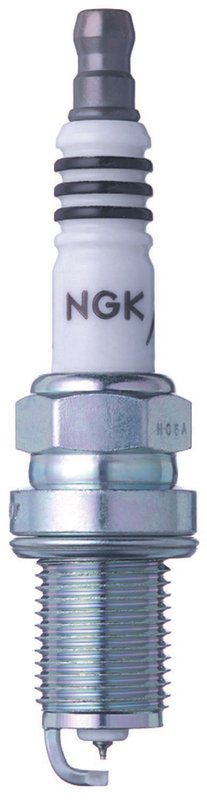

NGK 5693 Spark Plug

NGK Iridium IX Spark Plug 5693 Overview

The NGK Iridium IX Spark Plug 5693 is engineered for reliable ignition performance in a range of vehicles including Buick, Chevrolet, Ford, Lincoln, Mercury, Oldsmobile, Pontiac, Rolls-Royce, and Saturn models. Designed with advanced materials and precise specifications, this spark plug supports efficient combustion and consistent engine operation.

• Iridium center electrode tip for enhanced durability and ignition
• Copper core center electrode for improved conductivity
• Taper cut ground electrode tip for optimized spark exposure
• Standard ground configuration with a single nickel ground electrode
• Non-removable nut electrical terminal type for secure connection
• Flat seat type with 14mm thread diameter and 0.75" reach
• Pre-gap size of 0.032" for precise spark gap
• Hex size of 5/8" for standard installation tools
• Manufacturer heat range of 4 suitable for moderate engine temperatures
• Insulator height of 50.50mm for proper fitment

Iridium IX Spark Plug Product Line Details

The NGK Iridium IX Spark Plug line is designed to provide enhanced ignition performance through the use of iridium, a highly durable and heat-resistant material. This product line focuses on delivering consistent spark and improved combustion efficiency, which can contribute to smoother engine operation and potentially better fuel economy. The 5693 part number is part of this line, combining iridium technology with a copper core electrode to balance conductivity and longevity.

Technical Description and Attributes

The NGK 5693 spark plug features a copper core center electrode with an iridium tip, which offers a fine electrode for precise spark generation and long service life. The ground electrode is made from nickel with a taper cut design, enhancing spark exposure and combustion efficiency. The spark plug has a flat seat type and a thread diameter of 14mm with a reach of 0.75 inches, ensuring compatibility with specified vehicle engines. The pre-gap is set at 0.032 inches, optimized for ignition performance. The electrical terminal is a non-removable nut type, providing a secure and stable connection. With a manufacturer heat range of 4, this spark plug is suitable for engines operating under moderate heat conditions.

Compatible Vehicles and Applications

• Buick Achieva, Calais, Skylark
• Chevrolet Camaro, Corvette, Firebird, Grand Am, Grand Prix
• Ford F-100, Thunderbird
• Lincoln Continental, Mark series
• Mercury Cougar
• Oldsmobile Cutlass Calais, Cutlass Supreme
• Pontiac Grand Prix, Firebird
• Rolls-Royce Corniche IV, Corniche S, Silver Spirit, Silver Spur, Flying Spur
• Saturn SL, SL1, SW1

Common Issues Addressed by NGK 5693 Spark Plug

• Misfiring or rough engine idle
• Poor fuel efficiency due to incomplete combustion
• Difficulty starting the engine
• Reduced engine power and acceleration
• Increased emissions from inefficient ignition

Installation Notes and Tips

When installing the NGK Iridium IX Spark Plug 5693, ensure the spark plug gap is set to the specified pre-gap of 0.032 inches if adjustment is necessary. Use a 5/8 inch socket for proper torque application and avoid over-tightening to prevent thread damage. Confirm compatibility with your vehicle’s engine specifications, especially thread diameter and reach, to ensure proper fitment. It is recommended to replace spark plugs in sets to maintain consistent engine performance.

Quality Assurance and Warranty

NGK spark plugs are manufactured to meet strict quality standards, ensuring reliable performance and durability. The Iridium IX Spark Plug 5693 undergoes rigorous testing for heat resistance and electrical conductivity. While specific warranty details are not provided here, NGK typically offers coverage against manufacturing defects. Refer to NGK’s official documentation or your supplier for warranty terms.
