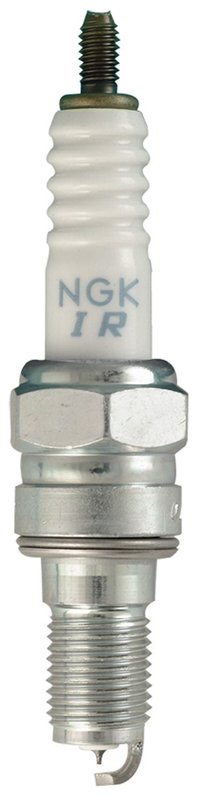

NGK 5766 Spark Plug

NGK Laser Iridium Spark Plug Overview

The NGK Laser Iridium Spark Plug 5766 is engineered for reliable ignition performance and durability. Designed with advanced materials and precise specifications, this spark plug supports efficient combustion in a variety of vehicle applications.

• Iridium center electrode tip for enhanced durability and consistent spark
• Taper cut ground electrode tip design for improved ignition
• Copper core center electrode for optimal conductivity
• Standard ground configuration with a single nickel ground electrode
• Flat seat type with a 5/8 inch hex size for secure installation
• Pre-gap size of 0.036 inches for precise spark gap
• Manufacturer heat range rating of 9 for specific engine requirements
• Thread diameter of 10.00 mm and reach of 0.75 inches
• Electrical terminal type: stud

Detailed Product Description

The NGK Laser Iridium Spark Plug 5766 features a copper core center electrode with an iridium tip, which provides a stable and efficient spark while maintaining electrode longevity. The taper cut ground electrode tip enhances ignition by allowing better flame kernel growth. The single nickel ground electrode is designed with a standard configuration to ensure compatibility with many engine designs. This spark plug has a flat seat type and a 5/8 inch hex size, facilitating proper sealing and ease of installation. With a pre-gap size of 0.036 inches and a manufacturer heat range of 9, it is suited for engines requiring a cooler plug to prevent overheating. The 10 mm thread diameter and 0.75 inch reach make it compatible with specific vehicle models requiring these dimensions.

About the NGK Laser Iridium Spark Plug Line

The Laser Iridium Spark Plug line from NGK is known for combining iridium's high melting point and durability with precise electrode design. This product line focuses on delivering consistent ignition performance and extended service life compared to conventional spark plugs. The 5766 part number is part of this line, offering the benefits of iridium technology along with copper core conductivity and a carefully engineered ground electrode design.

Common Applications and Issues Addressed

• Improves ignition reliability in vehicles experiencing misfires
• Helps reduce engine hesitation and rough idling
• Supports efficient fuel combustion for better engine performance
• Addresses spark plug wear in high-heat engine environments
• Compatible with vehicles requiring a heat range 9 spark plug

Installation Notes and Tips

Ensure the spark plug gap is set to the specified 0.036 inches before installation. Use a torque wrench to tighten the spark plug to the manufacturer’s recommended torque to avoid damage to the threads or improper sealing. The 5/8 inch hex size allows for standard spark plug socket use. Verify compatibility with your vehicle’s engine specifications, especially thread diameter and reach, to ensure proper fitment.

Quality Assurance

NGK spark plugs are manufactured to strict quality standards to ensure consistent performance and durability. The Laser Iridium Spark Plug 5766 undergoes rigorous testing for heat resistance and electrical conductivity. While specific warranty details are not provided here, NGK products typically come with manufacturer-backed quality assurance to support reliable operation.
