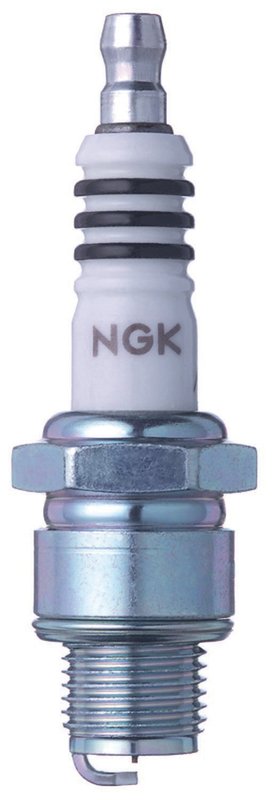

NGK 7001 Spark Plug

NGK Iridium IX Spark Plug Overview

The NGK Iridium IX Spark Plug 7001 is engineered for reliable ignition performance and durability. Designed with advanced materials and precise specifications, this spark plug supports efficient combustion in a variety of vehicle applications.

• Iridium center electrode tip for enhanced durability and consistent spark
• Taper cut ground electrode tip for improved ignitability
• Copper core center electrode for optimal conductivity
• Standard ground configuration with nickel ground electrode core
• Removable nut electrical terminal type for flexible installation
• Pre-gap size of .032 inches for precise spark gap
• Flat seat type with 14mm thread diameter and 0.5 inch reach
• Hex size 13/16 inch for standard wrench compatibility
• Manufacturer heat range 8 for balanced thermal performance

Detailed Product Features and Specifications

The NGK Iridium IX Spark Plug 7001 features a copper core center electrode with an iridium tip, which provides a stable and long-lasting spark. The taper cut ground electrode tip enhances ignitability by reducing quenching effects, while the nickel ground electrode core ensures durability under high temperatures. The spark plug has a resistance rating of 5000 ohms, helping to suppress electrical noise and improve ignition system reliability. Its flat seat design and 14mm thread diameter with a 0.5 inch reach make it compatible with many vehicle engines requiring these specifications. The removable nut electrical terminal type allows for easier installation and removal in tight engine compartments. With a pre-gap size of .032 inches and a manufacturer heat range of 8, this spark plug balances heat dissipation and performance for consistent engine operation.

About the Iridium IX Spark Plug Line

The NGK Iridium IX Spark Plug line is designed to deliver enhanced ignition performance through the use of iridium-tipped electrodes. This technology improves spark efficiency and electrode longevity compared to conventional spark plugs. The 7001 part number is part of this line, offering a combination of iridium and copper materials to optimize conductivity and durability for secondary ignition systems.

Common Applications and Problem Solving

• Improves engine misfire issues caused by worn or fouled spark plugs
• Enhances cold start performance in vehicles with ignition difficulties
• Reduces ignition system electrical noise due to 5000 ohm resistance
• Supports consistent combustion for smoother engine operation
• Helps maintain fuel efficiency by ensuring proper spark timing

Installation Notes and Tips

Before installation, verify the spark plug gap is set to the recommended .032 inches. Use a 13/16 inch socket wrench to install the spark plug, ensuring the flat seat properly contacts the cylinder head. The removable nut terminal allows for easier connection of ignition wires. Avoid over-tightening to prevent thread damage; follow vehicle manufacturer torque specifications. This spark plug is compatible with vehicles requiring a heat range 8 and 14mm thread diameter with a 0.5 inch reach.

Quality Assurance and Warranty

NGK spark plugs are manufactured to meet strict quality standards for ignition components. The Iridium IX Spark Plug 7001 undergoes rigorous testing to ensure durability and performance under various operating conditions. While specific warranty details are not provided here, NGK typically offers coverage against manufacturing defects. Refer to NGK documentation or vehicle service manuals for warranty and replacement guidelines.
