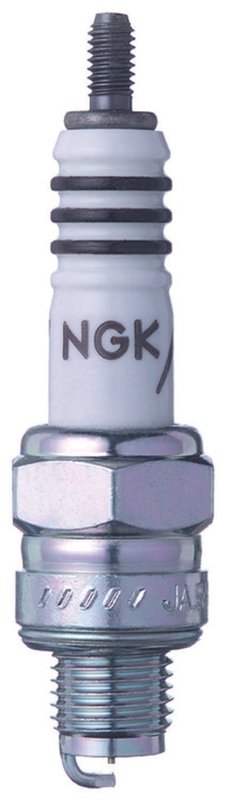

NGK 7544 Spark Plug

NGK Iridium IX Spark Plug Overview

The NGK Iridium IX Spark Plug 7544 is engineered for reliable ignition performance and durability. Designed with advanced materials and precise specifications, this spark plug supports efficient combustion in a variety of vehicle applications.

• Iridium center electrode tip for enhanced durability and consistent spark
• Taper cut ground electrode tip design for improved ignitability
• Copper core center electrode for optimal conductivity
• Standard ground configuration with nickel ground electrode core material
• Pre-gap size of 0.028 inches for precise spark gap
• Flat seat type with 5/8 inch hex size for secure installation
• Manufacturer heat range rating of 7 for balanced thermal performance
• Thread diameter of 10.00 mm and reach of 0.5 inches

Detailed Product Features and Specifications

The NGK Iridium IX Spark Plug 7544 features a copper core center electrode with an iridium tip, which provides a stable and efficient spark while maintaining electrode longevity. The taper cut ground electrode tip enhances ignitability by focusing the spark energy, contributing to smoother engine starts and improved throttle response. The ground electrode is made from nickel, offering durability under high-temperature conditions. This spark plug has a resistance rating of 5000 ohms, which helps reduce electrical noise and interference with vehicle electronics.

With a pre-gap size of 0.028 inches and a flat seat type, the spark plug ensures consistent spark gap and proper sealing in the combustion chamber. The 5/8 inch hex size and stud-type electrical terminal facilitate straightforward installation and secure connection. The heat range of 7 is suitable for a range of engine operating conditions, balancing heat dissipation and preventing fouling.

About the Iridium IX Spark Plug Line

The NGK Iridium IX Spark Plug line is designed to deliver enhanced ignition performance through the use of iridium, a metal known for its high melting point and wear resistance. This product line focuses on providing improved durability and consistent spark delivery compared to conventional spark plugs. The 7544 part number is part of this line, offering the benefits of iridium technology combined with NGK’s engineering standards.

Applications and Common Issues Addressed

• Improves engine starting reliability in cold or damp conditions
• Reduces misfires and rough idling caused by worn spark plugs
• Enhances fuel efficiency by promoting complete combustion
• Minimizes spark plug fouling in engines prone to carbon buildup
• Supports stable engine performance under varying load conditions

Installation Notes and Tips

Before installation, verify the spark plug gap matches the vehicle manufacturer’s specifications; the NGK 7544 comes pre-gapped at 0.028 inches. Use a torque wrench to tighten the spark plug to the recommended torque to avoid damage to the threads or improper sealing. Ensure the spark plug seat type matches the engine’s cylinder head design—this model features a flat seat. Inspect the ignition wires or coil boots for wear and replace if necessary to maintain optimal electrical connection.

Quality Assurance and Warranty

NGK spark plugs, including the Iridium IX 7544, are manufactured to meet strict quality standards for performance and durability. While specific warranty details may vary by region, NGK typically offers coverage against manufacturing defects. Refer to NGK’s official documentation or authorized distributors for warranty terms applicable to this spark plug.
