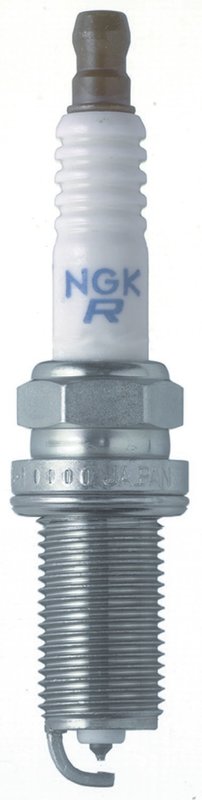

NGK 7654 Spark Plug

NGK Laser Platinum Spark Plug Overview

The NGK Laser Platinum Spark Plug part number 7654 is engineered for reliable ignition performance in select Toyota, Lexus, and Subaru vehicles. Designed with precision materials and specifications, this spark plug supports efficient combustion and consistent engine operation.

• Center electrode tip made of platinum for enhanced durability
• Copper core center electrode for improved conductivity
• Standard ground electrode with nickel core material
• Pre-gap size of 0.044 inches for optimal spark gap
• Non-removable nut electrical terminal type
• Flat seat type with 14.00 mm thread diameter and 26.5 mm reach
• Hex size of 5/8 inch for installation with common tools
• Manufacturer heat range rating of 6

Detailed Product Description

The NGK Laser Platinum Spark Plug (part number 7654) features a platinum center electrode tip that enhances wear resistance and maintains a stable spark over time. The copper core center electrode improves thermal conductivity, helping to dissipate heat efficiently. The ground electrode is constructed with a nickel core and a standard tip design, providing reliable grounding for consistent ignition. With a pre-gap size of 0.044 inches, this spark plug is optimized for precise ignition timing and combustion efficiency. The flat seat design ensures proper sealing in the combustion chamber, while the 14 mm thread diameter and 26.5 mm reach make it compatible with specific engine configurations.

About the Laser Platinum Spark Plug Line

The NGK Laser Platinum Spark Plug line is designed to offer a balance of durability and performance by utilizing platinum at the center electrode tip. This material choice extends the service life of the spark plug compared to conventional designs. The Laser Platinum series is suitable for vehicles requiring stable ignition and consistent engine performance, such as the Toyota 4Runner, Lexus GX460, and Subaru Outback.

Compatible Vehicles and Applications

This spark plug is compatible with a range of Toyota, Lexus, and Subaru models, including:

• Toyota 4Runner, FJ Cruiser, Land Cruiser, Sequoia, Tacoma, Tundra
• Lexus GX460, LX570
• Subaru Outback

It is designed to address common ignition-related issues such as:

• Misfires and rough idling
• Poor fuel economy
• Difficulty starting the engine
• Reduced engine power
• Increased emissions

Installation Notes and Tips

When installing the NGK Laser Platinum Spark Plug 7654, ensure the spark plug gap is set to the specified pre-gap size of 0.044 inches if adjustment is necessary. Use a 5/8 inch socket for proper torque application. Avoid over-tightening to prevent damage to the flat seat and threads. It is recommended to inspect the ignition system components during installation to maintain optimal engine performance.

Quality Assurance and Warranty

NGK spark plugs are manufactured to meet strict quality standards, ensuring reliable ignition performance and durability. The Laser Platinum Spark Plug line undergoes rigorous testing for heat range, electrode wear, and electrical resistance. This product includes a resistance rating of 5000 ohms to reduce radio frequency interference. Warranty coverage details should be confirmed with the vehicle manufacturer or NGK documentation.
