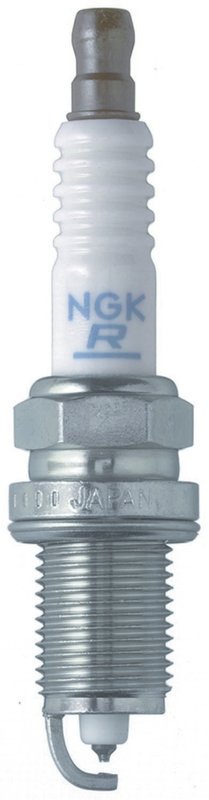

NGK 7696 Spark Plug
| Brand | NGK 7696 |
|---|---|
| Resistance | 5000 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | Standard |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Non-removable nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Platinum |
| Pre-Gap Size | .032 |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8 |
| Insulator Height | 50.50 |
| Manufacturer Heat Range | 6 |
| Seat Type | Flat |
| Reach | .75 |
| Thread Diameter | 14.00 |
| Part Number | Pzfr6h |
| Stock Number | 7696 |
| Fits | — |
Laser Platinum design. Platinum tip helps deliver consistent ignition performance.
OE supplier heritage. Built by NGK, a long-time original equipment spark plug manufacturer.
Copper core. Promotes efficient heat transfer for stable operation.
Cross-references Carlson 7696, MOOG Driveline Products 958 and 952M for the same application. See all 6.
NGK Laser Platinum Spark Plug 7696
NGK Laser Platinum Spark Plug 7696 is built for drivers who want OE-style ignition performance with durable materials and precise fitment dimensions. This spark plug uses a platinum center electrode tip, a copper core center electrode, and a nickel ground electrode to support consistent spark delivery in the ignition system.
Key Features
- Laser Platinum design with a platinum center electrode tip
- Copper core center electrode for stable heat transfer
- Nickel ground electrode with standard tip design
- 5,000 ohm resistance for ignition system compatibility
- Pre-gapped to .032 for common OE-style applications
- 14 mm thread diameter, .75 reach, and flat seat design
- 5/8 hex size with non-removable nut terminal
- Manufacturer heat range 6
Product Details
NGK is a long-standing OE supplier in North America, and the Laser Platinum line focuses on dependable ignition performance for domestic and import vehicles. Part number 7696, also identified as PZFR6H, is engineered with a platinum tip and copper core construction to support consistent combustion and long service life in the ignition system. This spark plug is a practical choice for drivers searching for an NGK 7696 spark plug, NGK PZFR6H replacement, or a Laser Platinum spark plug for OE-style maintenance on vehicles such as Honda Civic and similar applications where this specification is required.
This part cross-references Carlson 7696 for the same application.
Common Symptoms This Part Addresses
- Engine misfire under load
- Hard starting or extended crank time
- Rough idle and inconsistent combustion
- Reduced fuel economy from worn spark plugs
- Weak spark performance from aged ignition components
Installation Notes
Verify thread diameter, reach, seat type, and heat range before installation. Check the pre-gap against the vehicle service specification and adjust only if required by the application. Use proper spark plug socket clearance for the 5/8 hex and confirm the terminal style matches the ignition lead or coil-on-plug connection. For fitment-based searches, this NGK 7696 spark plug is commonly referenced for Honda Civic applications where the listed dimensions match the engine specification.
Quality Assurance
NGK manufactures spark plugs to original equipment standards and supports a broad range of domestic, import, motorcycle, marine, and small engine applications. The Laser Platinum line reflects NGK’s OE-focused engineering and North American manufacturing and distribution capability.
