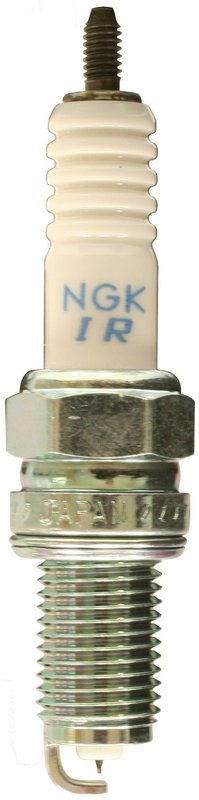

NGK 7795 Spark Plug

Reliable Ignition with NGK Laser Iridium Spark Plug 7795

The NGK Laser Iridium Spark Plug 7795 offers precise ignition performance designed for a range of vehicle applications. Engineered with durable materials and advanced electrode design, this spark plug supports efficient combustion and consistent engine operation.

• Iridium center electrode tip for enhanced durability and ignition
• Taper cut ground electrode tip design for improved spark exposure
• Copper core center electrode for optimal conductivity
• Standard ground configuration with a single nickel ground electrode
• Non-removable nut electrical terminal type for secure connection
• Flat seat type with 12mm thread diameter and 0.75" reach
• Pre-gap size of 0.032" for precise spark gap
• Hex size of 5/8" for standard installation tools
• Manufacturer heat range 9 suitable for specific engine requirements

About the NGK Laser Iridium Spark Plug Line

The Laser Iridium Spark Plug line from NGK is designed to provide long-lasting performance and reliable ignition. Featuring an iridium center electrode tip, these plugs offer improved wear resistance and stable spark delivery compared to conventional plugs. The combination of copper core and iridium tip materials ensures efficient electrical conductivity and durability under various operating conditions.

Technical Details and Performance

This NGK spark plug, part number 7795 (also referenced as Kr9ci), incorporates a taper cut ground electrode tip that enhances spark exposure and combustion efficiency. The single nickel ground electrode provides a standard configuration compatible with many vehicle engines. With a 0.032" pre-gap and a flat seat design, it ensures proper sealing and spark gap consistency. The 12mm thread diameter and 0.75" reach make it suitable for a variety of automotive applications requiring these specifications.

Common Applications and Problem Solving

• Improves ignition stability in engines experiencing misfires
• Reduces electrode wear in high-heat operating conditions
• Enhances fuel efficiency by promoting complete combustion
• Addresses rough idling caused by worn or damaged spark plugs
• Supports consistent engine start-up performance

Installation Notes and Tips

When installing the NGK Laser Iridium Spark Plug 7795, ensure the spark plug gap is set to the specified 0.032" pre-gap if adjustment is necessary. Use a 5/8" socket wrench for proper torque application. The flat seat design requires careful seating to avoid cross-threading. Always refer to the vehicle manufacturer’s specifications for torque values and installation procedures to maintain optimal performance.

Quality Assurance and Warranty

NGK spark plugs are manufactured to meet strict quality standards, ensuring reliable performance and durability. The Laser Iridium Spark Plug 7795 undergoes rigorous testing for heat range, electrode wear, and electrical resistance (5000 ohms) to maintain consistent ignition quality. Warranty coverage details should be confirmed with the vehicle manufacturer or parts distributor.
