Home› Ignition > Secondary Ignition› NGK 91164 Spark Plug
NGK 91164 Spark PlugOE Quality 60-Day Returns

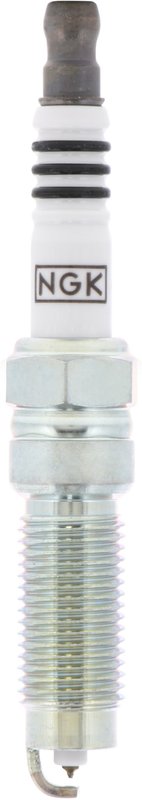

NGK 91164 Spark Plug - view 1
NGK 91164 Spark Plug - view 2
Part #: 91164

NGK 91164 Spark Plug

Iridium IX Spark Plug
⚙️ 22 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$16.01Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦Iridium IX Spark Plug
🚗Fitment: Ford, EcoSport, Escape, Fiesta, Focus, and Fusion
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Spark Plug options
NGK 91164 Spark Plug
BrandNGK
Part Number91164
PositionIridium IX Spark Plug
Resistance5000.0
Ground Electrode Tip DesignTaper cut
Ground ConfigurationJ-gap
11589Metric
Ground Electrode Core MaterialNickel
Washer IncludedNo
Grade TypePerformance
Electrical Terminal TypeNon-removable nut
Center Electrode Core MaterialCopper
Center Electrode Tip MaterialIridium
Pre-Gap Size.028
Pre-Gap Size0.7
Ground Electrode Quantity1
Hex Size14mm
Insulator Height2.07
Insulator Height52.5
Manufacturer Heat Range8
Seat TypeTapered
Reach0.984
Reach25.0
Insulator MaterialCeramic
Resistor TypeYes
Skirt Length0.118
Skirt Length3.0
Thread SizeM12 - 1.25
Ground Electrode Tip MaterialPlatinum
SkirtYes
Center Electrode Insulator Tip Projection0.12
Center Electrode Insulator Tip Projection3.0
Center Electrode DesignFine wire

This part fits 22 vehicles. Search below:

YearMakeModelLitersCylindersPositionNotes
2021FordEcoSport1.0LL3N/AGap 0.028"; Iridium IX Spark Plug
2020FordEcoSport1.0LL3N/AGap 0.028"; Iridium IX Spark Plug
2020FordFusion1.5LL4N/AGap 0.028"; Iridium IX Spark Plug
2019FordEcoSport1.0LL3N/AGap 0.028"; Iridium IX Spark Plug
2019FordEscape1.5LL4N/AGap 0.028"; Iridium IX Spark Plug
2019FordFusion1.5LL4N/AGap 0.028"; Iridium IX Spark Plug
2018FordEcoSport1.0LL3N/AGap 0.028"; Iridium IX Spark Plug
2018FordEscape1.5LL4N/AGap 0.028"; Iridium IX Spark Plug
2018FordFocus1.0LL3N/AGap 0.028"; Iridium IX Spark Plug
2018FordFusion1.5LL4N/AGap 0.028"; Iridium IX Spark Plug
2017FordEscape1.5LL4N/AGap 0.028"; Iridium IX Spark Plug
2017FordFiesta1.0LL3N/AGap 0.028"; Iridium IX Spark Plug
2017FordFocus1.0LL3N/AGap 0.028"; Iridium IX Spark Plug
2017FordFusion1.5LL4N/AGap 0.028"; Iridium IX Spark Plug
2016FordFiesta1.0LL3N/AGap 0.028"; Iridium IX Spark Plug
2016FordFocus1.0LL3N/AGap 0.028"; Iridium IX Spark Plug
2016FordFusion1.5LL4N/AGap 0.028"; Iridium IX Spark Plug
2015FordFiesta1.0LL3N/AGap 0.028"; Iridium IX Spark Plug
2015FordFocus1.0LL3N/AGap 0.028"; Iridium IX Spark Plug
2015FordFusion1.5LL4N/AGap 0.028"; Iridium IX Spark Plug
2014FordFiesta1.0LL3N/AGap 0.028"; Iridium IX Spark Plug
2014FordFusion1.5LL4N/AGap 0.028"; Iridium IX Spark Plug

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

91164LZNAR8AIX-P

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
