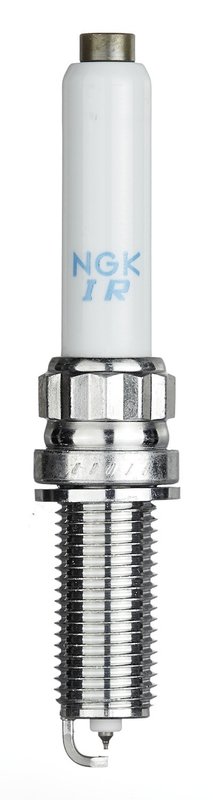

NGK 93560 Spark Plug

Overview of NGK Laser Iridium High Ignitability Spark Plug 93560

The NGK Laser Iridium High Ignitability Spark Plug 93560 is engineered for precision ignition performance in select Audi and Porsche models. Designed to deliver consistent spark and improved combustion, this spark plug supports efficient engine operation in vehicles such as the Audi A6 Quattro and Porsche 911.

• Iridium center electrode tip for enhanced durability and ignition
• Thin square ground electrode tip design for optimized spark exposure
• Copper core materials in both center and ground electrodes for superior conductivity
• Pre-gap size of 0.028 inches for precise spark gap
• Flat seat type with 12mm thread diameter and 1.04 inch reach
• Electrical terminal type: stud for secure connection
• Manufacturer heat range rating of 9 suitable for high-performance engines
• Hex size of 0.551 inches for standard installation tools

Detailed Product Features and Specifications

The NGK Laser Iridium High Ignitability Spark Plug 93560 features a copper core center electrode with an iridium tip, which provides a balance of excellent electrical conductivity and wear resistance. The thin square ground electrode tip design reduces quenching and allows for a more efficient spark, contributing to improved ignition and combustion stability. With a resistance rating of 5000 ohms, this spark plug helps suppress electrical noise that can interfere with vehicle electronics.

The spark plug’s flat seat and 12mm thread diameter ensure compatibility with a range of Audi and Porsche engines, including models like the Audi S5 Sportback and Porsche Cayenne. The pre-gap size of 0.028 inches is factory set to optimize ignition timing and performance. Additionally, the heat range of 9 is designed to handle the thermal demands of high-performance engines, maintaining optimal operating temperature and preventing fouling.

Compatible Vehicles and Applications

• Compatible with Audi models: A6 allroad, A6 Quattro, A7 Sportback, A8 Quattro, Q7, Q8, RS3, RS5, RS5 Sportback, S4, S5, S5 Sportback, S6, S7, S7 Sportback, SQ5, SQ5 Sportback
• Compatible with Porsche models: 911, Cayenne, Macan, Panamera
• Ideal for secondary ignition system replacement or upgrade
• Addresses ignition misfires, rough idling, and poor fuel efficiency
• Suitable for vehicles requiring a spark plug with a 12mm thread diameter and flat seat

Installation Notes and Tips

When installing the NGK Laser Iridium High Ignitability Spark Plug 93560, ensure the spark plug gap is checked and adjusted if necessary, although it comes pre-gapped at 0.028 inches. Use a torque wrench to tighten the spark plug to the manufacturer’s specifications to avoid damage to the threads or improper sealing. The hex size of 0.551 inches allows for standard spark plug sockets. Verify compatibility with your specific Audi or Porsche model before installation.

Quality Assurance and Warranty

NGK spark plugs are manufactured to strict quality standards to ensure reliable performance and longevity. The Laser Iridium High Ignitability Spark Plug line is designed for durability under demanding engine conditions. While specific warranty details for part number 93560 are not provided here, NGK typically offers coverage against manufacturing defects. Consult NGK or your parts supplier for warranty information related to this spark plug.
