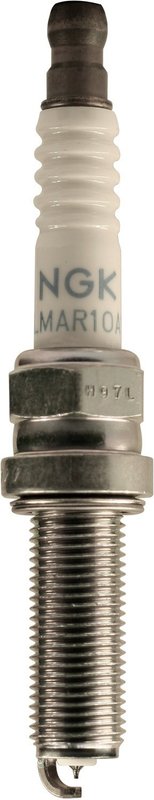

NGK 93675 Spark Plug

Reliable Ignition with NGK Laser Iridium High Ignitability Spark Plug

The NGK Laser Iridium High Ignitability Spark Plug 93675 offers precise ignition performance designed for a range of vehicles requiring high ignitability and durability. Engineered with advanced materials, this spark plug supports efficient combustion and consistent engine operation.

• Iridium center electrode tip for enhanced ignition
• Square platinum ground electrode tip for high ignitability
• Standard ground configuration with nickel core ground electrode
• Non-removable nut electrical terminal type
• Pre-gap size of 0.036 inches for optimal spark gap
• Flat seat type with 10.00 mm thread diameter and 26.5 mm reach
• Manufacturer heat range rating of 7
• Hex size of 14 mm for installation

Advanced Features of the Laser Iridium High Ignitability Spark Plug

The NGK Laser Iridium High Ignitability Spark Plug line is designed to deliver reliable ignition performance with a focus on durability and fuel efficiency. This product line incorporates iridium and platinum electrode materials to improve spark longevity and ignition quality. The 93675 part number features a copper core center electrode with an iridium tip, which enhances conductivity and wear resistance. The square platinum ground electrode tip further supports high ignitability, making it suitable for vehicles that demand consistent spark performance under various operating conditions.

Technical Specifications and Benefits

This spark plug includes a single ground electrode made from nickel, providing a balance of durability and conductivity. The non-removable nut electrical terminal ensures secure connection and ease of installation. With a pre-gap size of 0.036 inches, the spark plug is optimized for efficient combustion and reduced misfire risk. The flat seat design and 10 mm thread diameter with a 26.5 mm reach make it compatible with specific vehicle applications requiring these dimensions. The heat range of 7 indicates suitability for engines operating under moderate to high temperatures.

Common Applications and Problem Solving

• Improves ignition reliability in vehicles experiencing misfires or rough idling
• Enhances fuel efficiency by promoting complete combustion
• Reduces electrode wear for longer service intervals
• Supports stable engine performance in moderate to high heat conditions
• Compatible with vehicles requiring a 14 mm hex size spark plug for installation

Installation Notes and Tips

When installing the NGK Laser Iridium High Ignitability Spark Plug 93675, ensure the spark plug gap is set to the specified 0.036 inches if adjustment is necessary. Use a 14 mm socket for proper torque application to avoid damage to the electrode or threads. Confirm compatibility with your vehicle’s engine specifications, particularly thread diameter and reach, to ensure proper fitment and sealing. Avoid overtightening to maintain the integrity of the flat seat design.

Quality Assurance and Warranty

NGK spark plugs are manufactured to meet strict quality standards, ensuring consistent performance and durability. The Laser Iridium High Ignitability Spark Plug 93675 undergoes rigorous testing for heat resistance and electrical conductivity. While specific warranty details are not provided here, NGK typically offers coverage against manufacturing defects. Refer to NGK’s official documentation for warranty terms applicable to this part number.
