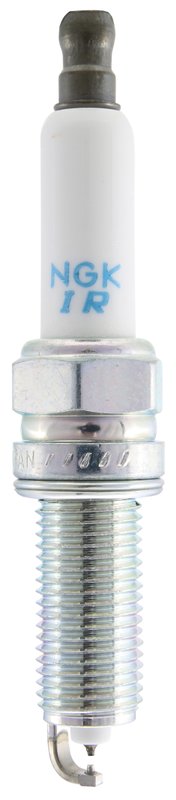

NGK 96972 Spark Plug

Reliable Ignition Performance for Genesis G80 and G90

The NGK Laser Iridium High Ignitability Spark Plug 96972 is engineered to deliver consistent ignition and efficient combustion for Genesis G80 and G90 models. Designed with advanced materials and precise specifications, this spark plug supports optimal engine performance and fuel efficiency.

• Iridium center electrode tip for enhanced durability and ignition
• Nickel ground electrode core with Dfe tip design for stable spark
• Standard ground configuration with a single ground electrode
• Non-removable nut electrical terminal type for secure connection
• Pre-gap size of 0.044 inches for precise spark gap
• Flat seat type with 26.5 mm reach and 5/8 inch hex size
• Manufacturer heat range rating of 7 for balanced thermal performance
• Resistor type spark plug with 5000 ohm resistance to reduce electrical noise
• Insulator height of 51.00 mm for proper fitment

About the NGK Laser Iridium High Ignitability Spark Plug Line

The Laser Iridium High Ignitability Spark Plug line from NGK is designed to provide improved ignition reliability and longer service life compared to conventional spark plugs. Featuring an iridium center electrode tip, these plugs offer enhanced wear resistance and consistent spark delivery. The 96972 part number is part of this line, combining advanced materials and design to meet the ignition demands of modern Genesis G80 and G90 engines.

Technical Details and Specifications

This NGK spark plug features a copper core center electrode with an iridium tip, which improves ignition efficiency and durability. The ground electrode uses nickel core material with a Dfe tip design, contributing to stable spark formation. The plug has a flat seat type and a reach of 26.5 mm, ensuring proper seating in the combustion chamber. The 5/8 inch hex size allows for standard installation tools. With a manufacturer heat range of 7 and a resistor type design with 5000 ohms resistance, this spark plug helps reduce electromagnetic interference while maintaining optimal thermal characteristics.

Compatible Vehicles and Common Applications

• Replacement spark plug for Genesis G80 models requiring part number 96972
• Suitable for Genesis G90 vehicles needing NGK Laser Iridium High Ignitability Spark Plug
• Addresses ignition misfires and rough idling in compatible Genesis engines
• Helps improve cold start performance and throttle response
• Supports consistent combustion for fuel efficiency and emissions control

Installation Notes and Tips

Ensure the spark plug gap is set to the specified pre-gap size of 0.044 inches before installation. Use a 5/8 inch socket wrench for proper tightening to avoid damage. The non-removable nut electrical terminal requires compatible ignition wire connectors. Follow vehicle manufacturer torque specifications to secure the spark plug and prevent thread damage. Regular inspection and replacement according to maintenance schedules will maintain engine performance.

Quality Assurance and Warranty

NGK spark plugs are manufactured to meet strict quality standards for ignition components. The Laser Iridium High Ignitability Spark Plug 96972 undergoes rigorous testing to ensure durability and reliable performance in Genesis G80 and G90 vehicles. While specific warranty details are not provided here, NGK products typically come with manufacturer-backed quality assurance to support long-term use.
