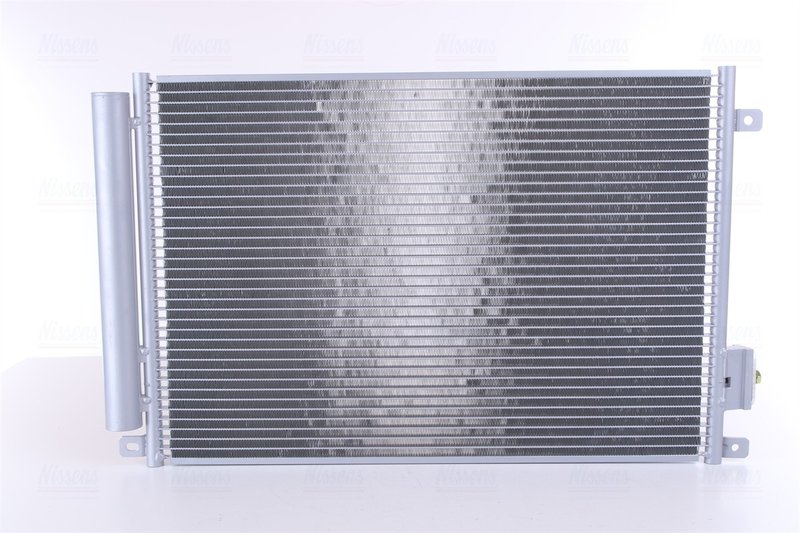

Nissens 940280 A/C Condenser

Overview

This Nissens A/C condenser is built for vehicles that use R134A or R1234YF refrigerant and is engineered for a precise fit with dependable cooling performance. It is a direct replacement style condenser for the Fiat 500, with corrosion-resistant construction and an included drier and O-rings for a cleaner service job.

Key Features

• Aluminum condenser construction with anti-corrosion coating
• Includes drier and O-rings for service-ready installation
• Supports R134A and R1234YF refrigerant systems
• OE matching fit and finish for consistent replacement results
• Fits 2009-2019 Fiat 500, N/A

Detailed Description

Nissens part number 940280 is an A/C condenser designed to replace the original unit on the Fiat 500 across the 2009-2019 model years. The aluminum core measures 21.42 in. high, 14.49 in. long, and 0.47 in. thick, giving it the dimensions needed for proper system integration while maintaining the fit and finish expected in an OE-style replacement. Part number 940280 is also built with corrosion resistance in mind, helping it stand up to moisture, road salt, and temperature swings.

This condenser includes a drier and O-rings, which supports a more complete A/C service when replacing a leaking or damaged condenser. It is suited for systems using either R134A or R1234YF refrigerant. For buyers searching for a Fiat 500 A/C condenser replacement or Nissens 940280 condenser, this unit provides a focused solution for restoring condenser function in the vehicle's air conditioning system.

Common Uses

• Replacing a leaking or punctured condenser
• Restoring A/C cooling after corrosion damage
• Addressing poor heat transfer in the condenser circuit
• Servicing a system that requires a new drier and sealing O-rings

Installation Notes

Verify refrigerant type before installation and confirm the condenser dimensions match the original unit. Inspect adjacent A/C components, lines, and seals for contamination or wear before reassembly. Proper evacuation, leak testing, and recharge procedures are required after installation.

Quality Assurance

Nissens designs and tests its condensers for extended service life, with anti-corrosion protection intended to improve durability in harsh operating conditions. Part number 940280 is manufactured to match OE fit and finish for a straightforward replacement process.
