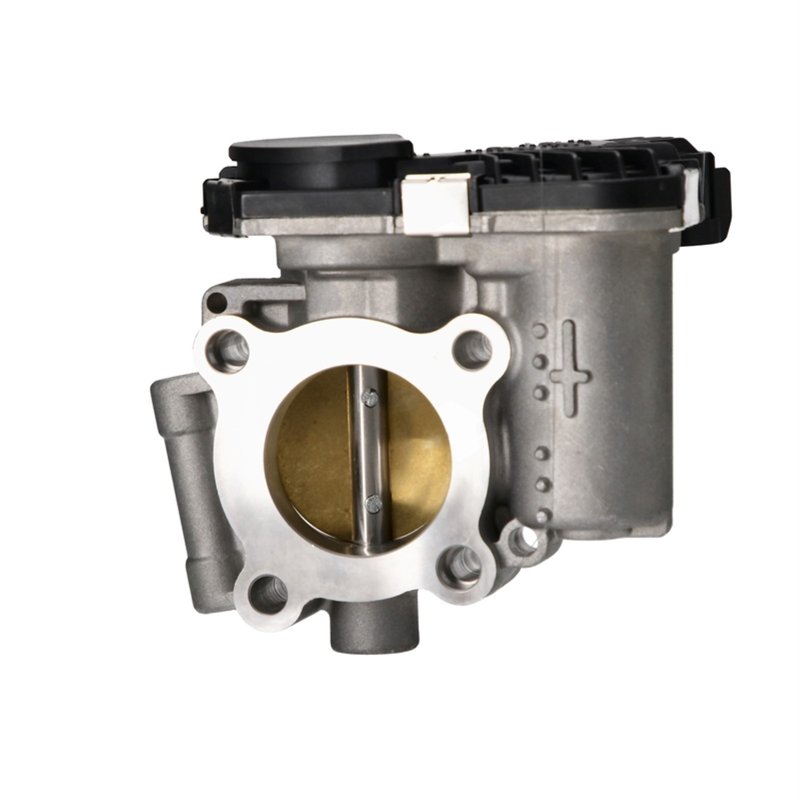

Nissens 955059 Fuel Injection Throttle Body

Nissens Fuel Injection Throttle Body 955059

Nissens 955059 is an OEM-equivalent electric fuel injection throttle body built for precise airflow control and stable engine response. It is engineered for 2011-2015 Chevrolet Volt and 2014-2016 Cadillac ELR applications, with integrated throttle position sensor and idle air control motor for direct electronic throttle management.

Key Features

• Electric throttle body, 12-volt operation
• OEM equivalent grade for OE-style fit and function
• Integrated throttle position sensor and idle air control motor
• Aluminum/plastic throttle body construction
• Rectangular 6-pin connector
• O-ring included for sealing at installation
• Inlet diameter: 2.13 in; outlet diameter: 1.73 in

Detailed Description

This Nissens throttle body is tested through functional, high-temperature endurance, durability, load, and corrosion validation to support consistent operation in demanding engine bay conditions. Part number 955059 is a direct-fit style replacement for Chevrolet Volt and Cadillac ELR models listed in the fitment data, and it cross-references ACDelco 55562270 and Bosch 0280750482 for the same application. Use 955059 when replacing a worn or electronically unstable throttle body on a 2011-2015 Chevrolet Volt or 2014-2016 Cadillac ELR.

Common Issues It May Solve

• Rough or unstable idle caused by throttle body wear
• Throttle response problems from sensor or actuator failure
• Electronic throttle control faults related to internal component degradation
• Airflow inconsistency from carbon buildup or corrosion damage
• Driveability concerns on Chevrolet Volt and Cadillac ELR models with failing throttle control

Installation Notes and Tips

Verify connector style, inlet and outlet dimensions, and OE cross-reference before installation. The gasket or seal is not included, and mounting hardware is not included, so inspect the existing sealing surfaces and related components before reassembly. After installation, clear any stored throttle-related fault codes and perform the required throttle relearn or adaptation procedure if specified by the vehicle service information.

Quality Assurance

Nissens validates this throttle body through functional, endurance, durability, load, and corrosion testing to support long-term operation and OE-style performance. The 955059 is built to match the expectations of modern electronic throttle systems used in Chevrolet Volt and Cadillac ELR applications.
