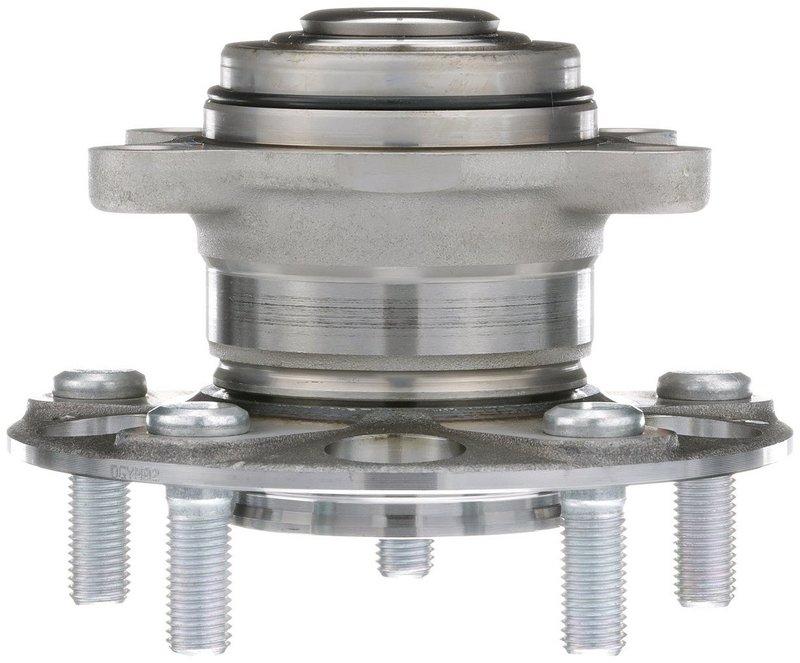

NSK 47BWKH02L Wheel Bearing and Hub Assembly - Rear

Overview of NSK 47BWKH02L Wheel Bearing and Hub Assembly

The NSK 47BWKH02L is a wheel bearing and hub assembly designed specifically for Acura and Honda vehicles, including the Civic and CSX models. This non-driven hub assembly features an integrated magnetic encoder for ABS systems, ensuring precise wheel speed monitoring and compatibility with factory ABS components.

• ABS equipped with magnetic encoder for accurate wheel speed sensing
• Bolt circle diameter mounting flange: 100 mm
• Bolt circle diameter wheel flange: 114.3 mm
• Flange bolt hole quantity: 4 with M10x1.25 thread size
• Wheel stud quantity: 5 with M12x1.5 size
• Brake pilot diameter: 64 mm
• Flange diameter: 139.5 mm with 55.1 mm flange offset
• Hub pilot diameter: 70 mm, wheel pilot diameter: 64 mm
• Generation 3 design for improved durability and fitment

Technical Details and Specifications

This NSK wheel bearing and hub assembly (part number 47BWKH02L) is engineered to meet the exact specifications required for Acura and Honda Civic and CSX models. The assembly is non-driven, meaning it is designed for the non-driven axle side. It features a magnetic encoder ABS tone ring integrated into the hub, which works seamlessly with the vehicle’s ABS system to provide reliable wheel speed data. The bolt circle diameters for both the mounting flange (100 mm) and wheel flange (114.3 mm) ensure proper fitment and secure mounting. The flange includes four bolt holes sized M10x1.25, while the wheel flange supports five wheel studs sized M12x1.5, providing a secure connection to the wheel. The brake pilot diameter of 64 mm and hub pilot diameter of 70 mm help center the assembly accurately on the axle hub.

Compatible Vehicles and Applications

This wheel bearing and hub assembly is compatible with the following vehicles:

• Acura CSX
• Honda Civic

It is designed to replace worn or damaged wheel bearing and hub assemblies on the non-driven axle, restoring proper wheel alignment and ABS functionality.

Common Issues Addressed by This Assembly

• Eliminates wheel bearing noise such as humming or grinding
• Resolves ABS warning light caused by faulty wheel speed sensor signals
• Corrects wheel play or looseness affecting vehicle stability
• Prevents uneven tire wear due to hub misalignment
• Restores smooth wheel rotation and braking performance

Installation Notes and Tips

When installing the NSK 47BWKH02L wheel bearing and hub assembly, ensure the following:

• Verify compatibility with the vehicle make and model (Acura CSX, Honda Civic)
• Use proper torque specifications for flange bolts (M10x1.25) and wheel studs (M12x1.5)
• Inspect the axle and surrounding components for wear or damage before installation
• Handle the magnetic encoder carefully to avoid sensor damage
• Follow manufacturer guidelines for ABS sensor alignment and calibration

Quality Assurance and Warranty

NSK manufactures this wheel bearing and hub assembly to meet OEM standards for fit, form, and function. The part number 47BWKH02L undergoes rigorous quality control to ensure durability and reliable ABS performance. While specific warranty details may vary, NSK typically offers coverage against defects in materials and workmanship, providing confidence in the product’s longevity and safety.
