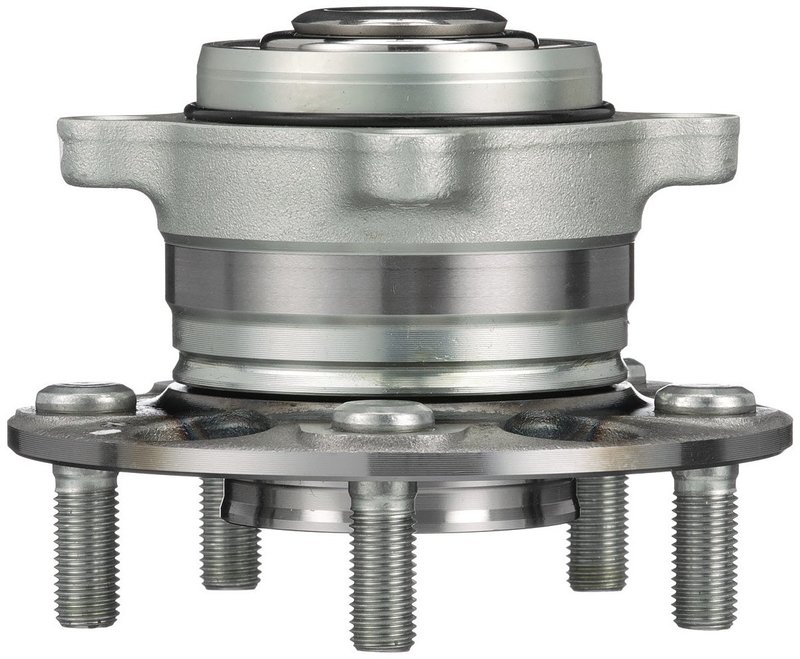

NSK 60BWKH11 Axle Bearing and Hub Assembly - Rear

Overview of NSK 60BWKH11 Axle Bearing and Hub Assembly

The NSK 60BWKH11 axle bearing and hub assembly is designed for precise fitment on select Acura and Honda models, including the Accord and TSX. This non-driven hub assembly features an integrated magnetic encoder for ABS systems, ensuring reliable wheel speed data for vehicle safety systems.

• ABS equipped with magnetic encoder tone ring and sensor
• Bolt circle diameter mounting flange: 101.6 mm
• Bolt circle diameter wheel flange: 114.3 mm
• Flange bolt hole quantity: 4 with M12x1.25 thread size
• Wheel stud quantity: 5 with M12x1.5 size
• Brake pilot diameter: 64 mm
• Flange diameter: 139.5 mm with 58.8 mm flange offset
• Hub pilot diameter: 72 mm; wheel pilot diameter: 64 mm
• Generation 3 design for enhanced durability

Detailed Product Description

The NSK 60BWKH11 axle bearing and hub assembly is engineered to meet the specific requirements of Acura and Honda vehicles such as the Accord and TSX. This non-driven hub assembly incorporates a magnetic encoder ABS tone ring and sensor, which provides accurate wheel speed signals to the vehicle’s anti-lock braking system. The assembly features a 4-bolt mounting flange with a 101.6 mm bolt circle diameter and a 5-stud wheel flange with a 114.3 mm bolt circle diameter, ensuring secure and precise mounting. The brake pilot diameter of 64 mm and flange offset of 58.8 mm are designed to maintain proper alignment and fitment with the vehicle’s braking components. The generation 3 design reflects improvements in bearing technology for enhanced performance and longevity.

Common Applications and Problem Resolution

• Replacement for worn or damaged axle bearing and hub assemblies on Acura Accord and Honda TSX
• Restores proper ABS functionality by providing accurate magnetic encoder signals
• Eliminates wheel noise or vibration caused by faulty bearings
• Corrects wheel alignment issues related to hub flange wear or damage
• Prevents premature brake rotor wear by maintaining proper hub and brake pilot alignment

Installation Notes and Tips

• Ensure compatibility with Acura Accord and Honda TSX models before installation
• Use proper torque specifications for M12x1.25 flange bolts and M12x1.5 wheel studs
• Inspect surrounding suspension and braking components during replacement
• Verify ABS sensor connection and functionality after installation
• Follow manufacturer guidelines for bearing preload and hub assembly installation

Quality Assurance and Warranty

NSK manufactures the 60BWKH11 axle bearing and hub assembly to meet stringent quality standards, ensuring reliable performance and durability. This part is designed to OEM specifications for Acura and Honda vehicles. While specific warranty details may vary, NSK products typically include coverage against defects in materials and workmanship. Consult NSK or your parts provider for exact warranty terms related to this assembly.
