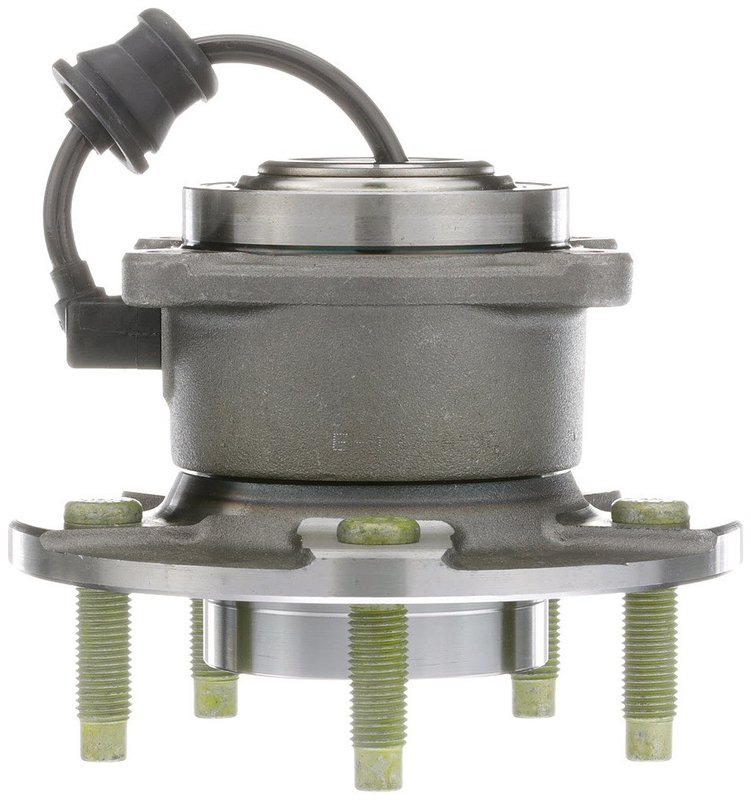

NSK 60BWKHS01 Wheel Bearing and Hub Assembly - Rear

Reliable Wheel Bearing and Hub Assembly for Chevrolet Equinox and More

The NSK 60BWKHS01 wheel bearing and hub assembly is designed for precise fitment on select Chevrolet, Pontiac, and Saturn models. Engineered to support ABS-equipped drivetrains, this assembly ensures consistent performance and safety for vehicles like the Chevrolet Equinox, Pontiac Torrent, and Saturn Vue.

• Compatible with Chevrolet Equinox, Pontiac Torrent, and Saturn Vue
• ABS equipped with sensor-type tone ring for accurate wheel speed detection
• Driven hub assembly with 33 splines for secure drivetrain connection
• Flange bolt hole quantity: 4 with M10x1.5 bolt hole size
• Wheel stud quantity: 5 with M12x1.5 stud size for reliable wheel mounting
• Flange diameter of 150 mm and flange offset of 82.5 mm for proper alignment
• Third generation design for improved durability and fitment

Technical Specifications and Features

This NSK wheel bearing and hub assembly (part number 60BWKHS01) features a 100 mm bolt circle diameter on the mounting flange and a 115 mm bolt circle diameter on the wheel flange. The brake pilot diameter measures 70.6 mm, while the hub pilot diameter is 79 mm, ensuring precise centering during installation. The wheel pilot diameter is 70.1 mm, supporting stable wheel positioning. The assembly is designed as a driven hub, incorporating 33 splines to match the vehicle’s drivetrain requirements. The ABS sensor tone ring integrated into the assembly supports the vehicle’s anti-lock braking system for enhanced safety and control.

Applications and Problem Solving

• Replaces worn or damaged wheel bearing and hub assemblies on Chevrolet Equinox, Pontiac Torrent, and Saturn Vue
• Addresses wheel noise, vibration, or roughness caused by bearing wear
• Restores proper ABS sensor function to prevent warning lights and braking issues
• Corrects wheel alignment problems related to hub flange or pilot diameter wear
• Improves drivetrain engagement and reduces spline wear in driven hubs

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the bolt circle diameters and flange dimensions match the vehicle specifications. Use proper torque settings for the M10x1.5 flange bolts and M12x1.5 wheel studs to avoid damage. Inspect the ABS sensor connector and wiring during installation to maintain sensor functionality. It is recommended to replace the assembly on both sides to maintain balanced performance.

Quality Assurance and Warranty

NSK manufactures this wheel bearing and hub assembly to meet OEM standards, ensuring reliable fit and function. The part number 60BWKHS01 undergoes rigorous quality control to provide consistent performance in ABS-equipped driveline systems. While specific warranty details may vary, NSK typically offers coverage against manufacturing defects to support long-term vehicle operation.
