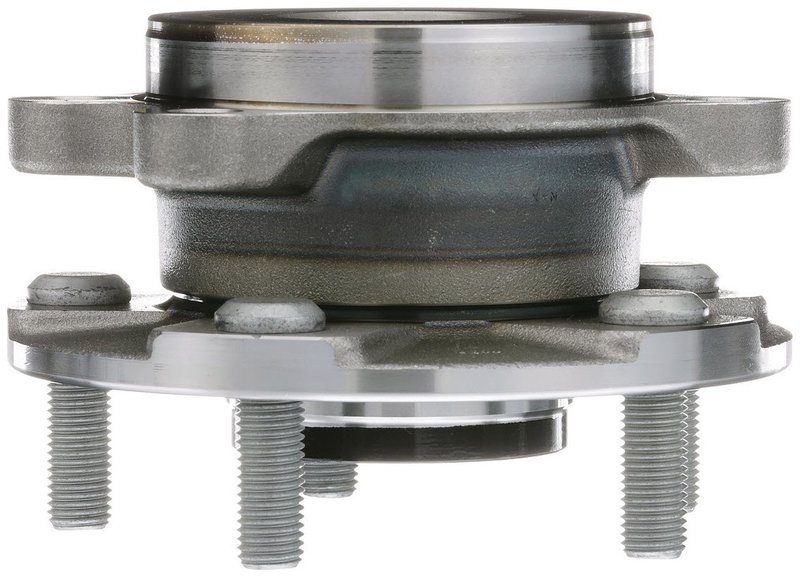

NSK 62BWKH10 Wheel Bearing and Hub Assembly - Front

Reliable Wheel Bearing and Hub Assembly for Toyota and Lexus Vehicles

The NSK 62BWKH10 wheel bearing and hub assembly is designed for precise fitment and reliable performance in select Toyota, Lexus, and Scion models. Engineered with a magnetic encoder for ABS systems, this driven hub assembly supports safe and efficient driveline operation.

• ABS equipped with magnetic encoder for accurate wheel speed sensing
• Driven hub assembly compatible with Toyota Corolla iM, Prius V, RAV4, Scion tC, xB, and Lexus HS250h
• Bolt circle diameter mounting flange: 115.7 mm; wheel flange: 114.3 mm
• Flange bolt hole quantity: 4; wheel stud quantity: 5 with M12x1.5 size
• Brake pilot diameter: 62 mm; hub pilot diameter: 90 mm; wheel pilot diameter: 60 mm
• Flange diameter: 139 mm with 47.5 mm flange offset
• 26 splines for secure drivetrain connection

Technical Details and Specifications

This NSK wheel bearing and hub assembly (part number 62BWKH10) is a generation 3 driven hub designed to meet the exact specifications required by various Toyota, Lexus, and Scion models. The magnetic encoder ABS type ensures compatibility with factory anti-lock braking systems, providing reliable wheel speed data for vehicle stability control. The assembly features a bolt circle diameter of 115.7 mm on the mounting flange and 114.3 mm on the wheel flange, with four flange bolt holes and five M12x1.5 wheel studs for secure attachment. The brake pilot diameter of 62 mm and hub pilot diameter of 90 mm ensure proper alignment and fitment. With 26 splines, this hub assembly maintains a strong connection to the drivetrain, supporting smooth power transfer.

Compatible Vehicles and Applications

This wheel bearing and hub assembly is compatible with the following makes and models:

• Toyota Corolla iM
• Toyota Prius V
• Toyota RAV4
• Scion tC
• Scion xB
• Lexus HS250h

It is designed specifically for driven axle positions and is ABS equipped with a magnetic encoder, making it suitable for vehicles requiring precise wheel speed monitoring.

Common Issues Addressed by This Hub Assembly

• Eliminates wheel bearing noise and vibration caused by wear or damage
• Restores proper ABS sensor function with integrated magnetic encoder
• Resolves wheel hub looseness and improves steering stability
• Prevents uneven tire wear due to faulty hub alignment
• Corrects drivetrain engagement issues related to spline damage

Installation Notes and Tips

When installing the NSK 62BWKH10 wheel bearing and hub assembly, ensure the following:

• Verify compatibility with your vehicle’s make, model, and driven axle position
• Use proper torque specifications for flange bolts and wheel studs (M12x1.25 and M12x1.5 respectively)
• Inspect the ABS sensor wiring and connectors for damage before reassembly
• Clean mounting surfaces thoroughly to ensure proper fit and prevent premature wear
• Follow manufacturer guidelines for wheel pilot and brake pilot alignment

Quality Assurance and Warranty

NSK manufactures this wheel bearing and hub assembly to meet OEM standards for durability and performance. The part number 62BWKH10 undergoes rigorous quality control to ensure precise fitment and reliable operation. While specific warranty details may vary, NSK typically offers coverage against defects in materials and workmanship, providing confidence in the product’s longevity and function.
