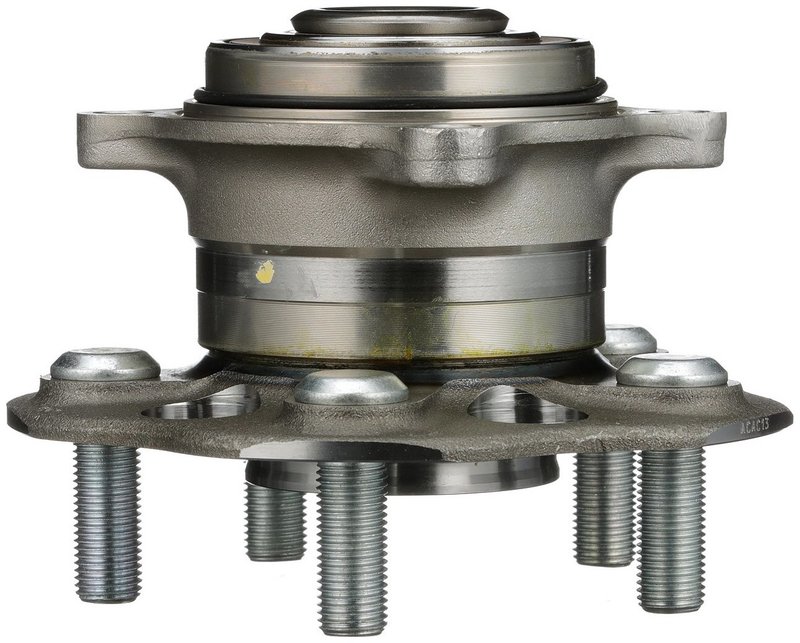

NSK 64BWKH14 Axle Bearing and Hub Assembly - Rear

Overview of NSK Axle Bearing and Hub Assembly 64BWKH14

The NSK Axle Bearing and Hub Assembly 64BWKH14 is designed specifically for Honda Odyssey models, providing reliable performance and precise fitment. This non-driven hub assembly features an integrated magnetic encoder for ABS systems, ensuring accurate wheel speed monitoring.

• ABS equipped with magnetic encoder for enhanced safety
• Bolt circle diameter mounting flange: 112 mm
• Bolt circle diameter wheel flange: 120 mm
• Flange bolt hole quantity: 4 with M12x1.25 thread size
• Wheel stud quantity: 5 with M14x1.5 size
• Brake pilot diameter: 70 mm
• Flange diameter: 160 mm with 62.2 mm offset
• Hub pilot diameter: 88 mm and wheel pilot diameter: 64 mm
• Designed as a non-driven axle bearing and hub assembly
• Generation 3 design for improved durability

Detailed Product Description

This NSK axle bearing and hub assembly (part number 64BWKH14) is engineered to meet the specific requirements of Honda Odyssey vehicles. The assembly includes a magnetic encoder ABS tone ring, which works with the vehicle’s ABS system to provide precise wheel speed data, enhancing braking performance and vehicle stability. The mounting flange features a 112 mm bolt circle diameter with four M12x1.25 threaded bolt holes, while the wheel flange has a 120 mm bolt circle diameter with five M14x1.5 wheel studs, ensuring secure attachment to the wheel hub. The brake pilot diameter of 70 mm and flange diameter of 160 mm with a 62.2 mm offset are designed to match OEM specifications for proper brake component alignment. This non-driven hub assembly is part of NSK’s third generation of axle bearing and hub assemblies, offering improved reliability and fitment accuracy for the Honda Odyssey.

Common Applications and Problem Resolution

• Replacement for worn or damaged axle bearing and hub assemblies on Honda Odyssey
• Restores proper ABS functionality with integrated magnetic encoder tone ring
• Eliminates wheel noise and vibration caused by faulty bearings
• Corrects wheel alignment issues related to hub flange wear
• Prevents premature brake component wear by maintaining proper brake pilot diameter

Installation Notes and Tips

• Ensure compatibility with Honda Odyssey models before installation
• Use proper torque specifications for M12x1.25 mounting flange bolts and M14x1.5 wheel studs
• Inspect ABS sensor wiring and connectors during installation to avoid sensor errors
• Clean mounting surfaces thoroughly to ensure proper fit and prevent premature wear
• Verify wheel pilot and hub pilot diameters for correct wheel centering

Quality Assurance and Warranty

NSK axle bearing and hub assemblies are manufactured to meet strict quality standards, ensuring durability and reliable performance. The 64BWKH14 part undergoes rigorous testing to comply with OEM specifications for Honda Odyssey vehicles. While specific warranty details may vary, NSK products typically include a limited warranty covering defects in materials and workmanship under normal use.
