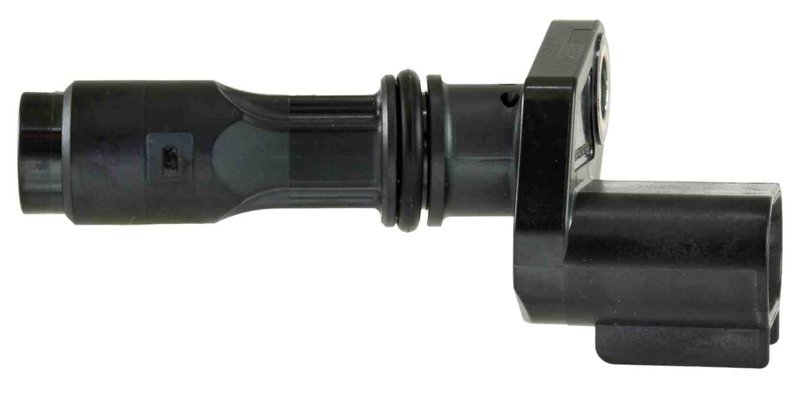

NTK EC0320 Engine Camshaft Position Sensor

Engine Camshaft Position Sensor Overview

NTK EC0320 is an engine camshaft position sensor built for import and domestic applications that require OE-level signal accuracy. It uses a 3-terminal blade connection with a single oblong female connector and a regular-grade design for straightforward replacement service.

Compatible With Chevrolet Equinox, Pontiac Torrent, Chevrolet Impala, Chevrolet Malibu, Chevrolet Uplander, Pontiac G6, Pontiac Montana, Saturn Aura, Saturn Vue, Buick Terraza, Chevrolet Monte Carlo, and Saturn Relay applications listed below. This part cross-references Standard Ignition PC653 and Dorman - OE Solutions 907-736 for the same application.

Key Features

• Engine camshaft position sensor for ignition and engine timing signal input
• 3-terminal blade layout with one female connector
• Oblong connector shape for application-specific fitment
• Regular-grade replacement part
• NTK EC0320 part number for catalog matching and service lookup

Fitment Details

• Fits 2006-2008 Chevrolet Impala, N/A. Possible relearn procedure required. Consult your factory service information resource for additional information.
• Fits 2006-2008 Chevrolet Malibu, N/A. Possible relearn procedure required. Consult your factory service information resource for additional information.
• Fits 2007-2008 Chevrolet Malibu, N/A.
• Fits 2007-2009 Chevrolet Equinox, N/A. Possible relearn procedure required. Consult your factory service information resource for additional information.
• Fits 2006-2008 Chevrolet Uplander, N/A. Possible relearn procedure required. Consult your factory service information resource for additional information.
• Fits 2006-2007 Chevrolet Monte Carlo, N/A. Possible relearn procedure required. Consult your factory service information resource for additional information.
• Fits 2007-2009 Pontiac Torrent, N/A. Possible relearn procedure required. Consult your factory service information resource for additional information.
• Fits 2006-2008 Pontiac G6, N/A. Possible relearn procedure required. Consult your factory service information resource for additional information.
• Fits 2006-2008 Pontiac Montana, N/A. Possible relearn procedure required. Consult your factory service information resource for additional information.
• Fits 2007-2008 Saturn Aura, N/A. Possible relearn procedure required. Consult your factory service information resource for additional information.
• Fits 2008 Saturn Vue, N/A. Possible relearn procedure required. Consult your factory service information resource for additional information.
• Fits 2006-2007 Buick Terraza, N/A. Possible relearn procedure required. Consult your factory service information resource for additional information.
• Fits 2006-2007 Saturn Relay, N/A. Possible relearn procedure required. Consult your factory service information resource for additional information.

Common Replacement Uses

• Restores camshaft position signal loss or erratic sensor output
• Addresses hard starting caused by incorrect cam timing input
• Helps resolve check engine light concerns tied to cam sensor faults
• Supports repair of drivability issues related to engine synchronization

Installation Notes

Verify connector style, terminal count, and application notes before installation. Some listed vehicles note a possible relearn procedure after replacement, so consult factory service information for the exact reset or relearn steps. The part number EC0320 should be matched to the catalog application before service.

Quality Assurance

NTK draws on more than 80 years of automotive experience and OE sensor development. EC0320 is manufactured to meet or exceed OE specifications and is tested under thermal shock, vibration, and OBD verification conditions.
