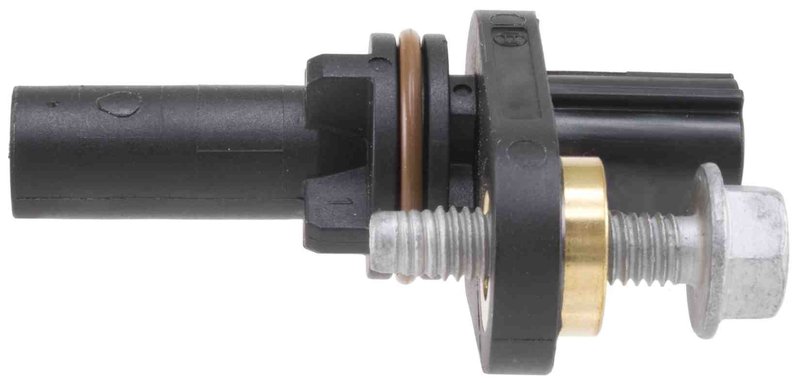

NTK EH0406 Engine Crankshaft Position Sensor

NTK Crankshaft Position Sensor Overview

The NTK Engine Crankshaft Position Sensor EH0406 is a technical sensor built for import and domestic applications that require OE-level signal accuracy. It uses a rectangular female connector with three male blade terminals and a compact sensor body for direct replacement service.

Compatible With Buick Enclave, Chevrolet Traverse, GMC Acadia, Saturn Outlook, and other listed applications. This part number, EH0406, is backed by NTK’s OE-supplier experience and extensive testing standards.

Key Features

• Engine crankshaft position sensor for ignition and engine management systems
• Rectangular connector with one connector and three blade terminals
• Female connector and male terminal configuration
• Compact 0.800 sensor body diameter
• NTK technical sensor coverage for a wide range of import and domestic vehicles

Detailed Description

EH0406 is an NTK crankshaft position sensor engineered to meet or exceed OE specifications for vehicles that rely on precise crankshaft signal input. It is listed for 2007-2010 Buick Enclave, 2009-2010 Chevrolet Traverse, 2007-2010 GMC Acadia, 2007-2010 Saturn Outlook, 2008-2009 Chevrolet Equinox, 2008-2009 Chevrolet Malibu, 2007-2009 Pontiac G6, 2008-2009 Pontiac G8, 2008-2009 Pontiac Torrent, 2007-2009 Saturn Aura, 2008-2009 Saturn Vue, 2008-2009 Cadillac CTS, 2007-2009 Cadillac SRX, 2008-2009 Cadillac STS, 2008-2010 Chevrolet Captiva Sport, 2009-2010 Suzuki Grand Vitara, and 2007-2009 Suzuki XL-7. Possible relearn procedure required on select applications; consult factory service information before installation. This part cross-references Bosch 0261210395 and Standard Ignition PC566 for the same application.

Common Issues This Sensor Can Address

• Crankshaft signal loss affecting engine timing input
• Intermittent stalling related to sensor signal interruption
• Hard starting caused by inaccurate crank position data
• Check engine light conditions tied to crankshaft sensor faults
• Driveability problems from inconsistent engine speed information

Installation Notes and Tips

Verify connector shape, terminal count, and sensor body dimensions before installation. Some listed vehicles may require a crankshaft position sensor relearn procedure after replacement, so follow the factory service manual for the exact service steps. Confirm the application against the vehicle identification and service information for the specific Buick Enclave, Chevrolet Traverse, or GMC Acadia configuration.

Quality Assurance

NTK is part of NGK’s automotive family and is recognized as an OE supplier with a full line of technical sensors in the aftermarket. EH0406 is manufactured and tested under thermal shock, vibration, and OBD verification conditions to meet or exceed OE specifications.
