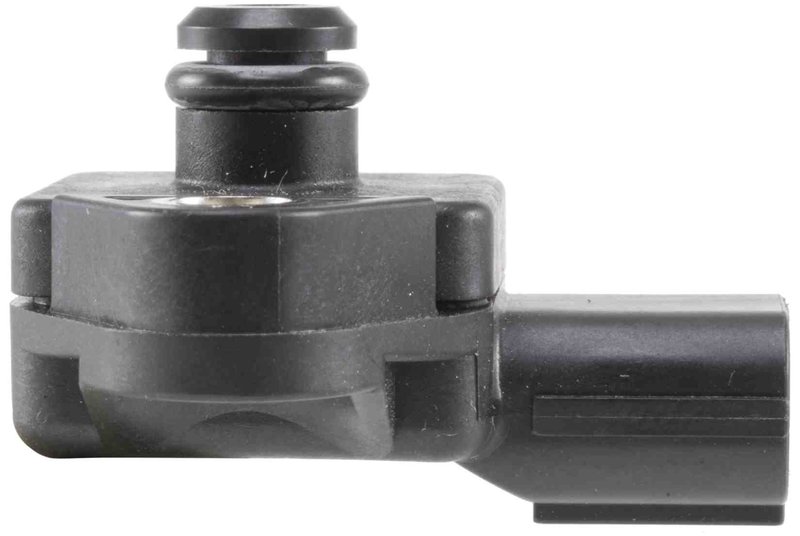

NTK MA0094 Manifold Absolute Pressure Sensor

NTK MAP Sensor for Honda and Acura Applications

The NTK Manifold Absolute Pressure Sensor MA0094 provides direct-fit replacement coverage for select Honda, Acura, and Saturn vehicles. Built around OE-focused sensor technology, it supports accurate manifold pressure input for engine management systems that rely on precise load data.

NTK’s technical sensor line extends the brand’s OE experience into the aftermarket, with coverage for import and domestic vehicles. The MA0094 is part of that line and is manufactured to meet or exceed OE specifications after testing that includes thermal shock, vibration, and OBD verification.

Key Features

• Manifold Absolute Pressure Sensor for engine load and pressure signal input
• Blade terminal design with 3 terminals
• 1 female connector with rectangular shape
• 1 port configuration for direct replacement use
• OE-focused construction from NTK, The Sensor Specialist
• Part number MA0094 for easy catalog matching

Product Details

The NTK MA0094 MAP sensor is built for vehicles that depend on stable manifold pressure readings to manage fuel delivery, ignition timing, and drivability. It is a direct replacement for select 2001-2007 Honda Civic, CR-V, Odyssey, Pilot, Element, Accord, Acura MDX, RSX, TSX, TL, and Saturn Vue applications. This part cross-references Standard Ignition AS191 for the same application.

As part of NTK’s technical sensor lineup, MA0094 reflects the brand’s OE background and application coverage for import and domestic platforms. If you are servicing a Honda Civic MAP sensor, Acura MDX MAP sensor, or Honda CR-V manifold absolute pressure sensor, this part number MA0094 is built to match the original sensor style and electrical interface.

Common Issues This Sensor Can Address

• Erratic idle caused by inaccurate manifold pressure input
• Hesitation or poor throttle response during acceleration
• Check engine light related to MAP sensor circuit or signal faults
• Rough running from incorrect engine load readings
• Fuel trim problems tied to faulty pressure data

Installation Notes and Tips

Verify connector shape, terminal count, and port layout before installation. The MA0094 uses a 1-connector, 3-terminal blade-style configuration with a rectangular female connector, so matching the original sensor connection is important. Confirm vehicle application by year, make, and model before replacing the sensor, especially on Honda Accord, Honda Civic, and Acura MDX platforms.

After installation, clear any stored diagnostic trouble codes and confirm that the engine control system is reading manifold pressure correctly. For best results, inspect the intake system for vacuum leaks or damaged wiring that could affect sensor performance.

Quality Assurance

NTK manufactures this MAP sensor to meet or exceed OE specifications and validates sensor performance through thermal shock, vibration, and OBD testing. With more than 80 years of automotive experience behind the NGK family of products, NTK supports OE-style sensor coverage for modern engine management systems.
