Nugeon 97-01756B Disc Brake Caliper - Front Left

Front Left Reman Caliper for Toyota and Lexus

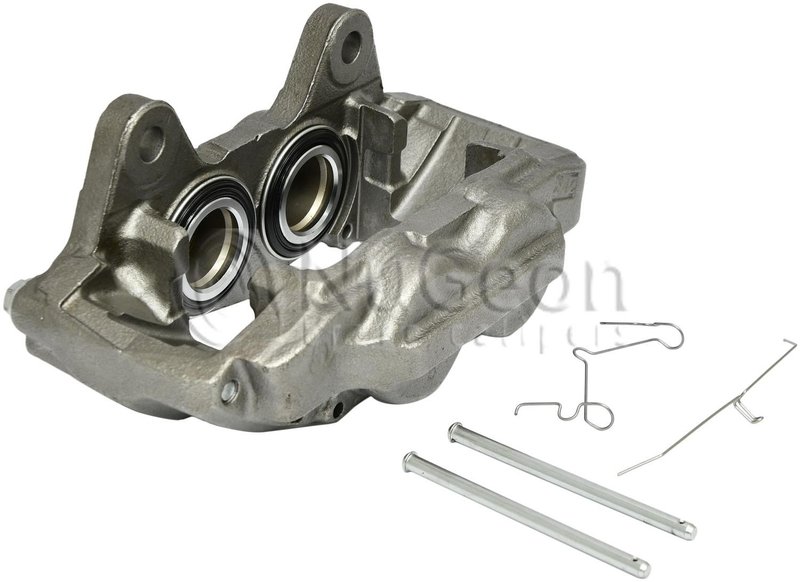

Nugeon 97-01756B is a remanufactured front left disc brake caliper built for select Toyota 4Runner and Lexus GX460 applications. It is a reman caliper with installation hardware and is configured with a grey rust-preventative finish, cast iron housing, and a 4-piston design for the listed front-left fitments.

Key Features

• Fits 2016-2024 Toyota 4Runner, front left
• Fits 2016-2023 Lexus GX460, front left
• Fits 2015 Toyota 4Runner, front left, from 06/15
• Remanufactured disc brake caliper with rust-preventative finish
• Cast iron caliper body with steel pistons
• Bleeder screw included
• Dust boots included
• Brake pad and caliper hardware included
• Brake pad FMSI number D976
• Inlet fitting type: tube seat, M10-1.0 inlet thread

Product Details

This Nugeon reman caliper, part number 97-01756B, is built around an Ate caliper design and uses a 48 mm piston specification with four pistons total. The grey finish adds rust prevention, while the included bleeder screw, dust boots, and installation hardware support a cleaner brake service on the front left side. For shoppers searching for a front left brake caliper for Toyota 4Runner or Lexus GX460, 97-01756B matches the listed OE-style application details and pad fitment reference.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Addresses

• Brake fluid leakage at the caliper body or bleeder area
• Uneven braking caused by worn piston seals or internal corrosion
• Sticking or dragging front brake operation
• Reduced braking performance from a damaged or worn caliper
• Noise or pad fitment issues tied to caliper wear hardware

Installation Notes

Verify front left fitment before installation on 2016-2024 Toyota 4Runner, 2016-2023 Lexus GX460, and 2015 Toyota 4Runner from 06/15. Confirm the brake hose inlet uses the M10-1.0 tube-seat connection and match the brake pad FMSI number D976 where applicable. Bleed the brake system after installation and inspect all sealing surfaces, banjo bolt connections, and copper crush washers during assembly.

Quality Assurance

Nugeon remanufactured calipers are rebuilt for direct replacement use in the specified brake application. Part number 97-01756B is supplied with the listed hardware and component details for the confirmed front left fitments on Toyota 4Runner and Lexus GX460 models.
