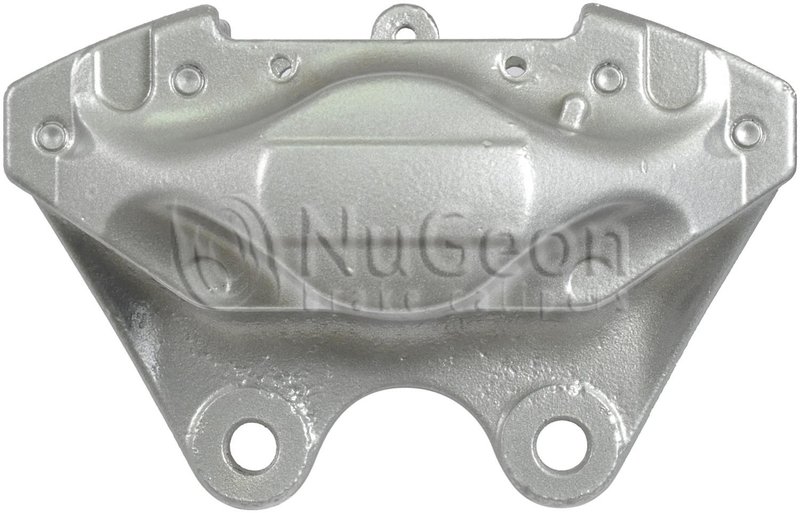

Nugeon 97S02768A Disc Brake Caliper - Rear Left

Rear Left Reman Brake Caliper for Mercedes-Benz ML

Nugeon 97S02768A is a remanufactured rear left disc brake caliper built for select Mercedes-Benz ML applications. It is a silver, powder-coated aluminum caliper with dual 40 mm aluminum pistons, a bleeder screw, dust boots, and installation hardware for the brake pad side where applicable.

Compatible With 2000-2001 Mercedes-Benz ML430, rear left; 2000-2003 Mercedes-Benz ML55 AMG, rear left; and 2002-2005 Mercedes-Benz ML500, rear left. This Nugeon reman caliper is built around the original housing cast numbers 20.7281.03 / 20.7282.03 for direct application matching.

Key Features

• Remanufactured disc brake caliper for rear left placement
• Silver powder-coated finish for corrosion resistance and a clean OE-style appearance
• Aluminum casting with aluminum pistons for consistent brake response
• Includes bleeder screw with M8-1.25 thread
• M10-1.0 inlet port thread size
• Dust boots included
• Brake pad installation hardware included where applicable
• Housing cast numbers: 20.7281.03 / 20.7282.03

Product Details

Nugeon’s Reman Caliper w/ Installation Hardware line focuses on restoring brake hydraulic function with application-specific remanufactured components. Part number 97S02768A is a rear left disc brake caliper for Mercedes-Benz ML430, ML55 AMG, and ML500 models listed above. The caliper uses a two-piston aluminum design with a 2-inch (40 mm) piston diameter, a powder-coated silver finish, and a plug-style inlet fitting. It is supplied without pads, bracket, or anti-squeal shims.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Brake Issues This Caliper Can Address

• Uneven rear braking caused by a sticking or seized caliper
• Brake fluid leakage at the caliper body or bleeder area
• Poor pedal feel from worn internal seals or piston wear
• Corrosion-related caliper binding on the rear left corner
• Brake drag or reduced wheel rotation from a failing hydraulic caliper

Installation Notes

Verify rear left fitment by matching the vehicle year, model, and housing cast numbers before installation. Inspect the brake hose connection, bleeder screw threads, and mounting surfaces for wear or contamination. Transfer or replace any vehicle-specific brake pad hardware as needed, and bleed the brake system thoroughly after installation to remove air from the hydraulic circuit.

Quality Assurance

This Nugeon remanufactured caliper is rebuilt for application-specific brake service and finished with a powder coat to support long-term durability in normal road use. The aluminum housing, included dust boots, and supplied bleeder screw help restore proper caliper operation on the specified Mercedes-Benz ML rear left applications.
