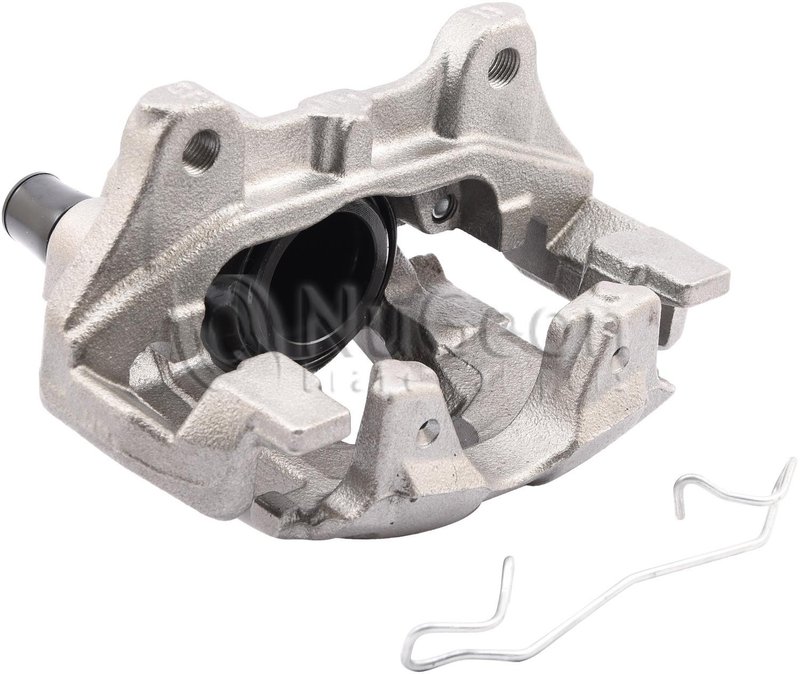

Nugeon 99-02909B Disc Brake Caliper - Front Left

Reman Caliper for Smart Fortwo Front Left

Nugeon 99-02909B is a remanufactured disc brake caliper for the front left position on 2016-2018 Smart Fortwo models. This reman caliper with installation hardware is built for direct replacement service and includes the key components needed for a front brake hydraulic repair.

Key Features

• Remanufactured disc brake caliper for front left fitment
• Fits 2016-2018 Smart Fortwo, front left
• Supplied with mounting bracket for the listed application
• Grey caliper with rust preventative finish
• Cast iron housing with steel piston
• Bleeder screw included
• Caliper slides, dust boots, and pad hardware included
• Inlet thread size: M10-1.0
• Piston diameter: 48 mm (1.89 in.)

Product Details

The Nugeon 99-02909B reman caliper is built around a cast iron bracket and housing with a single steel piston for front brake service. It includes the bracket, caliper slides, dust boots, and brake pad installation hardware, along with a bleeder screw for serviceability. The line-style inlet fitting and M10-1.0 inlet thread size support the specified Smart Fortwo front left application. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

Common Brake Issues It Can Address

• Uneven front brake pad wear on the Smart Fortwo
• Brake fluid leakage at the caliper body or bleeder area
• Sticking or seized caliper slide movement
• Reduced braking response from a worn piston or seal assembly
• Corrosion-related caliper performance loss

Installation Notes

Verify front left position, inlet thread size, and bracket style before installation. Transfer or connect the brake line using the correct banjo bolt and copper crush washers where applicable, and bleed the brake system after installation. Inspect pads, rotors, and hoses for wear or damage before returning the vehicle to service. Fits 2016-2018 Smart Fortwo, front left.

Quality Assurance

Nugeon remanufactured brake components are rebuilt for replacement service using inspected castings and serviceable hardware. Part number 99-02909B is intended for the listed Smart Fortwo front left application and should be matched to the vehicle by year, model, and position before ordering.
