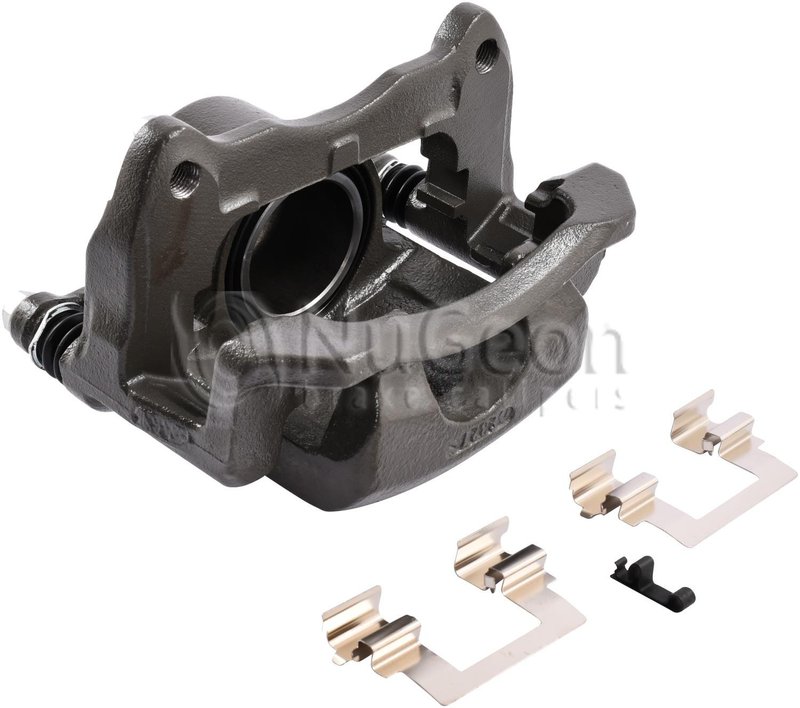

Nugeon 99P01633B Disc Brake Caliper - Front Right

Front Right Disc Brake Caliper for Corolla, Matrix, Vibe

Nugeon TechShield 360 (tm) part number 99P01633B is a remanufactured front right disc brake caliper supplied with a mounting bracket for select 2003-2008 Toyota Corolla, Toyota Matrix, and Pontiac Vibe applications. It is built for direct brake hydraulic replacement where the original caliper has seized, leaked, or worn unevenly.

Key Features

• Remanufactured front right disc brake caliper
• Supplied with mounting bracket
• Cast iron housing with grey rust-preventative finish
• Single 57 mm steel piston
• Bleeder screw included with M7-1.0 thread
• Banjo bolt inlet with M10-1.0 thread
• Caliper slides, dust boots, hardware, and brake pad installation hardware included
• Bracket cast number 5723; housing cast numbers 5723, R

Product Details

The Nugeon TechShield 360 (tm) line focuses on brake hydraulic components prepared for direct replacement service. Part number 99P01633B uses a cast iron body, steel piston, and rust-preventative finish to support dependable braking performance in the front right position. This caliper is listed for 2003-2008 Toyota Corolla, 2003-2008 Toyota Matrix, and 2003-2008 Pontiac Vibe models, all in the front right location. If you are replacing a sticking or leaking caliper on a Corolla, Matrix, or Vibe, 99P01633B provides the bracketed configuration required for these applications.

Common Problems This Part Can Address

• Brake fluid leakage at the caliper body or piston seal
• Uneven front brake pad wear caused by a sticking caliper
• Poor braking response from a seized slide or piston
• Corrosion on the original caliper housing or bracket
• Brake pull or drag at the front right wheel

Installation Notes and Tips

Verify the vehicle’s front right brake setup before installation and match the inlet port, bleeder thread, and bracket configuration to the original part. Transfer or replace brake pads as needed, and bleed the hydraulic system after installation to remove air from the brake line. Confirm that the banjo bolt and copper crush washers are correct for the application before final assembly.

Quality Assurance

Nugeon TechShield 360 (tm) remanufactured brake calipers are prepared as replacement hydraulic components for direct-fit service on the listed vehicles. Part number 99P01633B is built with the specified bracket, bleeder screw, slides, dust boots, and hardware shown in the product data for the confirmed applications.
