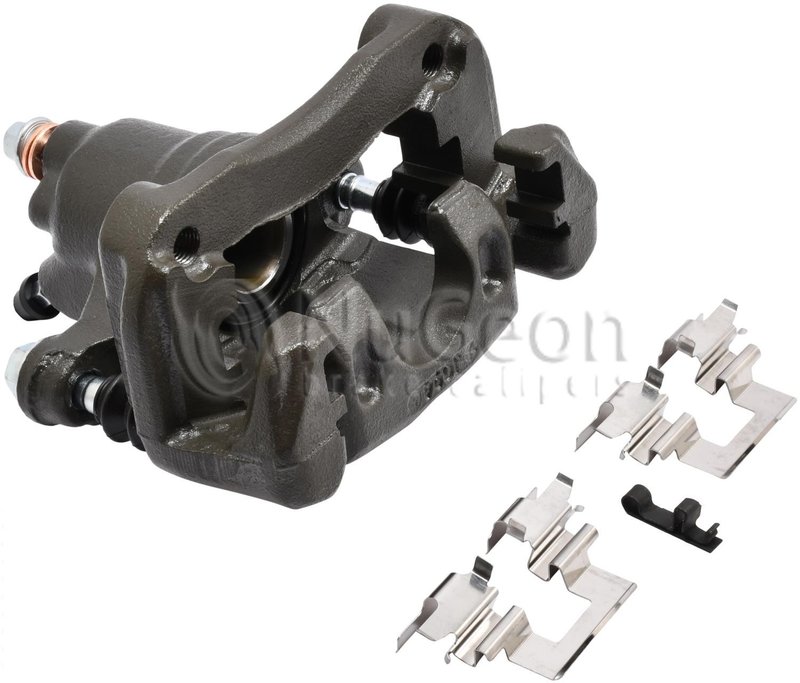

Nugeon 99P01650A Disc Brake Caliper - Rear Right
| Brand | Nugeon 99P01650A |
|---|---|
| Position | Rear Right |
| Anti-Squeal Shims Included | No |
| Bleeder Screw Cap Included | No |
| Bleeder Screw Included | Yes |
| Bleeder Screw Thread (mm) | M7-1.0 x 32 |
| Bleeder Thread Size | M7-1.0 |
| Bracket Cast Numbers | 3836 |
| Bracket Included | Yes |
| Bracket Mounting Bolts Included | No |
| Caliper And Pad Hardware Included | Yes |
| Caliper Color | Grey |
| Caliper Finish | Rust preventative |
| Caliper Slides Included | Yes |
| Casting Material | Cast iron |
| Dust Boots Included | Yes |
| Hardware Included | Yes |
| Housing Cast Numbers | 3836 |
| Inlet Fitting Type | Banjo bolt |
| Inlet Port Thread Size (mm) | M10-1.0 x 23.4 |
| Inlet Thread Size | M10-1.0 |
| New or Remanufactured | Remanufactured |
| Package Contents | Includes brake pad installation hardware w/ banjo bolt & copper c |
| Pads Included | No |
| Piston 1 Outside Diameter (in) | 1 |
| Piston 1 Outside Diameter (mm) | 38 |
| Piston Material | Steel |
| Piston Quantity | 1 |
| Wear Sensors Included | No |
| Product line | TechShield 360 (tm) |
| Fits | Toyota · 13 vehicles |
Remanufactured caliper. Restored for dependable brake hydraulic performance.
Cast iron housing. Provides a sturdy, heat-tolerant caliper body.
Hardware included. Comes with caliper and pad hardware for easier service.
Rear Right Disc Brake Caliper for Toyota
Nugeon TechShield 360 (tm) 99P01650A is a remanufactured rear right disc brake caliper built for specific Toyota applications. It includes the mounting bracket and brake pad installation hardware where applicable, along with a bleeder screw, dust boots, caliper slides, and a rust preventative finish for service-ready replacement.
Compatible With 2002-2006 Toyota Camry, rear right; 2004-2008 Toyota Solara, rear right; and 2005-2007 Toyota Avalon, rear right. This Nugeon 99P01650A caliper is a direct-fit hydraulic brake component for vehicles using the listed rear right configuration.
- Remanufactured disc brake caliper with cast iron housing
- Grey caliper with rust preventative finish
- Includes bracket, caliper slides, dust boots, and hardware
- Single 38 mm steel piston
- Banjo bolt inlet fitting with M10-1.0 inlet thread
- Bleeder screw included with M7-1.0 thread
- Bracket and housing cast numbers: 3836
- TechShield 360 (tm) product line for brake hydraulic replacement applications
This rear right brake caliper is used to restore hydraulic clamping force at the wheel end on Toyota Camry, Toyota Avalon, and Toyota Solara models listed above. The Nugeon 99P01650A is built for rear disc brake service where the original caliper has seized, leaked, or lost consistent piston movement, and it supports proper pad engagement through the included slides and dust protection components.
Common Problems This Caliper Can Address
- Brake fluid leakage from a worn caliper body or piston seal area
- Uneven rear braking caused by a sticking piston or slide hardware
- Corrosion on the caliper housing or bracket
- Poor pedal response from a failing rear hydraulic caliper
- Brake drag or pad wear issues at the rear right wheel
Installation Notes
Verify rear right fitment before installation and confirm the banjo bolt and inlet thread specifications match the vehicle brake line connection. Inspect the brake hose, pads, and rotor condition during replacement, and bleed the hydraulic system after installation to remove air from the circuit. The caliper is supplied with the mounting bracket for the listed applications, and the TechShield 360 (tm) finish helps support corrosion resistance during normal brake service.
Quality Assurance
Nugeon remanufactured brake components are processed for hydraulic brake replacement use and built around the listed OE-style fitment and hardware specifications for the Toyota Camry, Avalon, and Solara applications shown.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Toyota | Solara | Rear Right | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2007 | Toyota | Avalon | Rear Right | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2007 | Toyota | Solara | Rear Right | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2006 | Toyota | Avalon | Rear Right | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2006 | Toyota | Camry | Rear Right | Supplied w/ Mounting Bracket; Mfd in USA; TechShield 360 (tm) |
| 2006 | Toyota | Solara | Rear Right | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2005 | Toyota | Avalon | Rear Right | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2005 | Toyota | Camry | Rear Right | Supplied w/ Mounting Bracket; Mfd in USA; TechShield 360 (tm) |
| 2005 | Toyota | Solara | Rear Right | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2004 | Toyota | Camry | Rear Right | Supplied w/ Mounting Bracket; Mfd in USA; TechShield 360 (tm) |
| 2004 | Toyota | Solara | Rear Right | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2003 | Toyota | Camry | Rear Right | Supplied w/ Mounting Bracket; Mfd in USA; TechShield 360 (tm) |
| 2002 | Toyota | Camry | Rear Right | Supplied w/ Mounting Bracket; Mfd in USA; TechShield 360 (tm) |
