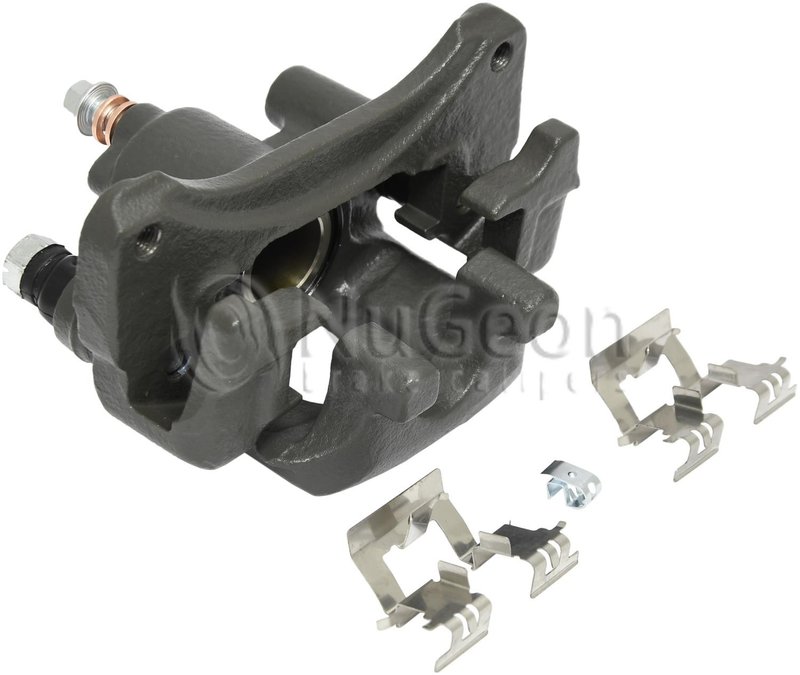

Nugeon 99P01663B Disc Brake Caliper - Rear Left
| Brand | Nugeon 99P01663B |
|---|---|
| Position | Rear Left |
| Anti-Squeal Shims Included | No |
| Bleeder Screw Cap Included | No |
| Bleeder Screw Included | Yes |
| Bleeder Screw Thread (mm) | M7-1.0 x 32 |
| Bleeder Thread Size | M7-1.0 |
| Bracket Cast Numbers | 50 |
| Bracket Included | Yes |
| Bracket Mounting Bolts Included | No |
| Caliper And Pad Hardware Included | No |
| Caliper Color | Grey |
| Caliper Finish | Rust preventative |
| Caliper Slides Included | Yes |
| Casting Material | Cast iron |
| Dust Boots Included | Yes |
| Hardware Included | Yes |
| Housing Cast Numbers | 38, l |
| Inlet Fitting Type | Banjo bolt |
| Inlet Port Thread Size (mm) | M10-1.0 x 23.4 |
| Inlet Thread Size | M10-1.0 |
| New or Remanufactured | Remanufactured |
| Package Contents | Includes brake pad installation hardware w/ banjo bolt & copper c |
| Pads Included | No |
| Piston 1 Outside Diameter (in) | 1 |
| Piston 1 Outside Diameter (mm) | 38 |
| Piston Material | Steel |
| Piston Quantity | 1 |
| Wear Sensors Included | No |
| Product line | TechShield 360 (tm) |
| Fits | Toyota · 3 vehicles |
Remanufactured caliper. Restored to deliver dependable braking performance.
Rust-preventative finish. Helps resist corrosion for longer service life.
Hardware included. Comes with brake pad installation hardware and banjo bolt.
Rear Left Disc Brake Caliper for Toyota Highlander
This Nugeon TechShield 360 disc brake caliper is a remanufactured rear left replacement for 2001-2003 Toyota Highlander models. Part number 99P01663B is built with a cast iron housing, grey rust-preventative finish, and included bracket for a direct-fit brake hydraulic service on the rear left side.
Key Features
- Fits 2001-2003 Toyota Highlander, rear left
- Remanufactured disc brake caliper with TechShield 360 protection
- Cast iron housing with grey rust-preventative finish
- Bracket included for the specified application
- Bleeder screw included with M7-1.0 thread
- Banjo bolt inlet fitting with M10-1.0 inlet thread
- Steel piston with 38 mm outside diameter
- Caliper slides, dust boots, and hardware included
Product Details
Nugeon 99P01663B is a rear left disc brake caliper for the 2001, 2002, and 2003 Toyota Highlander. The TechShield 360 product line focuses on corrosion resistance and service-ready brake hydraulic components, making this caliper a practical OE-style replacement for rear brake repair. It includes the bracket, slides, dust boots, bleeder screw, and hardware noted for the application, along with a banjo bolt inlet connection and a single 38 mm steel piston.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Uses
- Restores rear brake clamping force on a Toyota Highlander
- Addresses sticking or seized caliper movement
- Helps correct brake fluid seepage at the caliper body or bleeder area
- Supports repair of uneven rear brake wear
- Replaces a corroded or damaged rear left caliper assembly
Installation Notes
Fits 2001-2003 Toyota Highlander, rear left. Verify the banjo bolt inlet, M10-1.0 inlet thread, and M7-1.0 bleeder thread before installation. Transfer or replace brake pads as needed, and bleed the hydraulic system after installation to remove air from the rear brake circuit. Confirm bracket and caliper orientation matches the rear left position before final torque.
Quality Assurance
Nugeon TechShield 360 components are remanufactured brake hydraulics built for direct replacement service and corrosion-resistant performance in everyday braking applications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2003 | Toyota | Highlander | AWD | Rear Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2002 | Toyota | Highlander | AWD | Rear Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2001 | Toyota | Highlander | AWD | Rear Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
