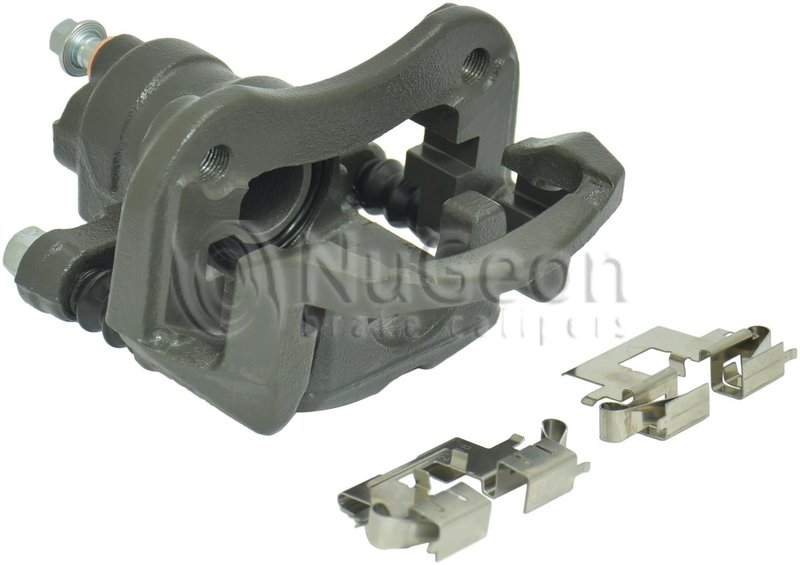

Nugeon 99P01674B Disc Brake Caliper - Rear Left
| Brand | Nugeon 99P01674B |
|---|---|
| Position | Rear Left |
| Anti-Squeal Shims Included | No |
| Bleeder Screw Cap Included | No |
| Bleeder Screw Included | Yes |
| Bleeder Screw Thread (mm) | M7-1.0 x 32 |
| Bleeder Thread Size | M7-1.0 |
| Bracket Cast Numbers | 4107 |
| Bracket Included | Yes |
| Bracket Mounting Bolts Included | No |
| Caliper And Pad Hardware Included | Yes |
| Caliper Color | Grey |
| Caliper Finish | Rust preventative |
| Caliper Slides Included | Yes |
| Casting Material | Cast iron |
| Dust Boots Included | Yes |
| Hardware Included | Yes |
| Housing Cast Numbers | 3849 |
| Inlet Fitting Type | Banjo bolt |
| Inlet Port Thread Size (mm) | M10-1.0 x 23.4 |
| Inlet Thread Size | M10-1.0 |
| New or Remanufactured | Remanufactured |
| Package Contents | Includes brake pad installation hardware w/ banjo bolt & copper c |
| Pads Included | No |
| Piston 1 Outside Diameter (in) | 1 |
| Piston 1 Outside Diameter (mm) | 38 |
| Piston Material | Steel |
| Piston Quantity | 1 |
| Wear Sensors Included | No |
| Product line | TechShield 360 (tm) |
| Fits | Toyota · 10 vehicles |
Remanufactured caliper. Restored for dependable brake hydraulic performance.
Cast iron housing. Provides a sturdy foundation for braking force.
Hardware included. Comes with caliper and pad installation hardware.
Rear Left Disc Brake Caliper for Toyota Highlander
This Nugeon TechShield 360 disc brake caliper is a remanufactured rear left replacement for 2004-2007 Toyota Highlander models. Part number 99P01674B is built with a cast iron housing, grey rust-preventative finish, and included bracket for a direct brake hydraulic service replacement.
TechShield 360 is Nugeon’s product line focused on corrosion resistance and service-ready brake hydraulic components. For this application, the caliper includes a bleeder screw, dust boots, caliper slides, and brake pad installation hardware where applicable, helping support a complete rear brake repair on the Toyota Highlander.
Key Features
- Fits 2004-2007 Toyota Highlander, rear left
- Remanufactured disc brake caliper with bracket included
- Cast iron housing with rust-preventative grey finish
- 38 mm steel piston for rear brake operation
- Bleeder screw included with M7-1.0 thread
- Banjo bolt inlet fitting with M10-1.0 inlet thread
- Dust boots, caliper slides, and hardware included
- Brake pads not included
- Part number 99P01674B
Product Details
Nugeon 99P01674B is a rear left disc brake caliper for the 2004-2007 Toyota Highlander. It is supplied as a remanufactured unit with bracket, steel piston, and corrosion-resistant finish for brake system service where the original rear caliper has worn, seized, or developed hydraulic leakage. The TechShield 360 line emphasizes protective finishing and service-ready components for brake hydraulic replacement work.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Reasons
- Rear brake drag from a sticking piston or slide
- Brake fluid seepage at the caliper body or bleeder area
- Uneven rear pad wear on a Toyota Highlander
- Corrosion on the original rear left caliper assembly
- Soft or inconsistent rear brake pedal response after hydraulic wear
Installation Notes
Verify rear left position, bracket style, inlet thread size, and banjo bolt connection before installation. Transfer or replace copper crush washers where required by the application, and bleed the brake system after installation to remove air from the hydraulic circuit. Confirm pad and rotor condition before returning the vehicle to service.
Quality Assurance
This remanufactured caliper is built with a cast iron housing, steel piston, dust boots, and included bleeder screw for brake hydraulic service. TechShield 360 is Nugeon’s corrosion-focused brake component line for replacement applications such as the Toyota Highlander rear left caliper.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2007 | Toyota | Highlander | Base | 3.3L | V6 | Rear Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2007 | Toyota | Highlander | Limited | 3.3L | V6 | Rear Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2007 | Toyota | Highlander | Sport | 3.3L | V6 | Rear Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2007 | Toyota | Highlander | Base | 2.4L | L4 | Rear Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2006 | Toyota | Highlander | Base | 3.3L | V6 | Rear Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2006 | Toyota | Highlander | Limited | 3.3L | V6 | Rear Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2006 | Toyota | Highlander | Sport | 3.3L | V6 | Rear Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2006 | Toyota | Highlander | Base | 2.4L | L4 | Rear Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2005 | Toyota | Highlander | — | — | — | Rear Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2004 | Toyota | Highlander | — | — | — | Rear Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
