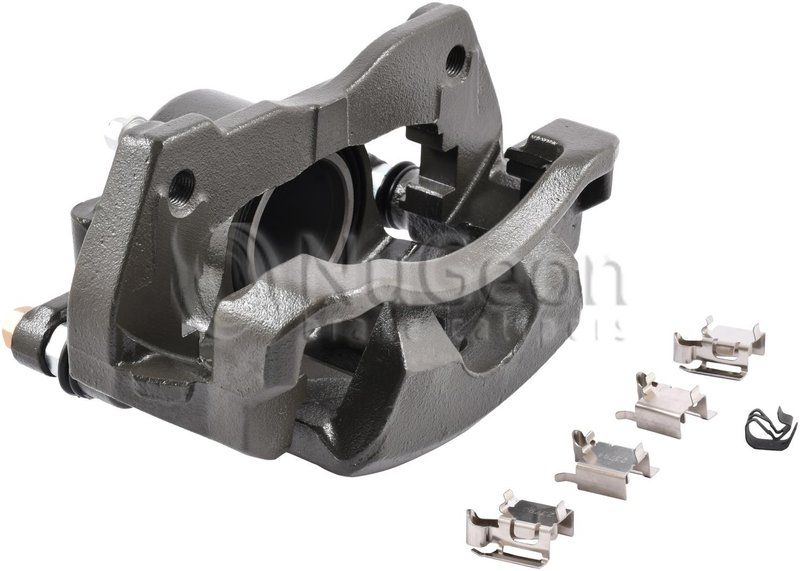

Nugeon 99P01710A Disc Brake Caliper - Front Left
| Brand | Nugeon 99P01710A |
|---|---|
| Position | Front Left |
| Anti-Squeal Shims Included | No |
| Bleeder Screw Cap Included | No |
| Bleeder Screw Included | Yes |
| Bleeder Screw Thread (mm) | M7-1.0 x 32 |
| Bleeder Thread Size | M7-1.0 |
| Bracket Included | Yes |
| Bracket Mounting Bolts Included | No |
| Caliper And Pad Hardware Included | Yes |
| Caliper Color | Grey |
| Caliper Finish | Rust preventative |
| Caliper Slides Included | Yes |
| Casting Material | Cast iron |
| Dust Boots Included | Yes |
| Hardware Included | Yes |
| Housing Cast Numbers | 60-22 |
| Inlet Fitting Type | Banjo bolt |
| Inlet Port Thread Size (mm) | M10-1.0 x 23.4 |
| Inlet Thread Size | M10-1.0 |
| New or Remanufactured | Remanufactured |
| Package Contents | Includes brake pad installation hardware w/ banjo bolt & copper c |
| Pads Included | No |
| Piston 1 Outside Diameter (in) | 2 |
| Piston 1 Outside Diameter (mm) | 60 |
| Piston Material | Steel |
| Piston Quantity | 1 |
| Wear Sensors Included | No |
| Product line | TechShield 360 (tm) |
| Fits | Pontiac, Scion, and Toyota · 26 vehicles |
Remanufactured unit. Restored for dependable brake performance with a cast iron housing.
Hardware included. Comes with caliper and pad hardware, plus a bracket and slides.
Rust preventative finish. Helps protect the caliper from corrosion over time.
Nugeon TechShield 360 Disc Brake Caliper 99P01710A
Nugeon TechShield 360 (tm) disc brake caliper 99P01710A is a remanufactured front left caliper for select Toyota, Scion, and Pontiac applications. It is built with a cast iron housing, steel piston, and rust preventative finish for service-ready brake hydraulics replacement.
Key Features
- Remanufactured disc brake caliper with bracket included
- Front left position for select Corolla, xD, Matrix, and Vibe applications
- 60 mm steel piston with cast iron housing
- Bleeder screw included with M7-1.0 thread
- Banjo bolt inlet with M10-1.0 inlet port thread
- Caliper slides, dust boots, and brake pad installation hardware included
- Grey caliper finish with rust preventative coating
Product Details
The Nugeon TechShield 360 line focuses on brake hydraulic replacement parts built for direct-fit service on covered applications. Part number 99P01710A is a front left disc brake caliper with the mounting bracket supplied, making it a practical replacement for worn, sticking, or leaking calipers on 2009-2019 Toyota Corolla, 2008-2014 Scion xD, 2009-2014 Toyota Matrix, and 2009-2010 Pontiac Vibe models. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What This Caliper Helps Address
- Brake fluid leakage at the caliper body or bleeder area
- Uneven braking caused by a sticking piston or seized slides
- Poor pad contact from worn caliper hardware or damaged dust boots
- Brake pull or drag on the front left corner
- Corrosion-related caliper replacement on high-mileage vehicles
Installation Notes and Tips
Verify the front left position, inlet thread size, and banjo bolt connection before installation. Inspect brake hoses, pads, and rotors during replacement, and bleed the brake system after installation to remove air from the hydraulic circuit. Confirm fitment for your specific Corolla, xD, Matrix, or Vibe by model year before ordering. Part number 99P01710A should be matched to the vehicle application listed above.
Quality Assurance
TechShield 360 (tm) identifies Nugeon’s brake product line for remanufactured hydraulic components with protective finishing and application-specific hardware details. The caliper is supplied with a bleeder screw, slides, dust boots, and pad installation hardware where applicable, supporting a complete service replacement for the listed vehicles.
| Year | Make | Model | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | Toyota | Corolla | Sedan | 1.8L | L4 | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2018 | Toyota | Corolla | — | — | — | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2017 | Toyota | Corolla | — | — | — | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2016 | Toyota | Corolla | — | — | — | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2015 | Toyota | Corolla | — | — | — | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2014 | Scion | xD | — | — | — | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2014 | Toyota | Corolla | — | — | — | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2014 | Toyota | Matrix | — | — | — | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2013 | Scion | xD | — | — | — | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2013 | Toyota | Corolla | — | — | — | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2013 | Toyota | Matrix | — | 1.8L | L4 | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2012 | Scion | xD | — | — | — | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2012 | Toyota | Corolla | — | — | — | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2012 | Toyota | Matrix | — | 1.8L | L4 | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2011 | Scion | xD | — | — | — | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2011 | Toyota | Corolla | — | — | — | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2011 | Toyota | Matrix | — | 1.8L | L4 | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2010 | Pontiac | Vibe | — | 1.8L | L4 | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2010 | Scion | xD | — | — | — | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2010 | Toyota | Corolla | — | — | — | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2010 | Toyota | Matrix | — | 1.8L | L4 | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2009 | Pontiac | Vibe | — | 1.8L | L4 | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2009 | Scion | xD | — | — | — | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2009 | Toyota | Corolla | — | — | — | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2009 | Toyota | Matrix | — | 1.8L | L4 | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
| 2008 | Scion | xD | — | — | — | Front Left | Supplied w/ Mounting Bracket; TechShield 360 (tm) |
