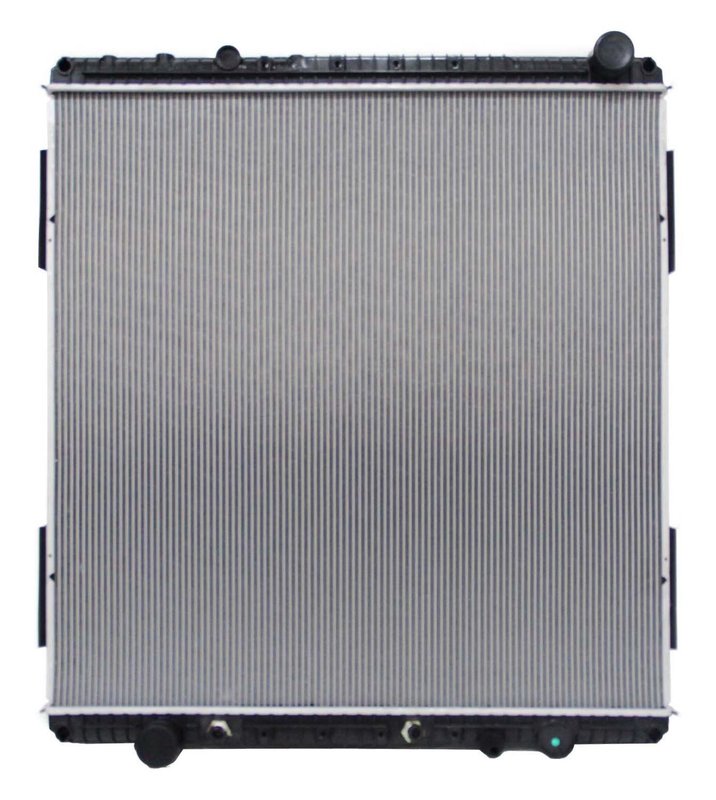

One Stop Solutions 1061 Radiator

Reliable Radiator for Ford Bronco II and Ranger

The One Stop Solutions radiator part number 1061 is engineered to provide dependable cooling performance for Ford Bronco II and Ranger models. Designed with precision, this radiator ensures efficient heat dissipation and supports transmission oil cooling for optimal vehicle operation.

Key Features of One Stop Solutions Radiator 1061

• Hassle free installation for quick replacement
• OE performance with exceptional quality standards
• Engineering enhancements improve cooling efficiency and extend service life
• Components fitted and torqued to factory specifications
• Premium grade tubes, fins, headers, and plastic tanks
• Drop-in fit, form, and function with all necessary fittings
• 100% tested up to three times during production
• Design improvements address original equipment design limitations

Detailed Radiator Specifications and Design

This radiator features a crossflow core design measuring 18 inches in height, 18 1/8 inches in width, and a core thickness of 1 inch. The core is constructed from PA material, paired with durable plastic tanks to balance weight and durability. Both inlet and outlet headers measure 18 5/8 inches in length, with widths of 2 inches and 3 3/16 inches respectively, ensuring proper coolant flow. The inlet diameter is 1 7/16 inches, and the outlet diameter is 1 1/2 inches, matching factory dimensions for the Ford Bronco II and Ranger.

Included is a concentric transmission oil cooler with a diameter of 1 3/4 inches and a 12-inch distance between fittings, supporting transmission fluid temperature regulation. This radiator does not include an engine oil cooler and does not come with a cap.

Applications and Common Issues Addressed

• Replacement for leaking or damaged radiators in Ford Bronco II and Ranger vehicles
• Resolves overheating caused by inefficient cooling systems
• Addresses transmission fluid overheating with integrated oil cooler
• Fixes radiator core corrosion or physical damage
• Improves cooling system reliability after original equipment failures

Installation Notes and Tips

Installation of the One Stop Solutions radiator 1061 is straightforward due to its drop-in design. Ensure all factory fittings are properly torqued to specifications. Verify hose connections match the inlet and outlet diameters for a secure fit. Since the radiator does not include a cap, reuse the existing cap or source a compatible replacement. Check transmission oil cooler fittings for proper sealing during installation.

Quality Assurance and Testing

Each radiator undergoes rigorous testing up to three times during production to ensure leak-free performance and durability. Components are assembled and torqued to factory specifications to maintain OE standards. The design incorporates enhancements to improve cooling efficiency and extend service life, providing a reliable replacement for Ford Bronco II and Ranger cooling systems.
