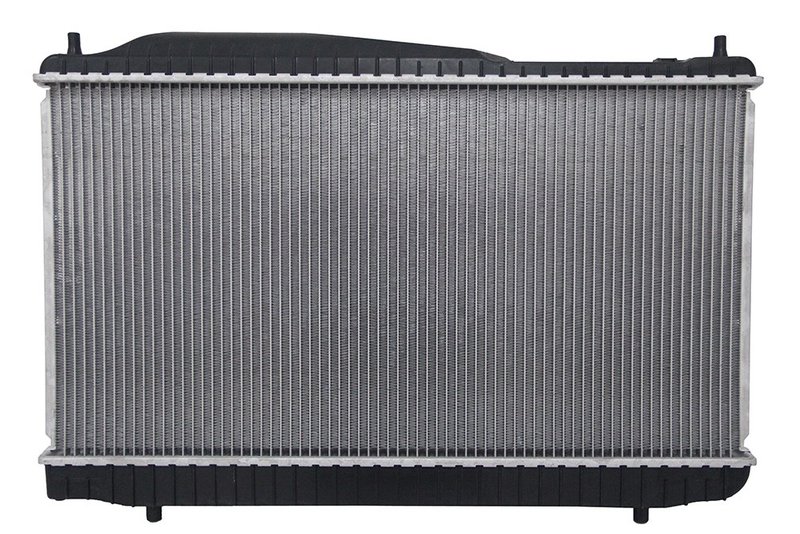

One Stop Solutions 13000 Radiator

Overview of One Stop Solutions Radiator for Suzuki Verona

The One Stop Solutions radiator part number 13000 is designed specifically for the Suzuki Verona, providing reliable engine cooling and transmission oil cooling. Engineered for durability and performance, this radiator ensures efficient heat dissipation to maintain optimal engine temperature under various driving conditions.

• Hassle free installation for quick replacement
• OE performance with exceptional quality materials
• Engineering enhancements for improved cooling and extended service life
• Components fitted and torqued to factory specifications
• Premium grade tubes, fins, headers, and plastic tanks
• Drop-in fit with all necessary fittings and hardware included
• 100% tested up to three times during production
• Design improvements to address original equipment design limitations

Detailed Radiator Specifications and Features

This radiator features a downflow core design with a single core row, measuring 14 9/16 inches in height, 27 1/2 inches in width, and a core thickness of 5/8 inch (16 mm). The core is constructed from PA material, while the tanks are made of durable plastic. Both the inlet and outlet diameters are 1 5/16 inches, with inlet and outlet header lengths of 28 3/8 inches and widths of 1 15/16 inches and 2 3/16 inches respectively.

Included is a plated transmission oil cooler with fittings spaced 11 1/2 inches apart, enhancing the radiator’s ability to manage transmission fluid temperatures. Note that this radiator does not include an engine oil cooler or a radiator cap.

Compatible Vehicles and Applications

This radiator is compatible with Suzuki Verona models, engineered to meet the specific cooling requirements of this vehicle. It is suitable for owners seeking a direct replacement radiator that maintains factory fit, form, and function.

• Overheating issues due to radiator core damage or clogging
• Transmission fluid overheating requiring integrated cooling
• Leaks or cracks in original radiator tanks or headers
• Reduced cooling efficiency from worn or corroded components
• Replacement of failed or underperforming OEM radiators

Installation Notes and Tips

Installation of the One Stop Solutions radiator 13000 is straightforward with a drop-in design that matches factory mounting points. Ensure all fittings and hardware are securely torqued to manufacturer specifications. Verify transmission oil cooler connections are properly sealed to prevent leaks. It is recommended to flush the cooling system before installation to remove debris and contaminants.

Quality Assurance and Warranty

Each radiator undergoes rigorous testing up to three times during production to ensure reliability and performance. Components are assembled to factory specifications to maintain consistent quality. While specific warranty details are not provided, One Stop Solutions products typically meet industry standards for durability and function.
