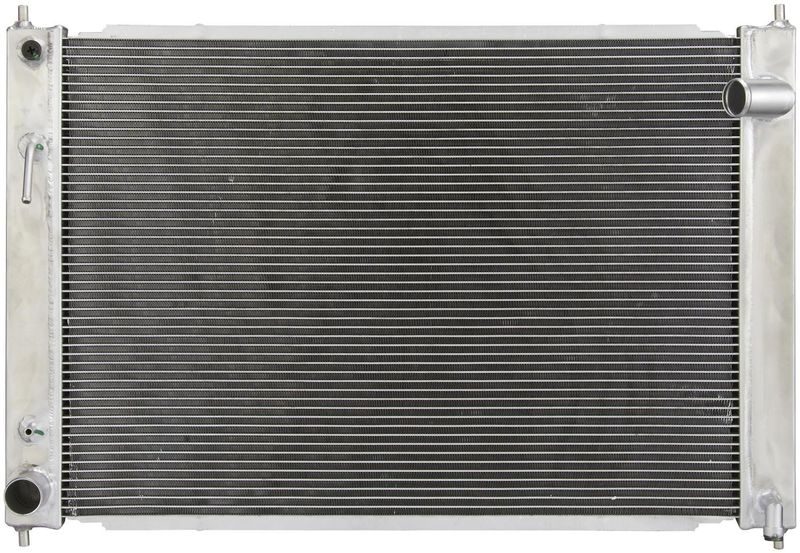

One Stop Solutions 13004 Radiator And A/C Condenser Assembly

Overview of One Stop Solutions Radiator and A/C Condenser Assembly

The One Stop Solutions radiator and A/C condenser assembly, part number 13004, is designed for select INFINITI and Nissan vehicles including the 370Z, G25, G35, G37, Q40, and Q60 models. This crossflow radiator features a durable aluminum tank and a high-quality core to ensure reliable cooling performance and longevity.

• Hassle free installation for direct replacement
• OE performance with engineering enhancements for improved cooling
• Premium grade aluminum tanks and core components
• Includes plated transmission oil cooler with fittings spaced 10 7/16 inches apart
• Core dimensions: 25 3/16" height, 18 1/16" width, 1-9/16" thickness
• Crossflow design for efficient heat dissipation
• Tested up to three times during production for quality assurance

Detailed Product Description

This radiator and A/C condenser assembly from One Stop Solutions (part number 13004) is engineered to meet or exceed original equipment specifications for INFINITI and Nissan vehicles such as the 370Z, G25, G35, G37, Q40, and Q60. The core is constructed with premium materials, featuring an aluminum tank and a core made from high-grade components to optimize heat transfer and durability. The crossflow design enhances cooling efficiency by directing airflow horizontally through the core.

The assembly includes a plated transmission oil cooler with inlet and outlet header widths of 1 15/16 inches and a fitting distance of 10 7/16 inches, supporting effective transmission fluid cooling. The radiator core measures 25 3/16 inches in height, 18 1/16 inches in width, and 1-9/16 inches in thickness, providing ample surface area for heat dissipation. Both inlet and outlet diameters are 1 3/8 inches, matching factory specifications for a seamless fit.

Common Applications and Problem Solving

• Replacement for leaking or damaged radiator cores in INFINITI 370Z and Nissan G35 models
• Restores proper engine and transmission cooling in Q40 and Q60 vehicles
• Addresses overheating issues caused by clogged or corroded radiators
• Solves A/C condenser failures affecting air conditioning performance
• Replaces assemblies with compromised transmission oil coolers to prevent transmission damage

Installation Notes and Tips

This radiator assembly is designed as a direct drop-in replacement, matching original equipment dimensions and fittings. Ensure all connections, including transmission oil cooler lines, are properly secured and torqued to factory specifications. Verify compatibility with your specific INFINITI or Nissan model before installation. No radiator cap is included, so reuse the existing cap or source separately if needed.

Quality Assurance and Testing

Each One Stop Solutions radiator and A/C condenser assembly undergoes rigorous testing up to three times during production to ensure leak-free performance and durability. Components are fitted and torqued to factory specifications to maintain consistent quality. The inclusion of engineering enhancements addresses common design weaknesses found in original parts, contributing to improved cooling efficiency and extended service life.
