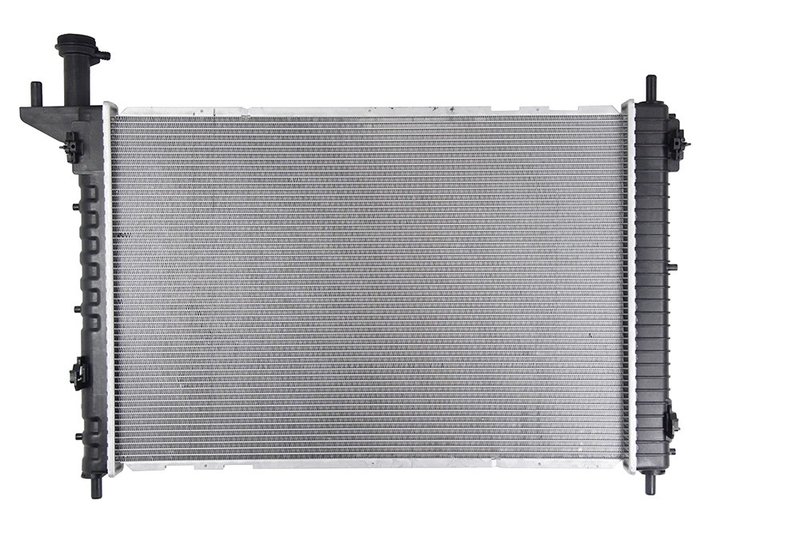

One Stop Solutions 13006 Radiator

Reliable Radiator Replacement for Buick, Chevrolet, GMC, and Saturn

The One Stop Solutions radiator part number 13006 is engineered to provide dependable cooling performance for select Buick, Chevrolet, GMC, and Saturn models. Designed as a direct replacement, this radiator supports optimal engine temperature management and includes a transmission oil cooler for enhanced vehicle operation.

Key Features of One Stop Solutions Radiator 13006

• Hassle free installation with drop-in fit, form, and function
• OE performance and quality with engineering enhancements for improved cooling and durability
• Premium grade core materials including plastic tanks and PA core
• Includes plated transmission oil cooler with fittings spaced 10 inches apart
• Crossflow design with 1 core row for efficient heat dissipation
• Core dimensions: 27 9/16" height, 18 9/16" width, 5/8" thickness
• Inlet and outlet diameters of 1 5/16" with 2 5/16" header widths
• Components fitted and torqued to factory specifications
• 100% tested up to three times during production for quality assurance

Detailed Radiator Description and Specifications

This radiator is designed specifically for crossflow cooling systems and features a single core row constructed from PA material, providing a balance of strength and heat transfer efficiency. The plastic tanks reduce weight while maintaining durability. Both inlet and outlet headers measure 20 1/8" in length and 2 5/16" in width, ensuring compatibility with the vehicle's cooling system. The included plated transmission oil cooler supports transmission fluid temperature regulation, with fittings spaced 10 inches apart for proper hose connection. This radiator does not include an engine oil cooler or cap, focusing on core cooling and transmission oil cooling functions.

Compatible Vehicles and Common Applications

This radiator is compatible with the following makes and models:

• Buick Acadia and Acadia Limited
• Chevrolet Traverse
• GMC Acadia and Acadia Limited
• Saturn Outlook

It is designed to address issues such as:

• Overheating due to radiator core damage or clogging
• Transmission fluid overheating from a faulty or missing transmission oil cooler
• Leaks in plastic tanks or header connections
• Reduced cooling efficiency from worn or corroded components
• Failure of original radiator causing engine temperature fluctuations

Installation Notes and Tips

Installation of the One Stop Solutions radiator 13006 is straightforward due to its drop-in design. Ensure all fittings and hardware are included and torqued to factory specifications. Verify hose connections match the 1 5/16" inlet and outlet diameters and the 10" spacing of transmission oil cooler fittings. It is recommended to flush the cooling system before installation to prevent contamination. Check for any leaks after installation and refill with the appropriate coolant and transmission fluid as needed.

Quality Assurance and Warranty Information

Each radiator undergoes rigorous testing up to three times during production to ensure reliability and performance. Components are assembled and torqued to meet factory specifications, reducing the risk of premature failure. While specific warranty details are not provided, One Stop Solutions products are manufactured to meet or exceed OEM standards, supporting long-term vehicle operation.
