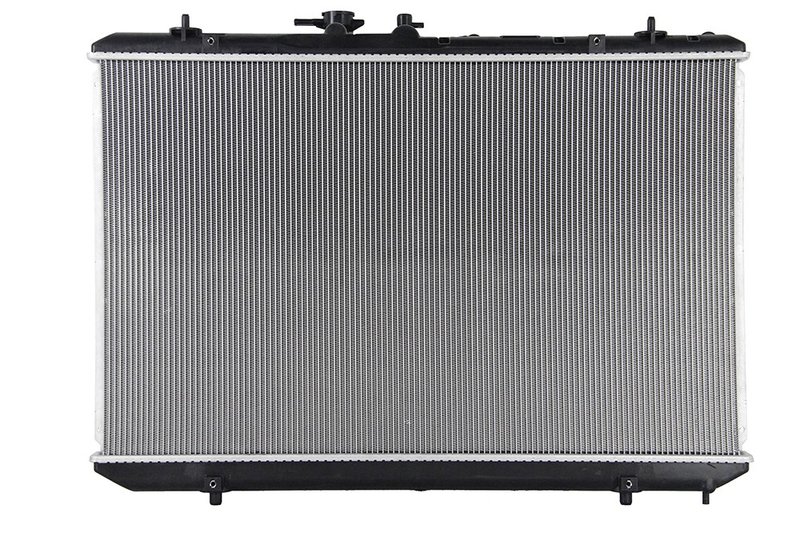

One Stop Solutions 13024 Radiator

Overview of One Stop Solutions Radiator for Toyota Highlander

The One Stop Solutions radiator, part number 13024, is designed specifically for Toyota Highlander models. Engineered to meet original equipment specifications, this radiator ensures reliable cooling performance and durability for your vehicle's engine and transmission system.

• Hassle free installation with drop-in fit, form, and function
• OE performance with engineering enhancements for improved cooling and longer life
• Premium grade core, headers, tanks, and components
• Includes concentric transmission oil cooler for integrated cooling
• Components fitted and torqued to factory specifications
• 100% tested up to three times during production for quality assurance
• Downflow core design with plastic tanks and PA core material

Technical Specifications and Features

This radiator features a core height of 18 11/16 inches, core width of 30 1/8 inches, and a core thickness of 1 inch, providing efficient heat dissipation. The core is constructed from PA material, paired with durable plastic tanks. Both inlet and outlet headers measure 31 3/8 inches in length and 2 inches in width, supporting a 1 3/8 inch diameter for inlet and outlet connections. The radiator includes a concentric transmission oil cooler with a diameter of 1 1/8 inches and a fitting distance of 14 3/4 inches, enhancing transmission fluid cooling. This model is a downflow type with a single core row, designed to optimize coolant flow and heat exchange.

Applications and Common Issues Addressed

• Replaces faulty or leaking radiator in Toyota Highlander vehicles
• Solves overheating problems caused by inefficient cooling
• Addresses transmission fluid overheating with integrated oil cooler
• Resolves coolant leaks from worn or damaged plastic tanks
• Improves engine temperature regulation for consistent performance

Installation Notes and Tips

Installation of the One Stop Solutions radiator 13024 is straightforward due to its drop-in design. Ensure all fittings and hardware are included and properly torqued to factory specifications. Verify compatibility with your Toyota Highlander model year before installation. It is recommended to flush the cooling system and inspect hoses and clamps during replacement to maintain optimal performance.

Quality Assurance and Warranty

Each radiator undergoes rigorous testing up to three times during production to ensure reliability and performance. The components are engineered with enhancements to address original design limitations and extend service life. While a cap is not included, the radiator meets OE standards for fit and function. Warranty details should be confirmed with the distributor or manufacturer.
