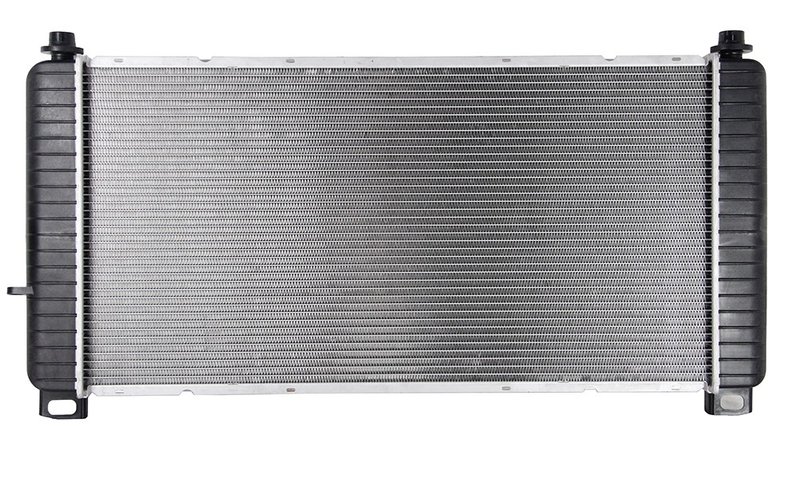

One Stop Solutions 13029 Radiator

Reliable Radiator Replacement for Cadillac, Chevrolet, and GMC Vehicles

The One Stop Solutions radiator part number 13029 is engineered to provide dependable cooling performance for select Cadillac, Chevrolet, and GMC models. Designed with precision, this radiator supports optimal engine and transmission temperatures to maintain vehicle efficiency and longevity.

• Hassle free installation with drop-in fit, form, and function
• OE performance and quality with engineering enhancements for improved cooling
• Premium grade core, tanks, tubes, and fins constructed for durability
• Includes plated transmission and engine oil coolers for integrated cooling
• Components fitted and torqued to factory specifications for reliability
• Crossflow core design with 1-row core for efficient heat dissipation
• Tested up to three times during production to ensure quality standards

Technical Specifications and Features

This radiator features a 34-inch core height, 17 1/4-inch core width, and a 1 1/4-inch core thickness, constructed with a PA core material and plastic tanks. The crossflow design enhances cooling efficiency by directing airflow horizontally across the core. Both inlet and outlet headers measure 18 1/2 inches in length and 3 3/16 inches in width, supporting inlet and outlet diameters of 1 5/16 inches and 1 9/16 inches respectively. The radiator includes plated transmission and engine oil coolers, each with fittings spaced 11 1/2 inches apart, providing integrated cooling solutions for both engine and transmission fluids.

Compatible Vehicles and Applications

This radiator is compatible with the following vehicles: Cadillac Escalade and Escalade EXT, Chevrolet Silverado 1500 and Silverado 1500 HD, GMC Sierra 1500 and Sierra 1500 HD, as well as Yukon and Yukon XL 1500 models. The part number 13029 is designed specifically to meet the cooling requirements of these trucks and SUVs, ensuring proper fit and function.

Common Issues Addressed by This Radiator

• Overheating due to worn or damaged radiator cores
• Transmission fluid overheating from inefficient oil coolers
• Leaks or cracks in plastic tanks or headers
• Reduced cooling capacity from clogged or corroded fins
• Failure of original design components leading to premature radiator wear

Installation Notes and Tips

Installation of the One Stop Solutions radiator 13029 is straightforward with a drop-in design that matches OEM specifications. All necessary fittings and hardware are included to facilitate a smooth replacement process. It is recommended to inspect hoses and clamps during installation and replace if necessary to ensure a secure, leak-free system. Proper torque specifications should be followed when securing components to maintain factory standards.

Quality Assurance and Warranty

Each radiator undergoes rigorous testing up to three times during production to verify performance and durability. The use of premium materials such as plated oil coolers and reinforced core components addresses common failure points found in original equipment. While specific warranty details are not provided, One Stop Solutions products are manufactured to meet or exceed OEM quality standards, offering reliable service life for Cadillac, Chevrolet, and GMC vehicles.
