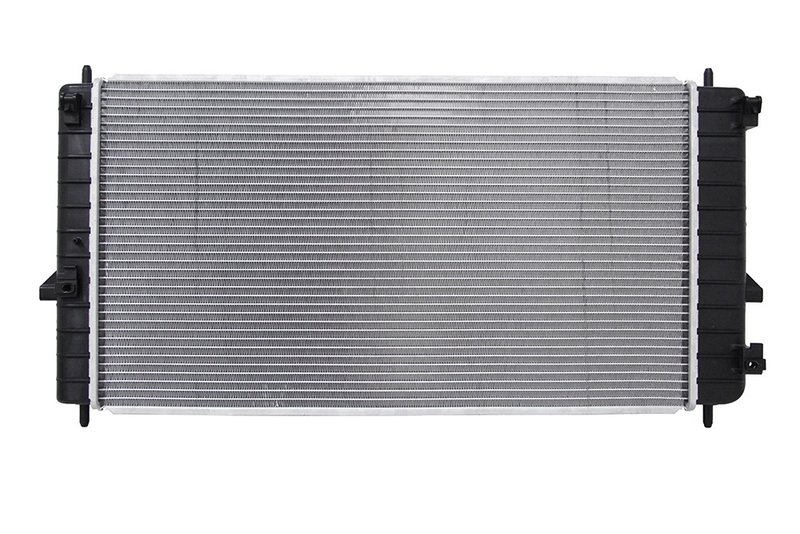

One Stop Solutions 13042 Radiator

Overview of One Stop Solutions Radiator 13042

The One Stop Solutions radiator part number 13042 is designed for reliable cooling performance in Chevrolet Cobalt, Pontiac G5, Saturn Ion, and Pursuit models. This radiator features a crossflow design with integrated transmission oil cooler to support efficient engine and transmission temperature management.

• Hassle free installation with drop-in fit, form, and function
• OE performance and quality with engineering enhancements for improved cooling
• Premium grade core materials including PA core and plastic tanks
• Includes plated transmission oil cooler with 11 1/2 inch fitting spacing
• Core dimensions: 26 3/4" height, 14 7/8" width, 5/8" thickness
• Single core row with 1 5/16" inlet and outlet diameters
• Components fitted and torqued to factory specifications
• 100% tested up to three times during production for quality assurance

Detailed Radiator Specifications and Features

This radiator is engineered with a crossflow core design measuring 26 3/4 inches in height and 14 7/8 inches in width, providing effective heat dissipation. The core thickness is 5/8 inch, constructed from PA material for durability and thermal efficiency. Plastic tanks reduce weight while maintaining structural integrity. The radiator includes a plated transmission oil cooler with fittings spaced 11 1/2 inches apart, supporting transmission fluid cooling without an engine oil cooler. Both inlet and outlet headers measure 15 1/8 inches in length and 2 inches in width, with 1 5/16 inch diameter connections to ensure proper coolant flow. This radiator is compatible with Chevrolet Cobalt, Pontiac G5, Saturn Ion, and Pursuit vehicles, making it a direct replacement part number 13042.

Compatible Vehicles and Common Applications

• Chevrolet Cobalt radiator replacement
• Pontiac G5 cooling system upgrade
• Saturn Ion radiator and transmission oil cooler
• Saturn Pursuit radiator repair or replacement
• Addressing overheating and coolant leaks in compatible models

Installation Notes and Tips

Installation of the One Stop Solutions radiator 13042 is straightforward due to its drop-in design. Ensure all fittings and hardware are included and torqued to factory specifications. Verify the transmission oil cooler connections match the 11 1/2 inch spacing. It is recommended to flush the cooling system before installation to prevent contamination. Check for proper coolant levels and inspect hoses for wear during installation.

Quality Assurance and Warranty Information

Each radiator undergoes up to three quality tests during production to ensure reliability and performance. Components such as tubes, fins, headers, and tanks are manufactured from premium materials and assembled to meet factory standards. While a cap is not included, the radiator is engineered to maintain system integrity. Warranty details should be confirmed with the distributor or manufacturer.
