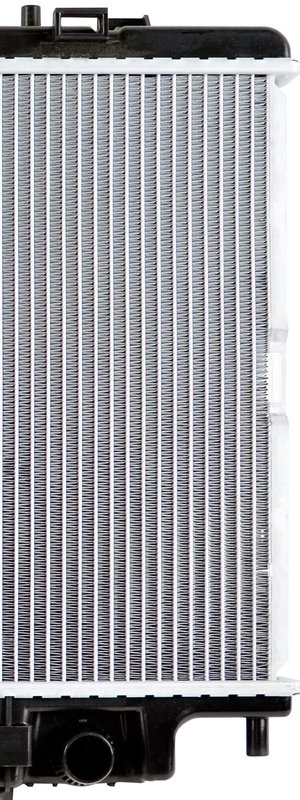

One Stop Solutions 13044 Radiator

Overview of One Stop Solutions Radiator 13044

The One Stop Solutions radiator part number 13044 is designed for reliable cooling performance in Chevrolet Caprice and Pontiac G8 vehicles. Engineered with durable materials and enhanced features, this radiator supports efficient engine temperature regulation and includes a transmission oil cooler for added functionality.

• Hassle free installation
• OE performance and exceptional quality
• Engineering enhancements for improved cooling and longer life
• Components fitted and torqued to factory specifications
• Premium grade tubes, fins, headers, and tanks
• Drop-in fit, form, and function with all necessary fittings
• 100% tested up to three times during production
• Design improvements to address original failures and enhance durability

Technical Specifications and Features

This radiator features a downflow core design with dimensions of 15 3/16 inches in height, 29 13/16 inches in width, and a core thickness of 1-9/16 inches. The core is constructed from PA material, while the tanks are made of plastic, balancing durability and weight. It includes a plated transmission oil cooler with fittings spaced 17 11/16 inches apart, supporting efficient transmission fluid cooling. The inlet and outlet diameters are both 1 3/8 inches, with header lengths of 31 inches and widths of 2 3/16 inches, ensuring compatibility with specified vehicle models. The radiator has two core rows to optimize heat dissipation.

Compatible Vehicles and Applications

This radiator is compatible with the Chevrolet Caprice and Pontiac G8 models, providing a direct replacement solution for cooling system maintenance or upgrades. It is suitable for addressing issues such as:

• Engine overheating due to radiator failure
• Transmission fluid overheating with integrated cooler support
• Leaks or cracks in original radiator tanks
• Reduced cooling efficiency from clogged or damaged cores
• Premature radiator wear from original design limitations

Installation Notes and Tips

Installation of the One Stop Solutions radiator 13044 is designed to be straightforward, with a drop-in fit that matches factory specifications. Ensure all connections, including inlet and outlet hoses, are properly secured to the 1 3/8 inch diameter fittings. Verify the transmission oil cooler lines are correctly attached to the plated cooler fittings spaced 17 11/16 inches apart. No radiator cap is included, so reuse the existing cap or source separately if needed.

Quality Assurance and Testing

Each radiator undergoes rigorous quality control, including up to three pressure tests during production to ensure leak-free performance and durability. Components are assembled and torqued to factory specifications to maintain OE standards. The product incorporates engineering enhancements aimed at resolving original design failures and extending service life. While no specific warranty information is provided, the manufacturing process emphasizes reliability and consistent performance for Chevrolet Caprice and Pontiac G8 applications.
