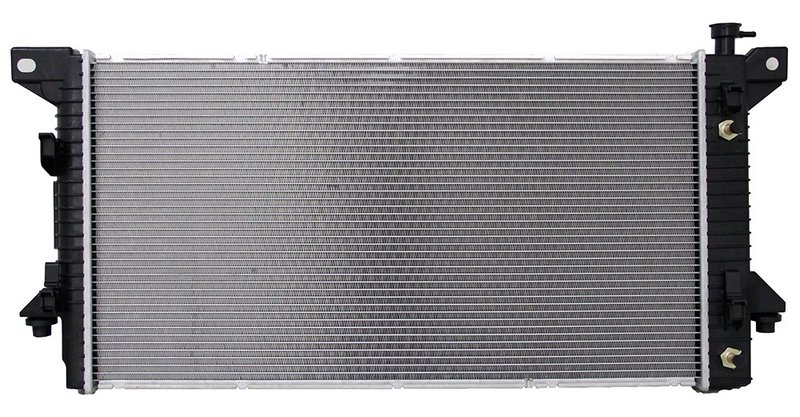

One Stop Solutions 13099 Radiator

Reliable Radiator for Ford and Lincoln Vehicles

The One Stop Solutions radiator part number 13099 is designed specifically for Ford and Lincoln models including the Expedition, F-150, F-250, Mark LT, and Navigator. Engineered to meet OE specifications, this radiator offers a crossflow design with integrated transmission oil cooler for efficient engine cooling and transmission performance.

• Hassle free installation with drop-in fit, form, and function
• Core dimensions: 31 1/2" height, 16 7/16" width, and 1-1/4" thickness
• Plastic tanks and premium grade core materials for durability
• Includes plated transmission oil cooler with 11 13/16" fitting spacing
• Crossflow core design for improved heat dissipation
• Tested up to three times during production for quality assurance
• Engineered enhancements to improve cooling efficiency and lifespan

Detailed Radiator Specifications and Features

This radiator features a single-row core constructed from premium PA material, measuring 31 1/2 inches in height and 16 7/16 inches in width, with a core thickness of 1-1/4 inches. The plastic tanks are designed to withstand typical operating conditions while maintaining a lightweight profile. Both inlet and outlet headers measure 17 3/4 inches in length and 2 11/16 inches in width, supporting inlet and outlet diameters of 1 1/2 inches and 1 9/16 inches respectively. The crossflow design enhances coolant flow and heat exchange efficiency. Additionally, the radiator includes a plated transmission oil cooler with fittings spaced 11 13/16 inches apart, supporting transmission fluid cooling needs. This radiator does not include an engine oil cooler or cap.

Compatible Vehicles and Common Applications

This radiator is compatible with the following Ford and Lincoln models:

• Ford Expedition
• Ford F-150
• Ford F-250
• Lincoln Mark LT
• Lincoln Navigator

It is designed to address common cooling system issues such as:

• Overheating due to inefficient heat dissipation
• Transmission fluid overheating
• Leaks or cracks in original radiator tanks
• Reduced cooling performance from clogged or damaged cores
• Premature radiator failure from original design limitations

Installation Notes and Tips

The One Stop Solutions radiator 13099 is engineered for a direct replacement with all necessary fittings and hardware included. Installation requires minimal modification and follows factory torque specifications for secure mounting. It is recommended to inspect hoses and clamps during installation and replace if necessary to ensure optimal sealing and performance.

Quality Assurance and Warranty Information

Each radiator undergoes rigorous testing up to three times during production to ensure durability and performance. Components are fitted and torqued to factory specifications. The radiator includes engineering enhancements aimed at improving cooling efficiency and extending service life. Warranty details should be confirmed with the distributor or manufacturer.
