One Stop Solutions 13106 Radiator

Reliable Radiator Replacement for Pontiac and Toyota Vehicles

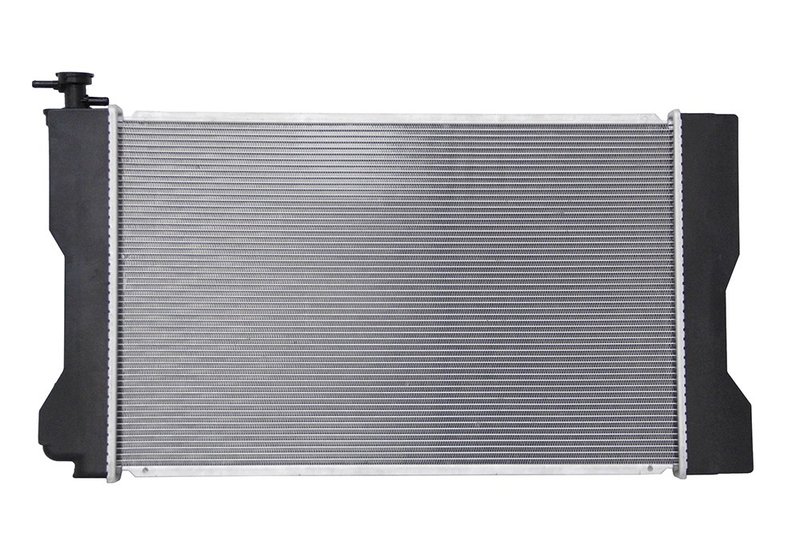

The One Stop Solutions radiator part number 13106 is designed to provide dependable cooling performance for select Pontiac and Toyota models, including the Corolla, Matrix, and Vibe. Engineered with quality materials and precise specifications, this radiator supports efficient engine temperature management and transmission oil cooling.

Key Features of One Stop Solutions Radiator 13106

• Hassle free installation with drop-in fit, form, and function
• OE performance standards with engineering enhancements for improved cooling and durability
• Premium grade core components including tubes, fins, headers, and plastic tanks
• Includes concentric transmission oil cooler with 3/4 inch diameter and 9 13/16 inch fitting spacing
• Crossflow core design with dimensions: 23 5/8" height, 14 1/2" width, and 5/8" thickness
• Core constructed from PA material with plastic tanks for corrosion resistance
• Components fitted and torqued to factory specifications for reliable operation
• 100% tested up to three times during production to ensure quality and performance

Detailed Radiator Specifications and Design

This radiator features a single-row crossflow core measuring 23 5/8 inches in height, 14 1/2 inches in width, and 5/8 inch in thickness, constructed from PA core material for effective heat dissipation. The plastic tanks provide resistance to corrosion and reduce overall weight. Both inlet and outlet diameters are 1 3/8 inches, with inlet and outlet header lengths of 15 7/8 inches and widths of 1 7/16 inches and 1 11/16 inches respectively. The included concentric transmission oil cooler enhances transmission fluid cooling, with fittings spaced 9 13/16 inches apart and a diameter of 3/4 inch. This radiator does not include an engine oil cooler or cap.

Compatible Vehicles and Common Applications

• Replacement radiator for Pontiac models requiring part number 13106
• Compatible with Toyota Corolla, Matrix, and Vibe models
• Addresses overheating issues caused by radiator core damage or clogging
• Resolves transmission fluid overheating with integrated transmission oil cooler
• Suitable for vehicles experiencing coolant leaks or reduced cooling efficiency

Installation Notes and Tips

Installation of the One Stop Solutions radiator 13106 is straightforward due to its drop-in design. Ensure all fittings and hardware are properly torqued to factory specifications. Verify compatibility with your specific Pontiac or Toyota model before installation. The radiator does not include a cap, so reuse the existing cap or source a compatible replacement. Check transmission oil cooler connections carefully to avoid leaks.

Quality Assurance and Warranty Information

Each radiator undergoes rigorous testing up to three times during production to verify performance and durability. Components are assembled and torqued to meet factory standards. One Stop Solutions provides a limited warranty covering defects in materials and workmanship, supporting reliable operation for Pontiac and Toyota vehicles equipped with this radiator.
