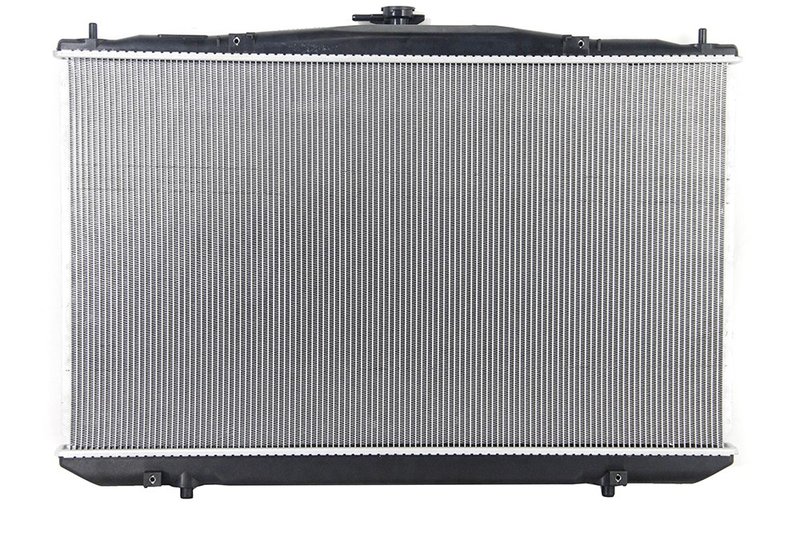

One Stop Solutions 13117 Radiator

Reliable Radiator Replacement for Lexus RX350, RX450h, and Toyota Sienna

The One Stop Solutions radiator part number 13117 is engineered to provide dependable cooling performance for Lexus RX350, RX450h, and Toyota Sienna models. Designed with precision, this radiator ensures efficient heat dissipation and supports transmission oil cooling for optimal vehicle operation.

Key Features of One Stop Solutions Radiator 13117

• Hassle free installation with drop-in fit, form, and function
• OE performance and quality with engineering enhancements for improved cooling and longer life
• Premium grade core materials including PA core and plastic tanks
• Includes a plated transmission oil cooler with fittings spaced 14 3/4 inches apart
• Core dimensions: 17 11/16" height, 30 1/8" width, and 1" thickness
• Downflow design with 1 3/8" inlet and outlet diameters
• Components fitted and torqued to factory specifications
• 100% tested up to three times during production for quality assurance

Detailed Radiator Description and Specifications

This radiator features a single-row core constructed from PA material, measuring 17 11/16 inches in height, 30 1/8 inches in width, and 1 inch in thickness, providing effective heat exchange. The plastic tanks are designed for durability and corrosion resistance. The downflow core design supports efficient coolant flow through the radiator. Both inlet and outlet headers measure 31 7/16 inches in length and 2 inches in width, with inlet and outlet diameters of 1 3/8 inches, ensuring compatibility with the vehicle's cooling system. A plated transmission oil cooler is integrated, with fittings spaced 14 3/4 inches apart, enhancing transmission fluid cooling. This radiator does not include an engine oil cooler or cap.

Compatible Vehicles and Common Applications

• Lexus RX350 radiator replacement
• Lexus RX450h cooling system upgrade
• Toyota Sienna radiator repair or replacement
• Transmission oil cooler replacement for Lexus and Toyota models
• Resolving overheating and coolant leakage issues

Installation Notes and Tips

Installation of the One Stop Solutions radiator 13117 is straightforward due to its drop-in design that matches OEM specifications. Ensure all fittings and hoses are properly connected to the 1 3/8 inch inlet and outlet ports. Verify the transmission oil cooler connections align with the 14 3/4 inch fitting spacing. Follow vehicle manufacturer torque specifications when securing components to maintain system integrity.

Quality Assurance and Testing

Each radiator undergoes rigorous testing up to three times during production to ensure reliability and performance. Components are assembled and torqued to factory specifications to maintain consistent quality. While no warranty information is provided, the product is engineered to meet OE standards and includes enhancements to address original design limitations.
