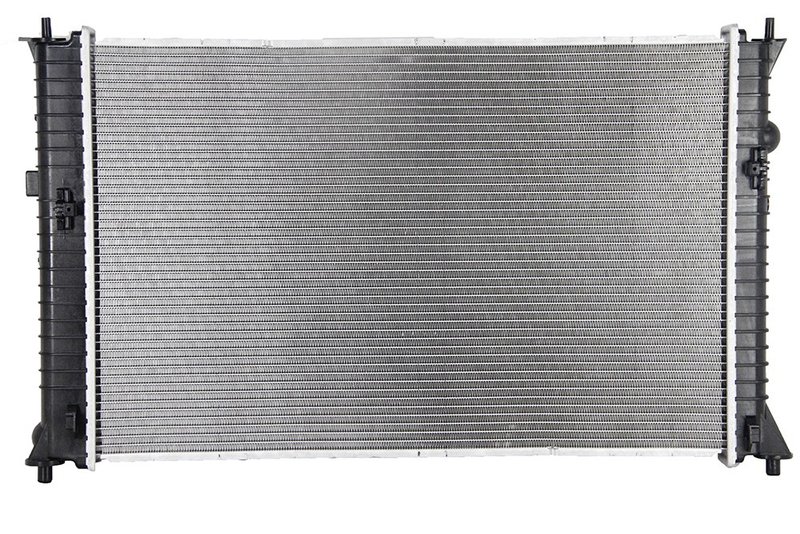

One Stop Solutions 13126 Radiator

Overview of One Stop Solutions Radiator 13126 for Ford Fusion and Mercury Milan

The One Stop Solutions radiator part number 13126 is designed specifically for Ford Fusion and Mercury Milan models. This radiator features a crossflow design with a plastic tank and a PA core material, engineered to provide reliable cooling performance and durability.

• Hassle free installation for quick replacement
• OE performance with engineering enhancements for improved cooling
• Premium grade tubes, fins, headers, and tanks for durability
• Includes a plated transmission oil cooler with fittings spaced 10 inches apart
• Drop-in fit with all necessary fittings and hardware included
• Tested up to three times during production for quality assurance
• Components fitted and torqued to factory specifications

Detailed Radiator Specifications and Features

This radiator features a core height of 25 13/16 inches, core width of 16 5/8 inches, and a core thickness of 1 inch, providing efficient heat dissipation. The crossflow core design enhances airflow and cooling efficiency. Both the inlet and outlet headers measure 18 1/8 inches in length and 2 5/16 inches in width, with 1 1/2 inch diameter inlet and outlet tubes. The radiator includes a plated transmission oil cooler but does not include an engine oil cooler. The tank is constructed from durable plastic, while the core is made from PA material, ensuring a balance of strength and weight. This radiator is engineered to address original design limitations and improve overall cooling system longevity.

Compatible Vehicles and Common Applications

This radiator is compatible with the following vehicles:

• Ford Fusion (specific model years may vary, verify fitment)
• Mercury Milan (specific model years may vary, verify fitment)

It is designed to replace factory radiators that exhibit issues such as overheating, coolant leaks, or transmission fluid temperature problems.

Common Issues Addressed by Radiator 13126

• Engine overheating due to inefficient cooling
• Coolant leaks from cracked or damaged radiator tanks
• Transmission fluid overheating with integrated transmission oil cooler
• Reduced cooling performance from clogged or corroded cores
• Premature radiator failure from original design weaknesses

Installation Notes and Tips

Installation of the One Stop Solutions radiator 13126 is straightforward with a drop-in fit design. Ensure all factory fittings and hardware are reused or replaced as necessary. Verify that the transmission oil cooler fittings align correctly with the vehicle’s transmission lines, spaced 10 inches apart. Bleed the cooling system properly after installation to avoid air pockets. No radiator cap is included, so reuse the existing cap or replace if necessary.

Quality Assurance and Warranty Information

Each radiator undergoes up to three quality tests during production to ensure reliability and performance. Components are assembled and torqued to factory specifications to maintain OEM standards. While specific warranty details are not provided, One Stop Solutions products typically meet or exceed industry standards for durability and performance.
