One Stop Solutions 13191 Radiator

Reliable Radiator Replacement for Hyundai and Kia Vehicles

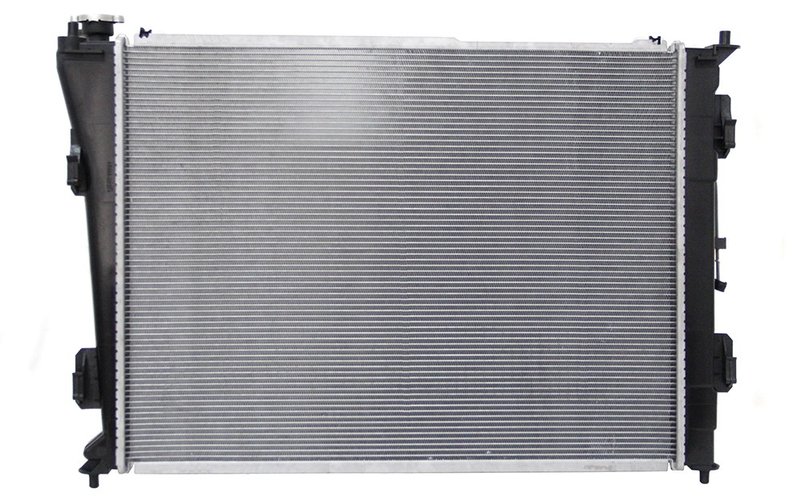

The One Stop Solutions radiator part number 13191 is designed to provide efficient cooling performance for select Hyundai and Kia models. Engineered with quality materials and precise specifications, this radiator supports optimal engine temperature management for vehicles like the Hyundai Sonata, Kia Optima, Azera, and Cadenza.

• Hassle free installation with drop-in fit, form, and function
• O.E. performance and exceptional quality components
• Engineering enhancements for improved cooling and extended service life
• Premium grade tubes, fins, headers, and plastic tanks
• Includes transmission oil cooler with concentric design
• Cap included with micro 1.1 pressure rating
• 100% tested up to three times during production
• Components fitted and torqued to factory specifications

Technical Specifications and Design Features

This radiator features a crossflow core measuring 25 1/16 inches in height, 18 5/8 inches in width, and 5/8 inch thickness, constructed from PA core material for durability. The plastic tanks are designed to withstand thermal stress while maintaining a lightweight profile. Both inlet and outlet headers measure 19 5/16 inches in length and 1 13/16 inches in width, with inlet and outlet diameters of 1 3/8 inches, ensuring compatibility with the vehicle’s cooling system.

Included is a concentric transmission oil cooler with a 7/8 inch diameter and 13 3/4 inch distance between fittings, supporting efficient transmission fluid cooling. This radiator does not include an engine oil cooler. The single-row core design balances cooling capacity with compact size, suitable for the specified Hyundai and Kia models.

Compatible Vehicles and Common Applications

This radiator is compatible with the following vehicles:

• Hyundai Sonata
• Kia Optima
• Hyundai Azera
• Kia Cadenza

It is designed to address issues such as:

• Overheating due to radiator core damage or clogging
• Coolant leaks from cracked or worn plastic tanks
• Transmission fluid overheating from faulty or missing transmission oil cooler
• Reduced cooling efficiency from bent or corroded fins
• Pressure loss caused by faulty radiator caps

Installation Notes and Tips

Installation of the One Stop Solutions radiator 13191 is straightforward due to its drop-in design. Ensure all fittings and hardware are included and torqued to factory specifications. Verify the transmission oil cooler connections are secure and free of leaks. Replace the radiator cap with the included micro 1.1 cap to maintain proper system pressure. It is recommended to flush the cooling system before installation to prevent contamination.

Quality Assurance and Warranty Information

Each radiator undergoes rigorous testing up to three times during production to ensure reliability and performance. Components are assembled and torqued to meet factory standards. The product includes a radiator cap and transmission oil cooler to provide a complete cooling solution. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
